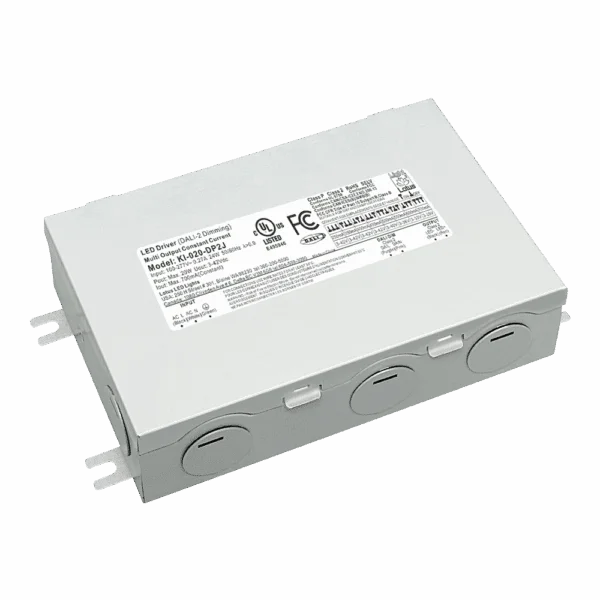

The Lotus LED Lights KI-020-DP2J is a compact, DALI-2 dimmable constant current LED driver designed for reliable control in commercial and architectural lighting systems. As part of Lotus’ programmable driver lineup, it delivers flexible output current selection via DIP switch while maintaining stable performance and high power factor.
Key Features and Benefits
- DALI-2 dimming from 1-100% enables smooth, precise light level control for energy savings and comfort.
- DIP-switch programmable output current (250-700mA) simplifies field configuration across multiple fixture types.
- Built-in protection package includes short circuit, over-voltage, over-heat, and over-load safeguards for dependable operation.
- cULus Listed Class 2, Type P design supports code-compliant installation in dry and damp locations.
- Backed by a 5-year warranty for long-term project confidence.
Specifications
- Power: 20W maximum
- Input Voltage: 120-277V AC
- Output Current: 250-700mA (±5%)
- Output Voltage: 3-42V DC
- Power Factor: >0.9 at full load
- THD: 10% at 120V; 15% at 277V (full load)
- Efficiency: 83% at full load
- No Load Voltage: 52V max
- Ambient Temperature: -40b0F to +122b0F (-40b0C to +50b0C)
- Net Weight: 0.86 lbs (0.39 kg)
Common Uses
Ideal for DALI-2 controlled constant current LED lighting in commercial interiors, retrofit projects, and new construction where programmable output and compact driver form are required. Commonly used in dry or damp environments such as offices, retail spaces, and utility areas.
