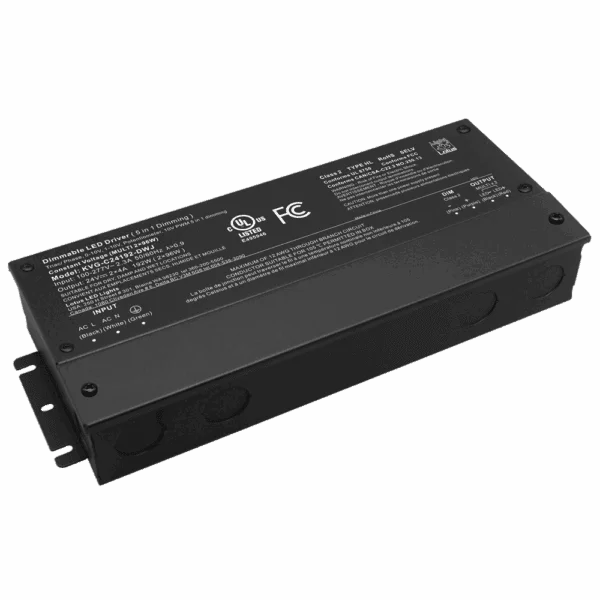

The Lotus LED Lights KVG-C24192-DWJ is a 24V constant voltage 192W driver designed for superior performance and flexibility in LED lighting installations. As a flagship in the Lotus LED driver lineup, it offers robust dimming compatibility and easy installation, making it a top choice for demanding commercial and residential projects.
Key Features and Benefits
- 5-in-1 dimming: TRIAC, ELV, MLV, 0-10V, 1-10V, Potentiometer, and 10V PWM for maximum control flexibility
- High-quality electronic design with active power factor correction for energy efficiency
- Multiple knock-outs and built-in wiring compartments for hassle-free installation
- Fast 0.5 second start time for instant illumination
- Short circuit, over-voltage, over-heat, and over-load protection for enhanced safety
- Approved for dry, damp, and wet locations
- cULus Listed, Class 2, Type HL, FCC Title 47 Class B certified
- Reliable performance with a 5-year warranty
Specifications
- Input Voltage: 120-277VAC
- Output: 24V DC, 2 x 4A
- Max Wattage: 192W (2 x 96W)
- PWM Frequency: 20kHz
- Power Factor: 0.98
- Ambient Temperature: -40°F to +140°F (-40°C to +60°C)
- Wiring Volume: 10 cu in per chamber
Common Uses
Perfect for powering LED tape lighting, 24V ceiling fixtures, and other constant voltage LED applications in both residential and commercial environments.
