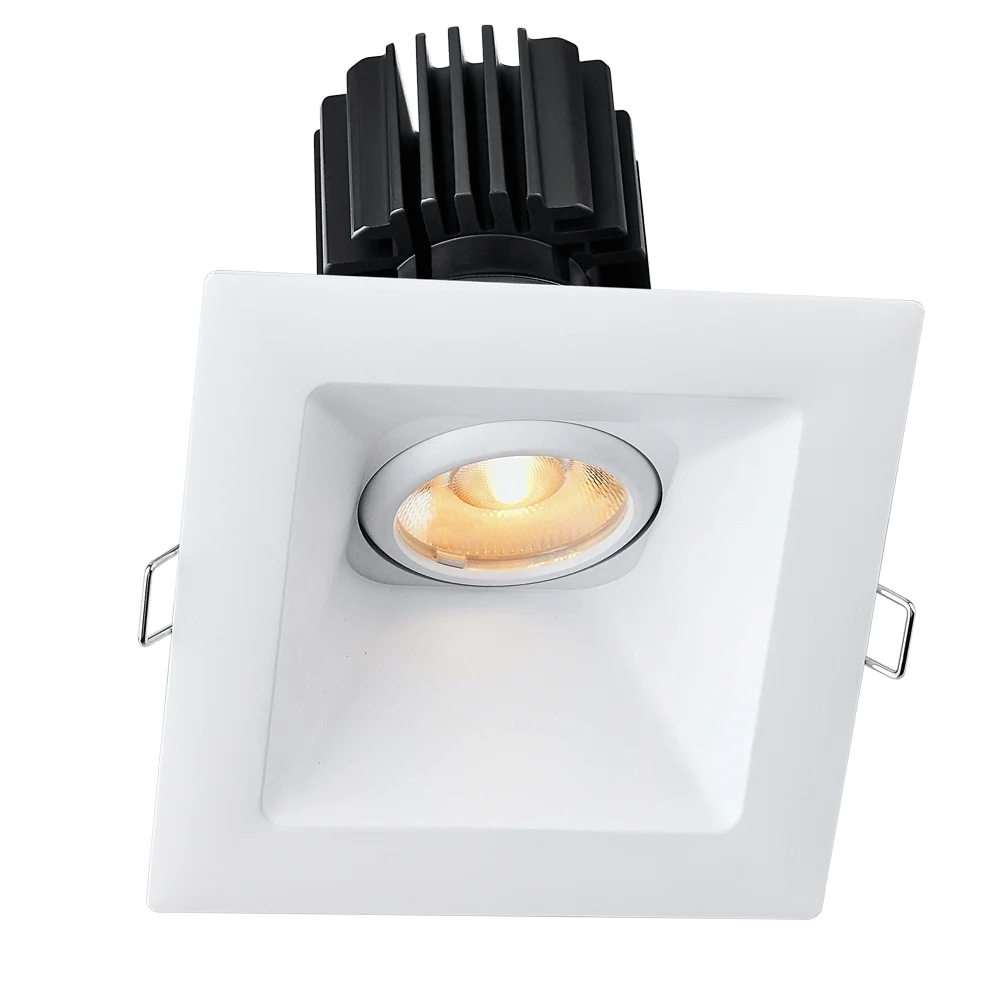

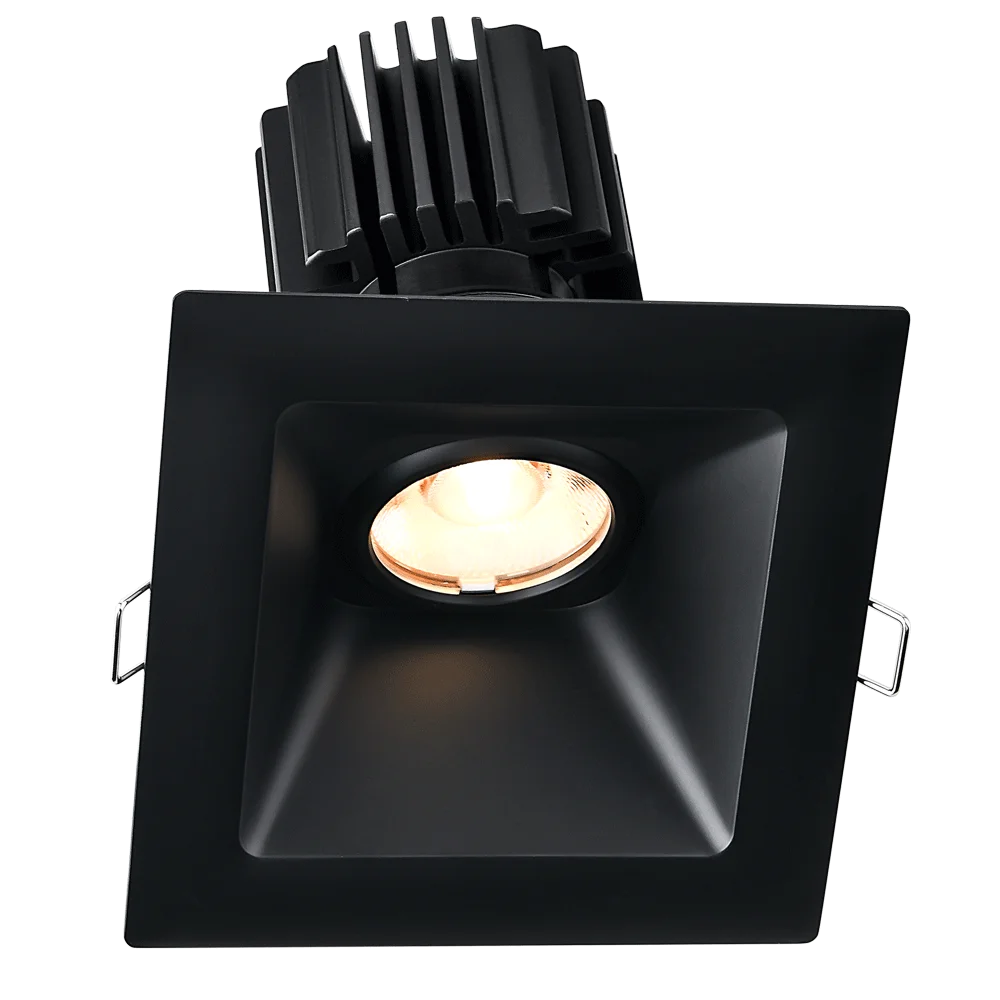

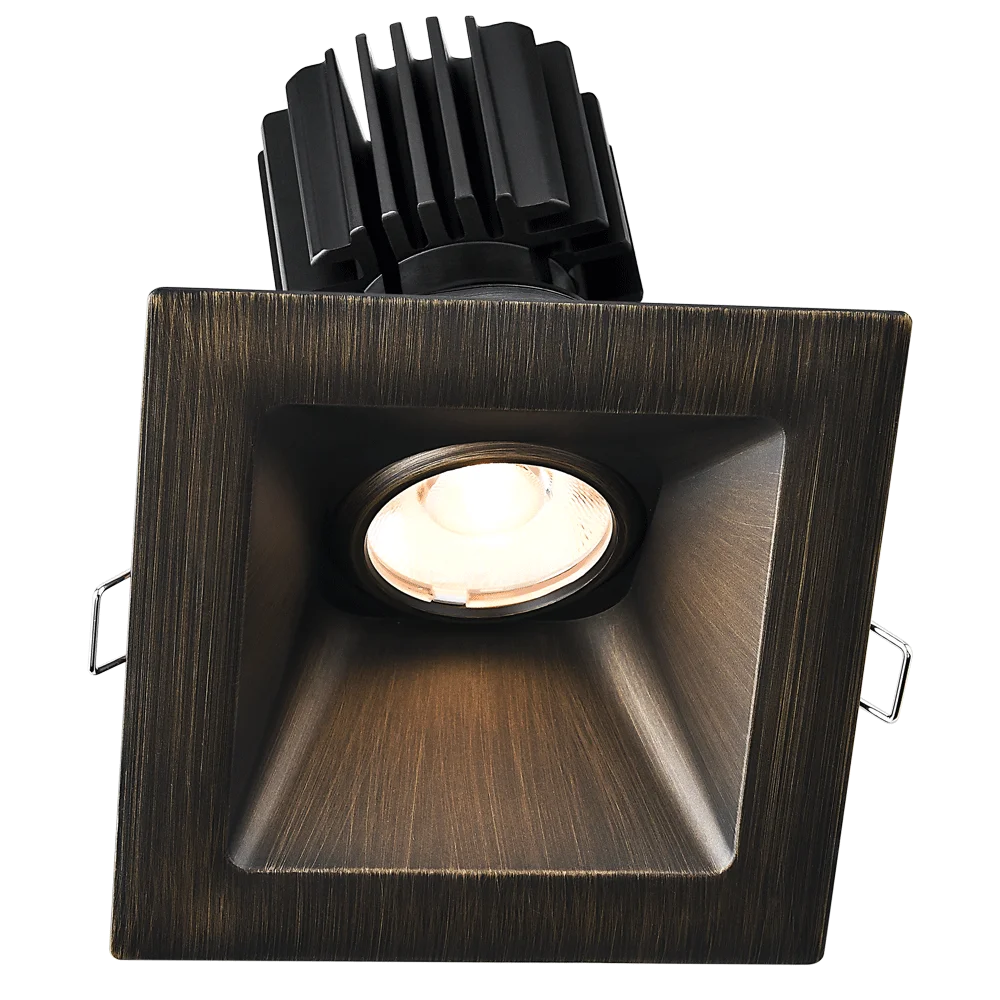

The Lotus LED Tangra L3G-SSW series is a premium 4″ gimbal square sloped wide trim fixture engineered for high-performance architectural lighting. Built with a solid cast aluminum body and advanced optics, it delivers flexible beam control and excellent color quality for residential and commercial spaces. Its modular platform supports multiple driver and optical configurations for tailored project requirements.
Key Features and Benefits
- Precision aiming with 20° tilt and full 360° rotation for directional and accent lighting
- Selectable 11W/15W operation with output up to 1600 lumens for adaptable brightness
- Ultra-high color quality options up to CRI98, including Dim-to-Warm and multi-CCT configurations
- Certified for demanding installs: cETLus, FCC, Type IC, Air Tight, Open Plenum, and Wet Location rated
- Long-term reliability with 70% lumen maintenance at 50,000 hours and extended Lotus line warranty coverage
Specifications
- Lumen Output: up to 1600
- Wattage: 11W/15W selectable
- Voltage: 120V AC (Triac driver) or 120-347V AC (0-10V driver)
- Beam Angle: 20°|24°|36°|50°|60°
- Optics options: Reflector clear glass (RC), semi-frosted (RS), frosted (RF), lens white (LW), lens black (LB)
- Color Temperature: 3000K (this configuration)
- CRI: 95
- Fixture Input: 20-40V DC, max 350mA constant current
- Min Dimming: 3% reverse phase cut / 4% forward phase cut
- Max Ambient Temperature: -40°F (-40°C) to +113°F (+45°C)
- IP Rating: IP54
Common Uses
Ideal for sloped ceilings, wall washing, and focused accent lighting in upscale homes, hospitality spaces, retail environments, and other architectural interiors requiring adjustable, high-CRI recessed illumination.
