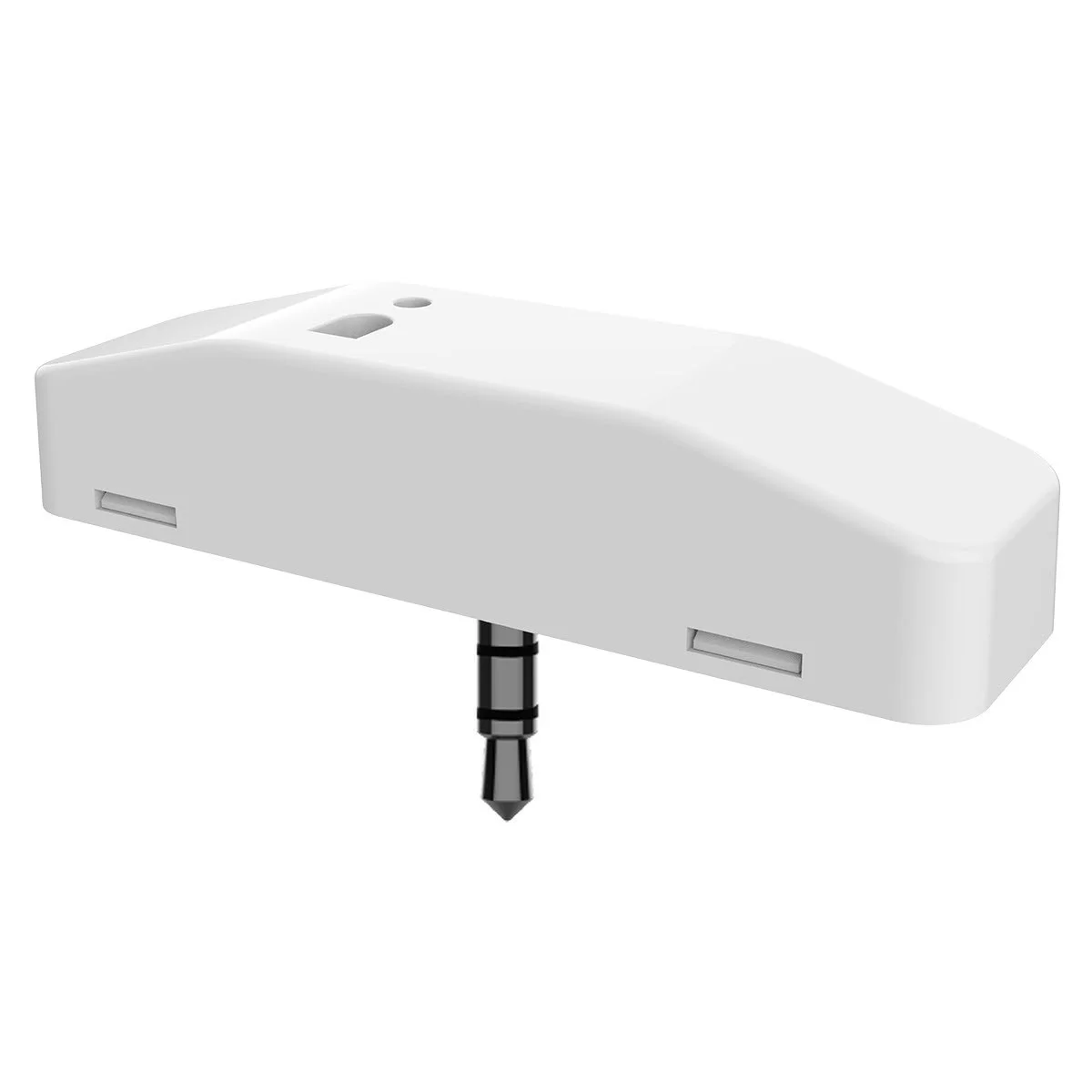

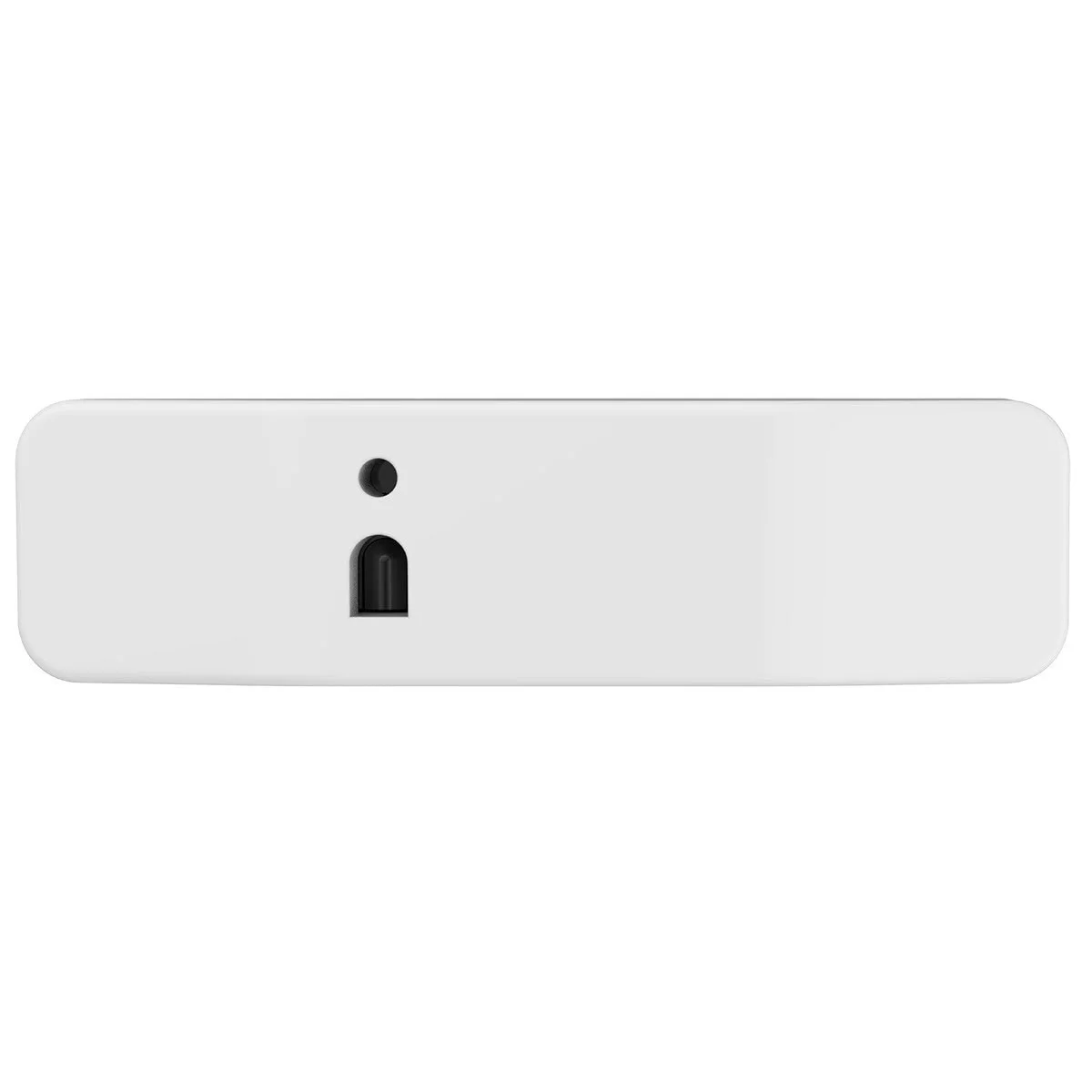

The LEDone LOC-ACY-S-MWS-01-G4 is a compact microwave motion sensor designed to add intelligent occupancy and daylight-responsive control to compatible LED fixtures. As part of LEDone’s control accessory lineup, it helps reduce energy use while improving lighting responsiveness in commercial and architectural spaces.
Key Features and Benefits
- All-in-one slim sensor combines microwave occupancy detection and daylight harvesting in a compact form.
- 0-10V dimming control enables smooth automated light level adjustment based on motion and ambient light.

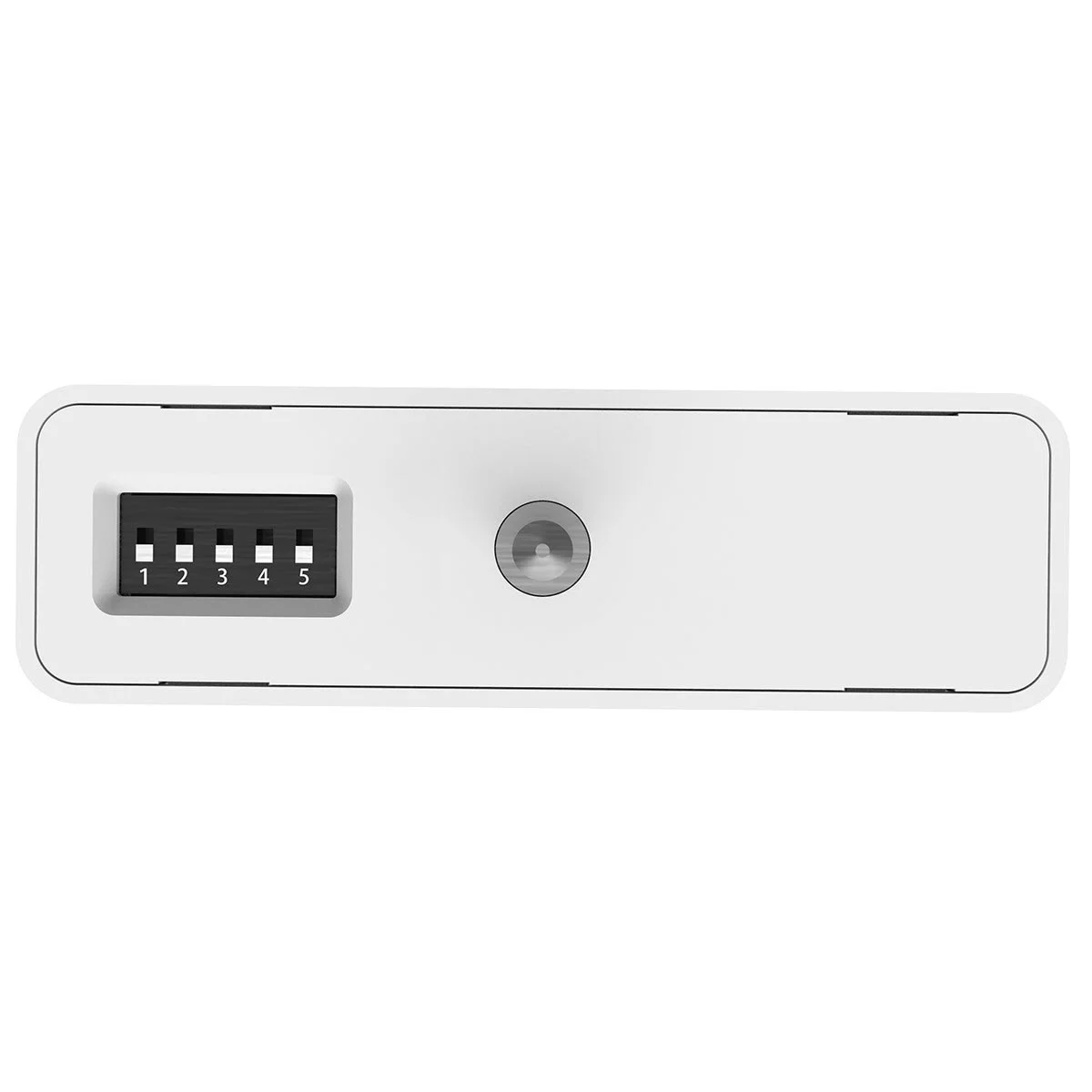

- Flexible detection behavior with configurable sensing mode, hold-time, standby period, and standby dimming level.
- Broad fixture compatibility for panel lights, track lights, strip lights, wrap fixtures, and select architectural luminaires.
- Supports optional HD05R remote control for convenient setup and commissioning.
Specifications
- Input Power: DC10-15V, <30mA
- Microwave Frequency: 5.8GHz±75MHz
- Microwave Power: <0.3mW
- Control Method: 0-10V dimming
- Detection Angle: 30-150° (without glass cover)
- Detection Range: Radius 3-7m (9.84′-22.97′)
- Maximum Mounting Height: 4m (13′)
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- Working Temperature: -25°C to 60°C
- IP Rating: IP20
Common Uses
Ideal for indoor commercial and retail environments where automatic lighting control is needed, including offices, corridors, panel-lit spaces, strip fixture installations, and architectural lighting applications.
