Compact ceiling mount PIR occupancy sensor with Bluetooth mesh, adjustable daylight harvesting, and energy-efficient 0-10V dimming.
Key Features and Benefits
- Bluetooth® mesh compliant
- Bluetooth® NLC Certified
- PIR sensing with daylight harvesting

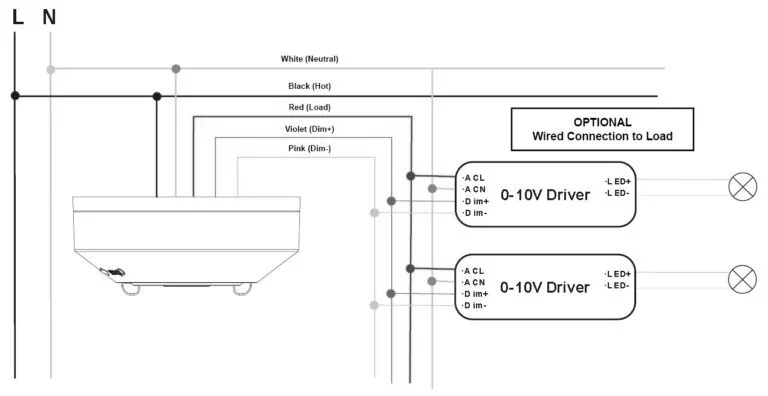

- Built-in 20mA 0-10V signal output
- Built-in 5A Relay
- On-board antenna
- Cost-effective solution for energy savings
- Energy code compliance
- Robust mesh network
- Decentralized control (no single point of failure)
- Gateway-less configuration & operations

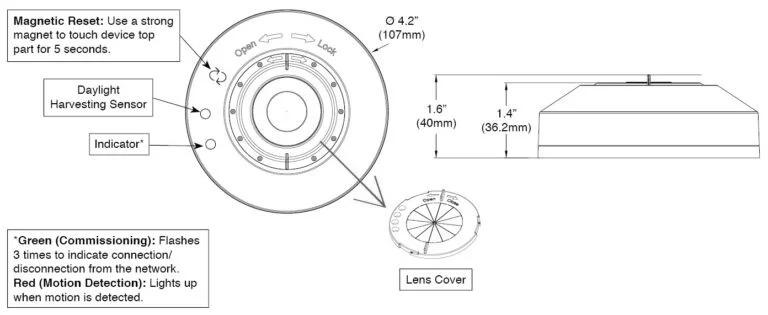

- Easy magnetic reset
Specifications
- Operating Voltage: 120-277VAC 50/60Hz
- Stand-by Power: <0.5W
- Relay Max: 5A @ 120V, 277VAC
- IP Rating: IP20
- Material: Flame-retardant/ABS
- Bluetooth Range: Max 213ft.
- Operating Temperature: -10°C ~ +50°C
- Certification: UL Listed, ENEC, CE, RED
Common Uses
Ideal for indoor applications such as open offices, individual offices, conference rooms, classrooms, retail stores, hospitals, and lobbies.
