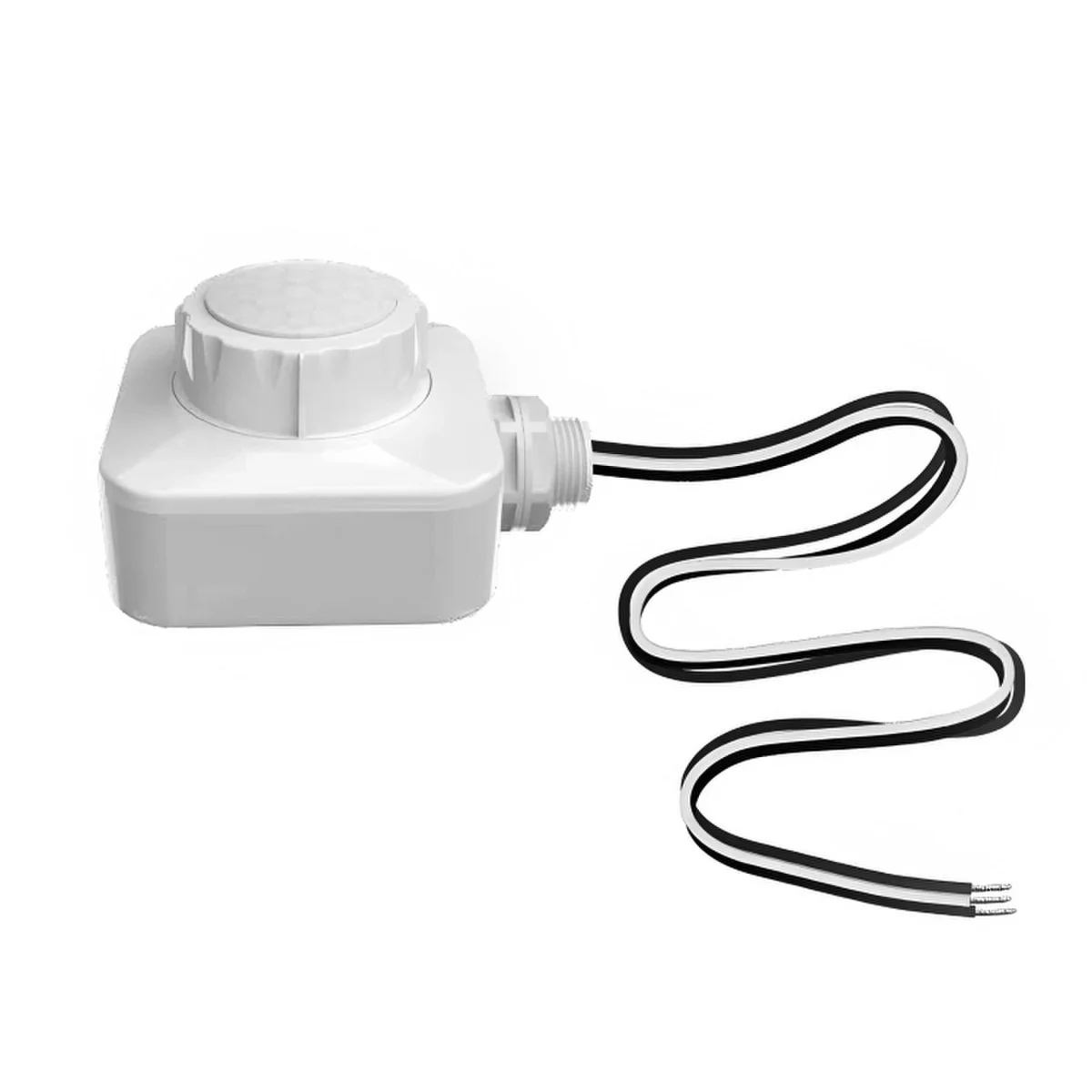

The LEDone LOC-ACY-W-MS-01-G1 is a compact On/Off motion sensor designed to add dependable occupancy control to commercial lighting systems. As part of LEDone’s control accessory lineup, it helps reduce unnecessary runtime and improve energy efficiency in high-bay and linear fixture applications.
Key Features and Benefits
- Wide 120-347V input supports common commercial electrical systems
- 360° PIR sensing pattern improves motion capture across broad areas
- Flexible installation for direct linear fixtures or UFO high bays using bracket/knockout mounting
- 5-year warranty for long-term project confidence
- Low standby power draw helps minimize idle energy use
Specifications
- Input Voltage: 120-347VAC
- Control Method: ON/OFF
- Detection Angle: 360°
- Detection Range: Radius 3-7m (9.84′-22.96′)
- Maximum Mounting Height: ≤15m (49.21′)
- Working Temperature: -20°C to +60°C
- IP Rating: IP20
- Warm-up Period: 50s
- Standby Power: ≤0.5W @ 230VAC
- Infrared Wavelength: 5-14um
- Output Signal Peak: ≥3500mV
- PIR Sensitivity: 3200V/W
Common Uses
Ideal for warehouses, utility spaces, commercial aisles, and industrial interiors where automatic On/Off control is needed. Commonly used in linear luminaires and UFO high bay fixtures to improve lighting automation and energy savings.
