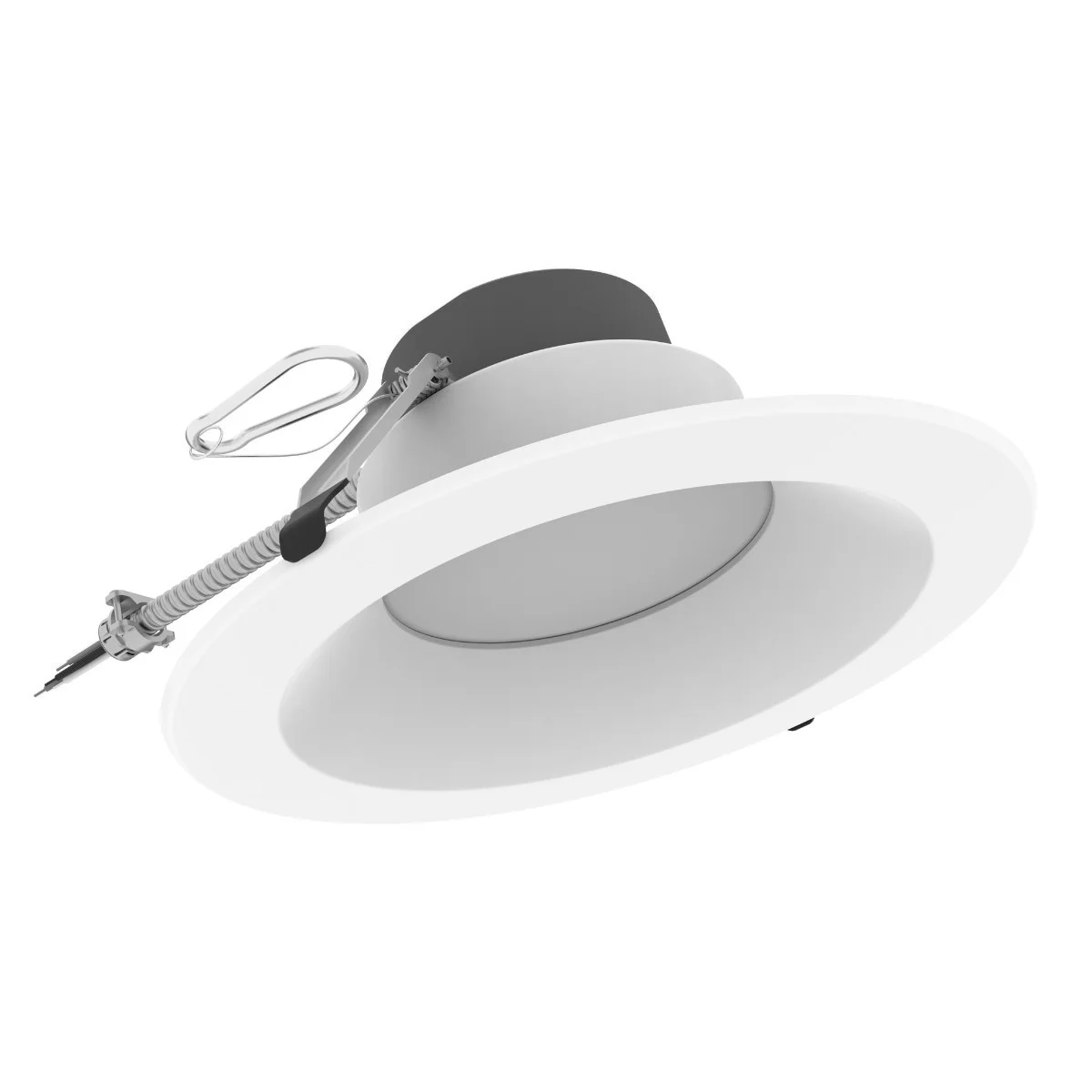

The LEDone LOC-#CDL Family Series commercial downlight is built for flexible, high-performance interior lighting across demanding commercial spaces. The LOC-10CDL-MW38W5CCT model combines field-selectable wattage and color temperature in one fixture, making it a versatile choice in LEDone’s architectural downlighting lineup.
Key Features and Benefits
- 5-level power tuning lets you match light output and energy use to each project zone.
- 5CCT adjustability supports warm to daylight tones for adaptable visual comfort.
- Tri-mode dimming compatibility (0-10V, Triac, ELV) enables broad control system integration.
- IP54 wet-location construction with aluminum heat sink and PC diffuser supports long-term reliability.
- Energy Star listed and ETL Listed for trusted compliance and performance confidence.
- Backed by a 5-year limited warranty for added peace of mind.
Specifications
- Lumen Output: 2550|2850|3200|3600|4150
- Wattage: 20W|24W|28W|32W|38W
- Voltage: 120-277V
- Color Temperature: 2700K|3000K|3500K|4000K|5000K
- CRI: 90
- Power Factor: 0.9
- THD: 7.8
- Efficacy (lm/W): 109|113|114|119|128
- Beam Angle: 95°
- Rated Life (70 Hours): 50000
- Operating Temperature: -25°C to 40°C
Common Uses
Ideal for hotels, healthcare facilities, meeting rooms, corridors, hallways, and museums, as well as other commercial retrofit or new-construction recessed downlighting applications.
