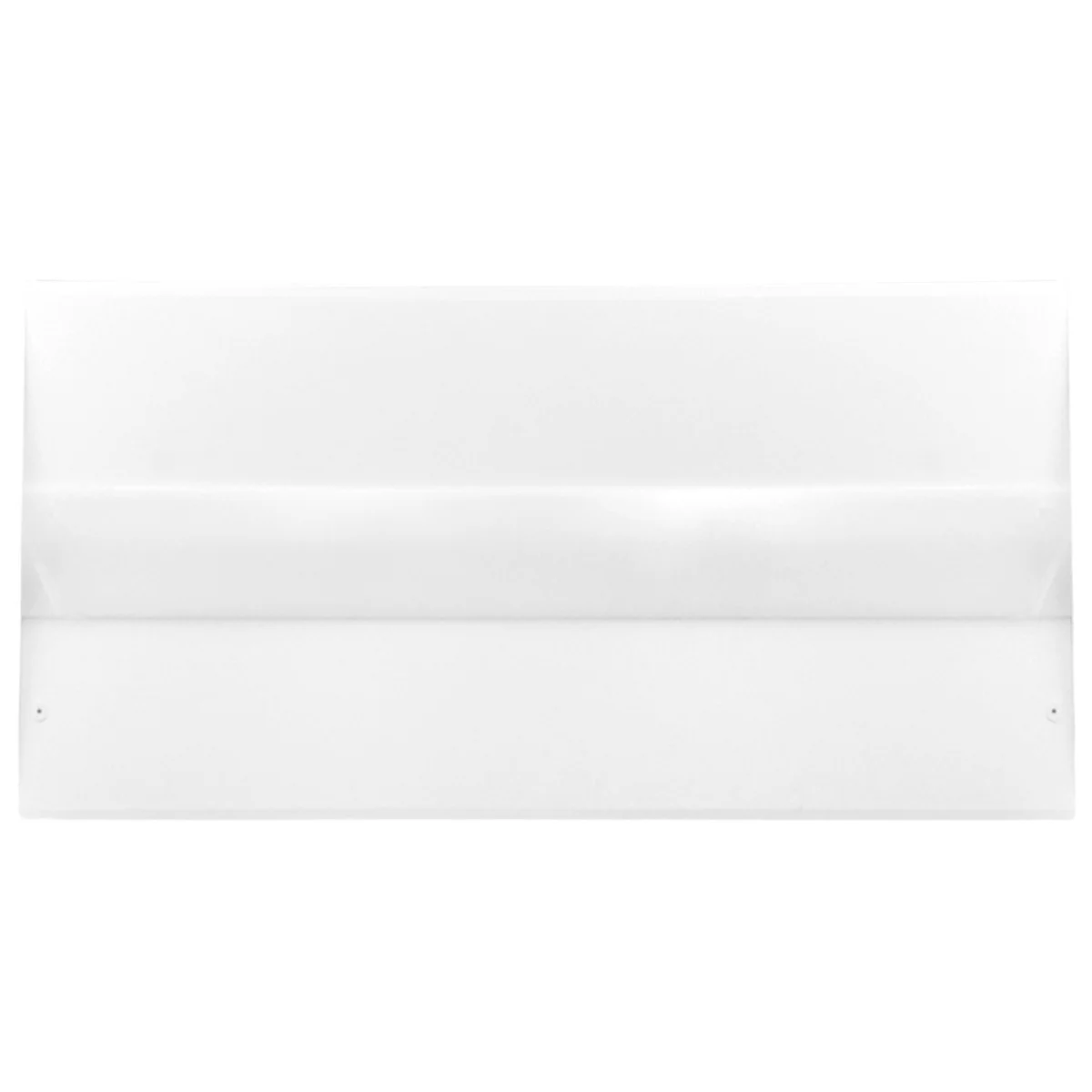

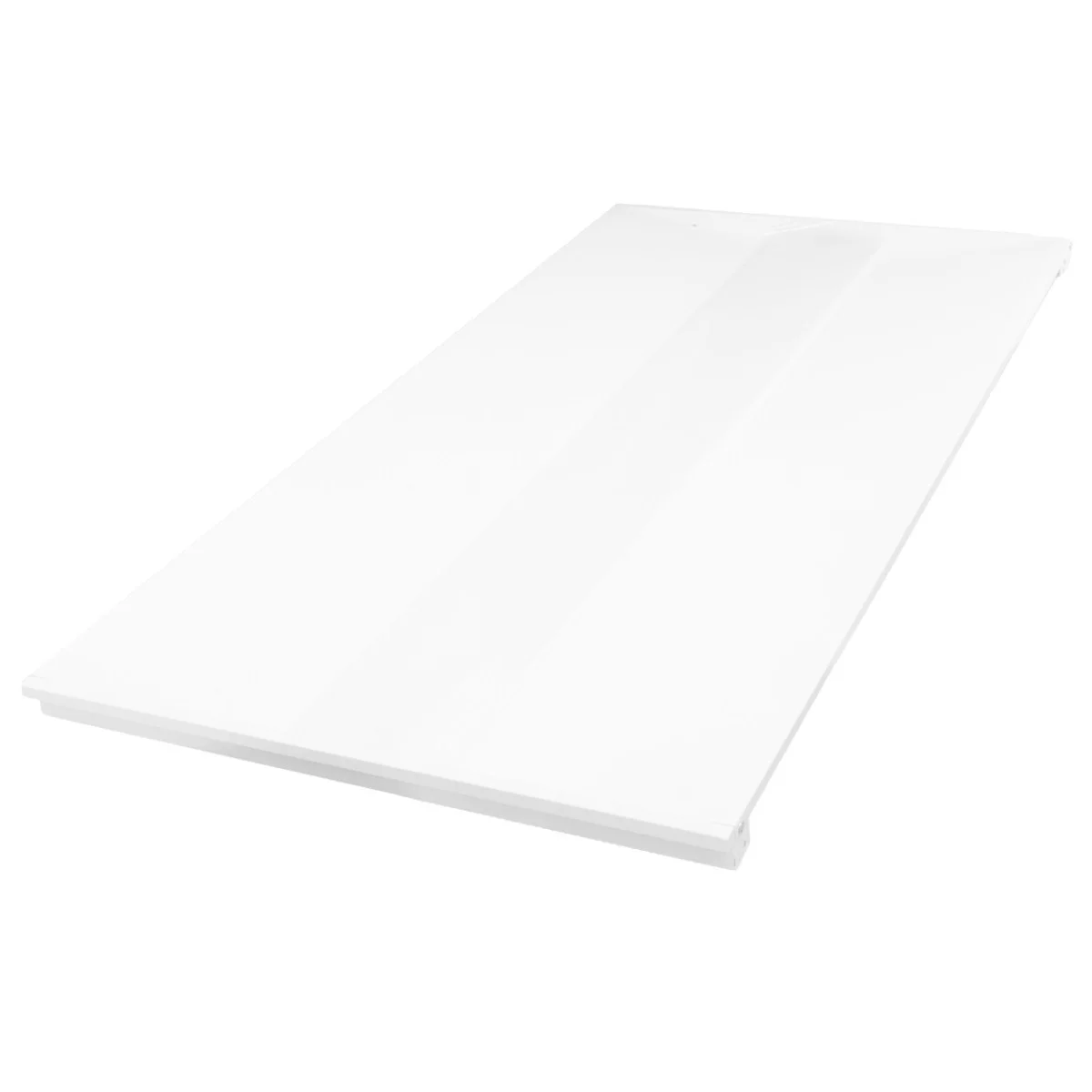

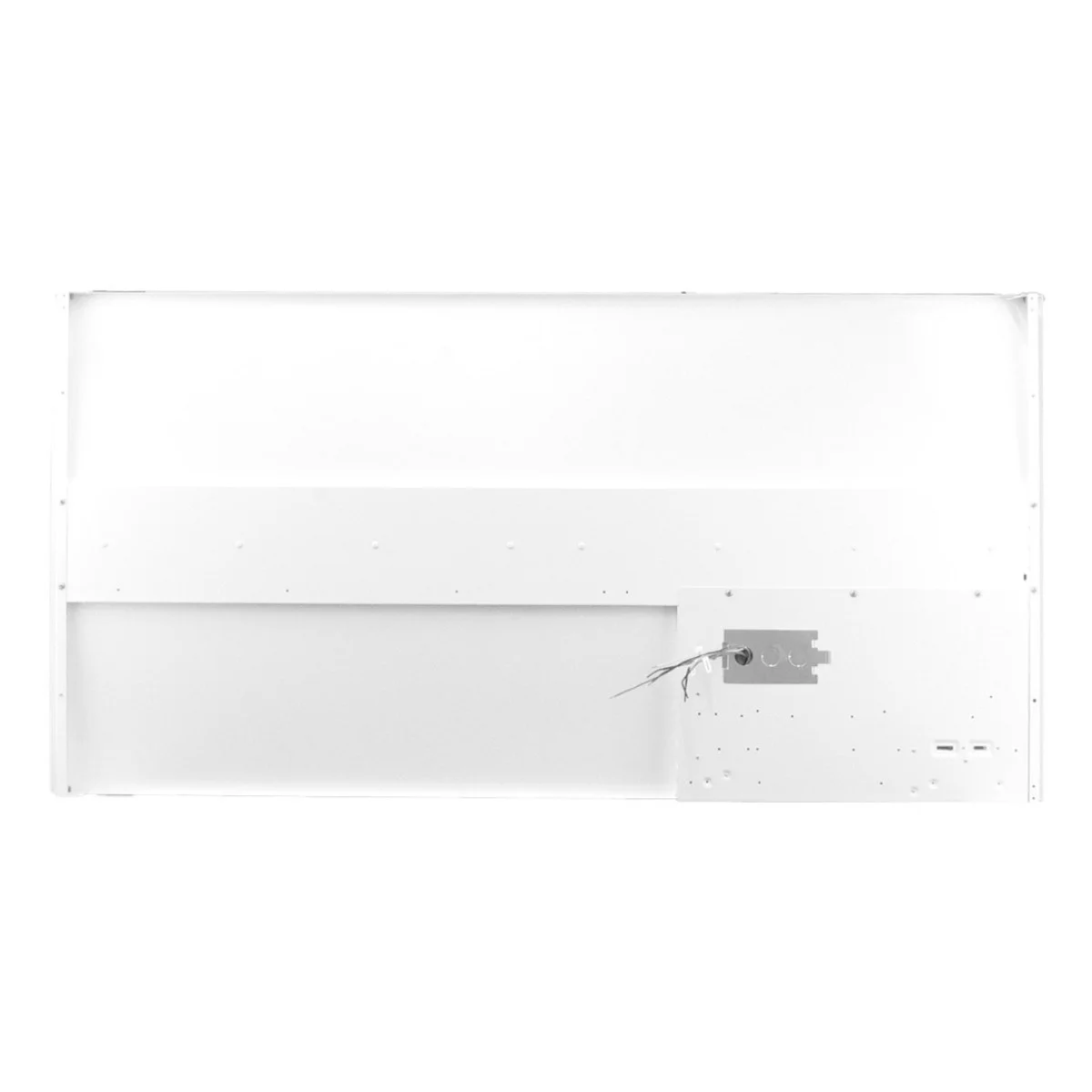

The LEDone Multi Watt Multi CCT Troffer Family delivers flexible, high-efficiency lighting for modern commercial ceilings. This 2×4 model combines field-selectable wattage and color temperature with a built-in sensor base, making it a versatile choice across retrofit and new construction projects. As part of LEDone’s troffer lineup, it is designed to simplify SKU selection while maintaining dependable performance.
Key Features and Benefits
- Selectable output in one fixture: choose 24W, 29W, 32W, or 39W to match application needs
- Tri-CCT flexibility (3500K/4000K/5000K) supports visual comfort across varied spaces
- Built-in motion sensor base helps support smarter energy use and control readiness
- Glare-free optical design with wide 110° beam for balanced illumination
- Durable steel and aluminum construction with matte white finish for long-term reliability
- DLC Premium listed and backed by a 5-year limited warranty
Specifications
- Lumen Output: 3120/3770/4160/5070
- Voltage: 120-277V
- CRI: 82
- Efficacy: 130 lm/W
- Dimming: 0-10V (1-10V stated by manufacturer)
- Power Factor: 0.9
- THD: 20%
- Rated Life: 100,000 hours
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- IP Rating: IP20
- Beam Angle: 110°
- Dimensions: 47.76″ x 23.74″ x 1.57″
- Net Weight: 11.15 lbs
Common Uses
Ideal for offices, schools, factories, supermarkets, warehouses, logistics centers, and exhibition halls where efficient, configurable general lighting is required in standard troffer ceiling layouts.
