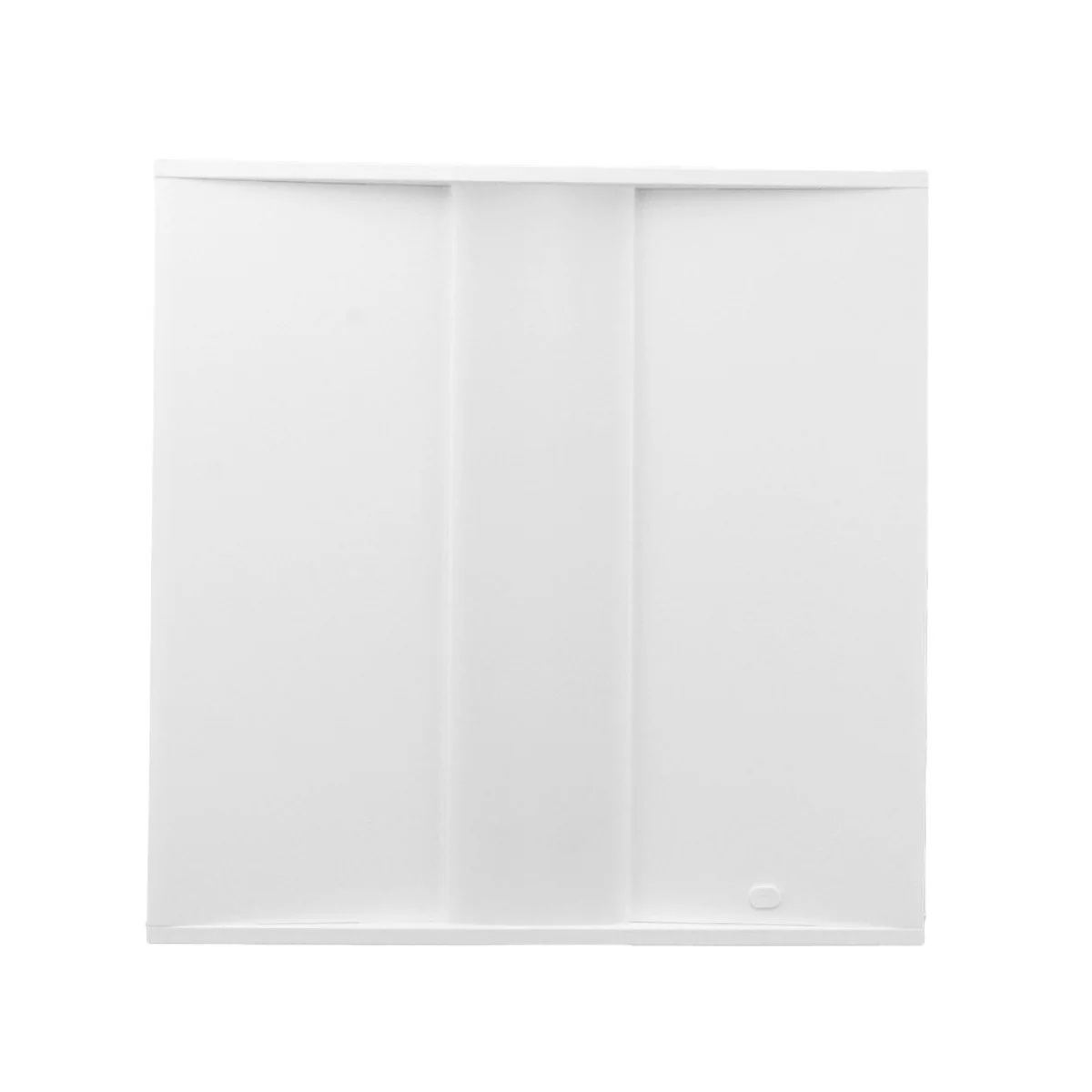

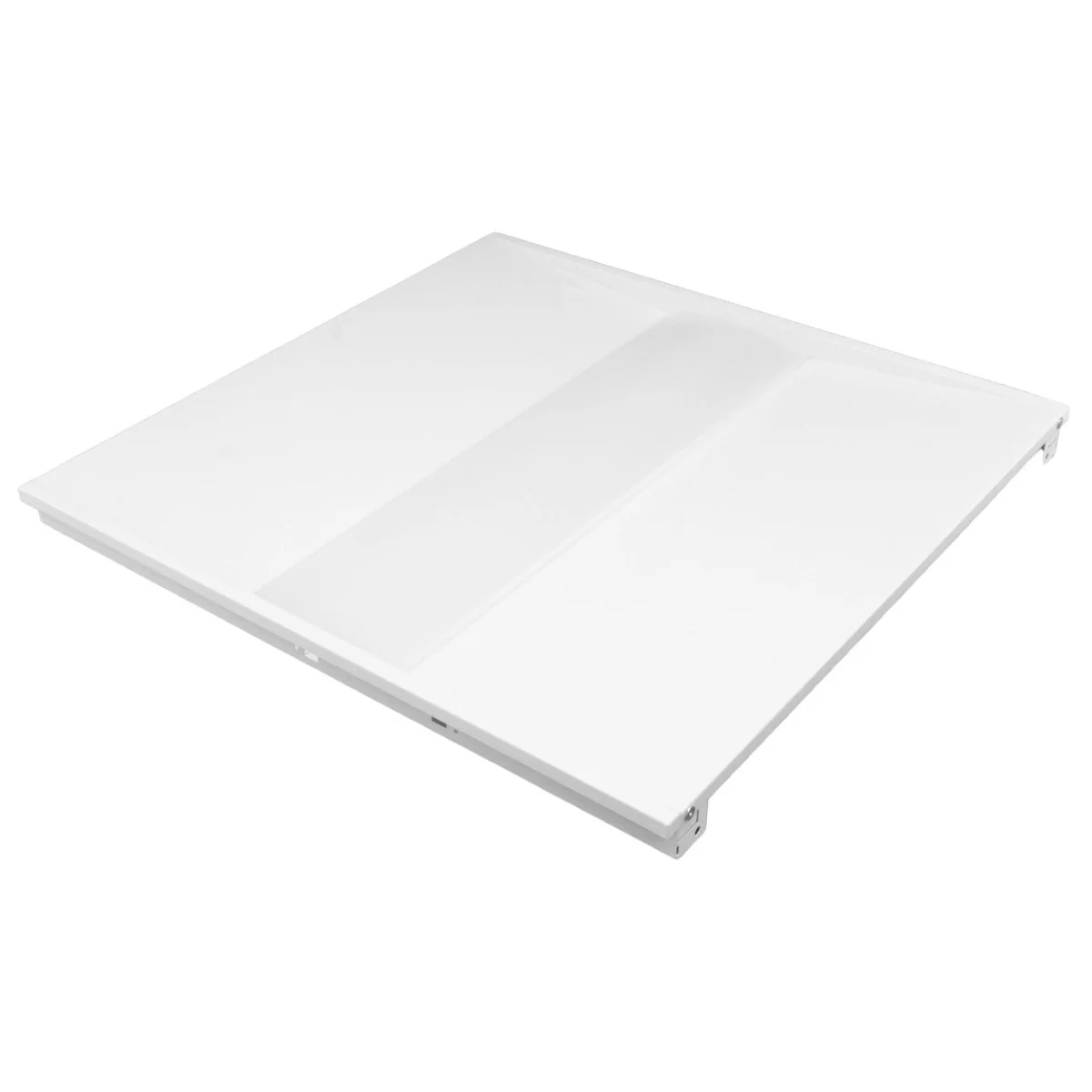

The LEDone Multi Watt Multi CCT Troffer in the LOC series is a versatile 2×2 commercial fixture designed for modern retrofit and new construction projects. With field-selectable wattage and color temperature, it helps contractors and facility teams standardize inventory while tailoring light output to each space.
Key Features and Benefits
- Field-adjustable power settings (15W/19W/24W/29W) simplify project flexibility and future reconfiguration.
- Selectable 3500K, 4000K, and 5000K CCT supports task, neutral, or daylight-style lighting preferences.
- Built-in motion sensor base enhances energy-saving control capability in occupied spaces.
- Glare-reduced optical design with 110° beam angle improves visual comfort in work environments.
- 0-10V dimming compatibility enables smooth light level control with common LED dimming systems.
- DLC Premium listed and backed by a 5-year limited warranty for confidence in commercial applications.
Specifications
- Lumen Output: 1950/2470/3120/3770
- Input Voltage: 120-277V
- CRI: 82
- Efficacy: 130 lm/W
- Power Factor: 0.9
- THD: 20%
- Rated Life: 100,000 hours
- Operating Temperature: -20°C to 60°C (-4°F to 140°F)
- IP Rating: IP20
- Fixture Dimensions: 23.74″ x 23.74″ x 1.57″
- Net Weight: 7.4 lbs
Common Uses
Ideal for warehouses, schools, factories, offices, supermarkets, logistics centers, and exhibition halls. It is suitable for recessed installations and can also be used with optional surface-mount kits where grid access is limited.
