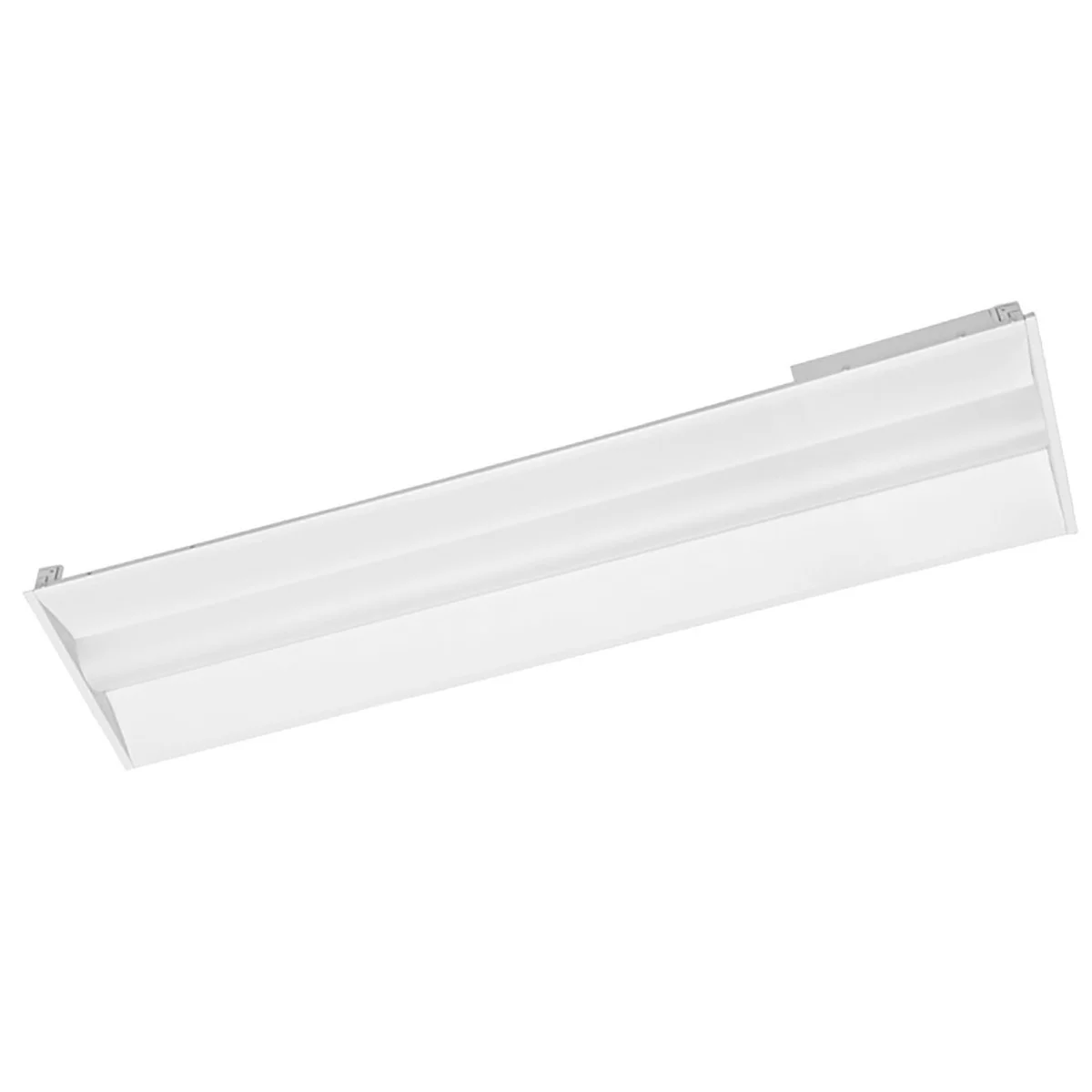

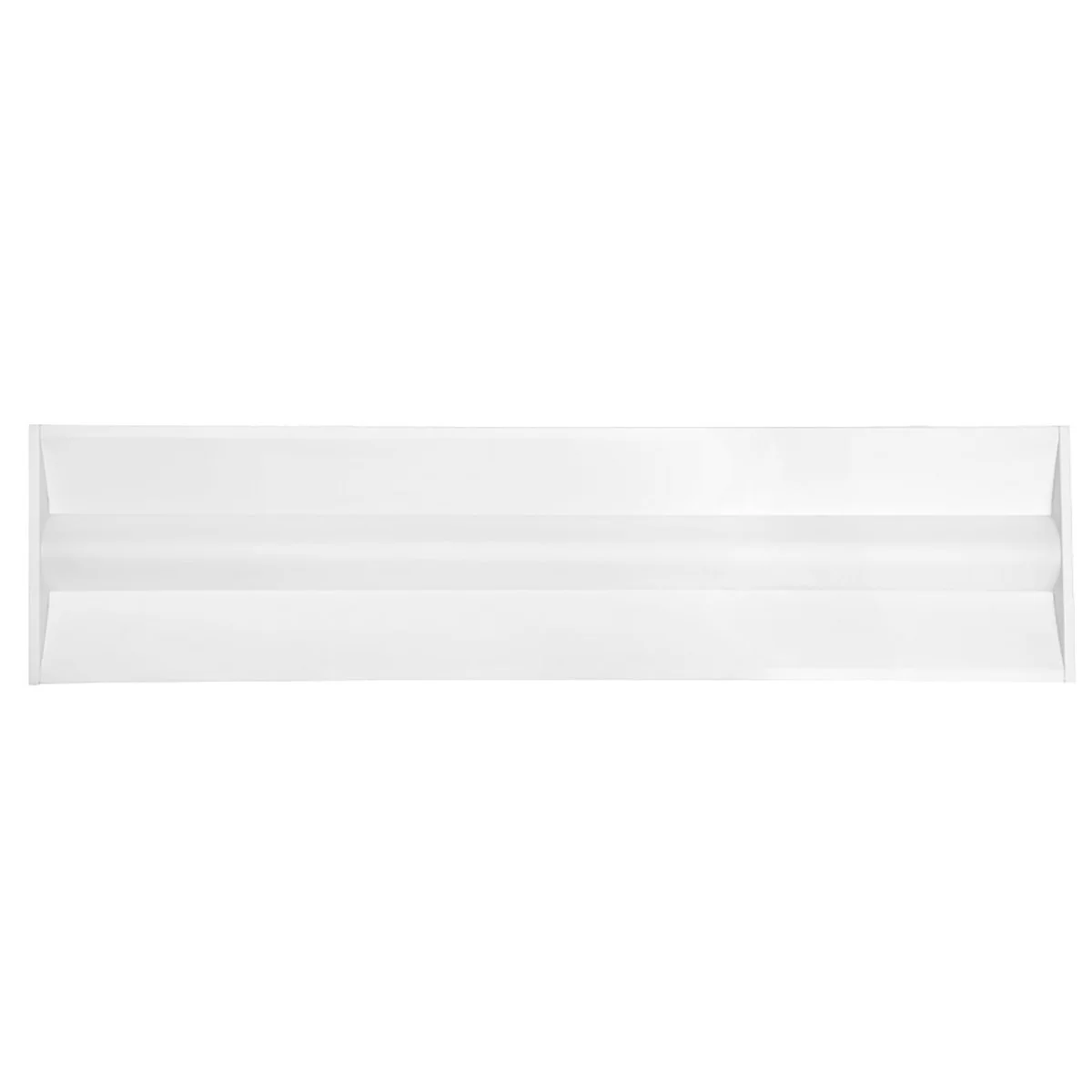

The LEDone LOC-14TROF series is a versatile 1×4 LED troffer designed for modern commercial interiors requiring flexible output and color tuning. As part of LEDone’s Multi Watt Multi CCT Troffer Family, it combines field-selectable performance, long life, and clean glare-controlled illumination for retrofit and new construction applications.
Key Features and Benefits
- Field-selectable power settings let you match light levels while helping reduce energy use.
- Selectable 3500K/4000K/5000K CCT supports varied visual tasks and space aesthetics.
- Built-in sensor base streamlines control-ready installations for smarter lighting layouts.
- Durable steel and aluminum housing uses the fixture body as a heat sink for improved thermal management.
- UL Listed and DLC Premium listed for trusted compliance and utility rebate potential.
- Backed by a 5-year limited warranty for dependable long-term operation.
Specifications
- Lumen Output: 1950/2470/3120/3770
- Wattage: 15W/19W/24W/29W
- Input Voltage: 120-277V
- CRI: 82
- Efficacy: 130 lm/W
- Beam Angle: 110°
- Power Factor: 0.9
- THD: 20%
- IP Rating: IP20
- Rated Life: 100000 hours
- Operating Temperature: -20°C to 60°C
- Dimensions: 47.76″ x 11.93″ x 1.55″
Common Uses
Ideal for offices, schools, factories, supermarkets, logistics centers, warehouses, and exhibition halls where efficient, tunable, low-glare general lighting is required.
