LED Small Non-Cutoff Wall Pack with Photocell
The LED Small Non-Cutoff Wall Pack with Photocell is a versatile lighting solution ideal for various outdoor applications. Measuring 5.83″(H) x 9.64″(W) x 5.1″(D), this wall pack offers selectable color temperature (3000K, 4000K, 5000K) and adjustable lumen outputs (1020LM, 1530LM, 1700LM).
Key Features and Benefits
- Multi Color Temperature & Multi Power/Wattage (Selectable)
- Waterproof-Sealed Glass Lens
- Non-Cutoff Optics Ideal for Maximum Light Distribution
- IP65 Rated for Robust Outdoor Use
- 7-Year Warranty for Peace of Mind
- Durable Die-Cast Aluminum Back Plate
- 0-10V Dimming for Customized Lighting
Specifications
- Voltage: 120-277V AC 60Hz
- Wattage: 12W/18W/20W
- Power Factor: >0.90
- Efficacy: 85LM/W
- LED Type/Brand: 2835 LUMILEDS
- Total Lumens: 1700LM
- Color Temperatures: 3000K/4000K/5000K
- Color Rendering Index: CRI >= 70
- Beam Angle: 100°
- Rated life: 70,000 Hours
- Operating Temperature: -4ºF to +113ºF

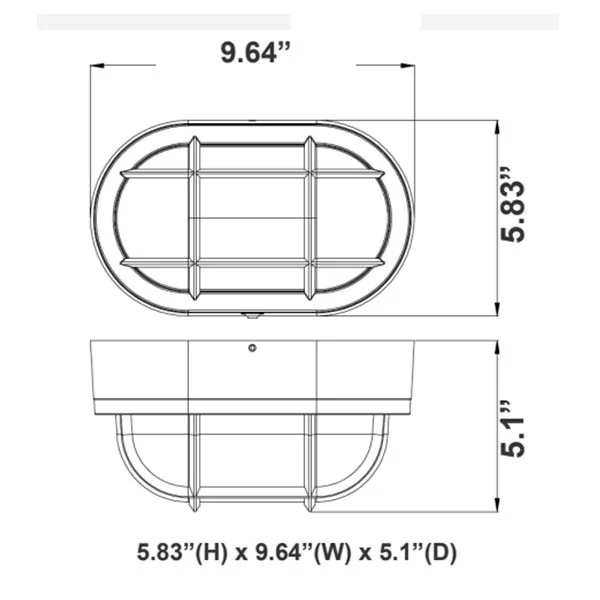

- Dimensions: 5.83″(H) x 9.64″(W) x 5.1″(D)
Common Uses
Perfect for general site lighting, loading docks, doorways, pathways, and parking areas. Also suitable for entrance lighting, courtyard lighting, industrial areas, outdoor landscapes, building facades, hotels, and wall lighting applications.
