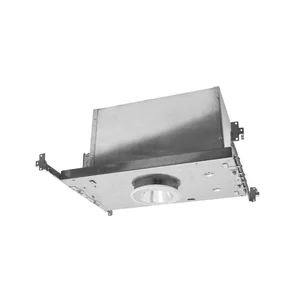

3.5” IC Airtight and Non-IC Type LED Round Architectural Downlight featuring a 30° angle cut wall wash reflector. Offers selectable color temperatures and adjustable lumen outputs for versatile lighting solutions.
Key Features and Benefits
- Interchangeable reflectors for different beam distributions.
- Minimum trim reveals are 0.12” thick.
- Multiple reflector distribution patterns including pinhole trim with Narrow Spot, Narrow beam, Medium beam, and Wide beam.
- Designed for ceiling thickness up to 1-1/4”.
- Adjustable trims allow engine to be angled 0°~30° tilt with a 356° rotation for precise, lockable aiming.
- Wall Wash trim with angled slope reflector and molded spread lens for great uniformity.
- Dimming capability standard with 0-10V dimmer switches.
- Optional Lutron Hi-lume 1% LED drivers available for flicker-free, smooth, continuous dimming down to 1%.
- ICED9535 luminaire is listed as Type IC and suitable for direct contact with insulation.
- Certified to IESNA LM-79 and LM80 standards.
- cETLus Listed.
Specifications
- Input Voltage: 120~277VAC
- Wattage: 10W
- Lumen Output: 845 lumens
- Efficacy: 84.5 LPW
- Color Temperature: 2700K, 3000K, 3500K, 4000K
- CRI: 80, 90
- Dimming: 0~10V, ELV & TRIAC
- Lifespan: 5 years or 50,000 hours
- Environment: Damp Location & optional Wet Location
Common Uses
Ideal for architectural lighting applications, including commercial, residential, and institutional settings where precise and adjustable lighting is required.
