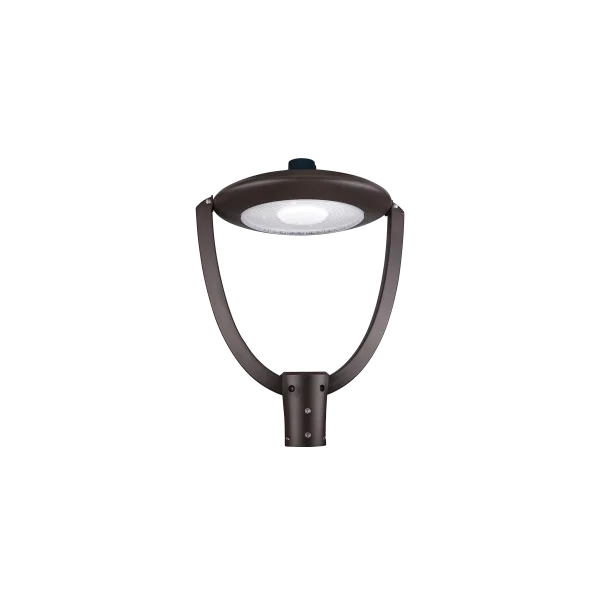

LED Pole Top luminaire with selectable color temperatures (3000K, 4000K, 5000K) and adjustable lumen outputs (20,602/18,285/13,083 lm).
Key Features and Benefits
- Controls Ready with screw-in receptacle for 3-pin twist-lock NEMA photocell receptacle with shorting cap included
- PowerSet feature for multiple lumen stops
- FieldCCeT feature for multiple color temperature settings
- High efficacy up to 140 lm/W
- UL listed for US & Canada, RoHS Compliant, FCC Compliant, ICES-005 Compliant, IP65 Rated
- DesignLights Consortium® Premium Qualified
Specifications
- Input voltage: 120-347V
- 0-10V dimming, dim-to-off
- Surge Protection: 6kV included
- Power factor: >0.9
- THD: <20%
- Operating temperature: -40°F to 113°F (-40°C to 45°C)
- Matte black die-cast aluminum housing
- Polycarbonate lens
- Estimated L70: 100,000 Hours
- CRI: >80
- 5-Year limited warranty
Common Uses
Parking Areas, Roadways, Campuses, Streetscapes, Parks, Area security lighting
