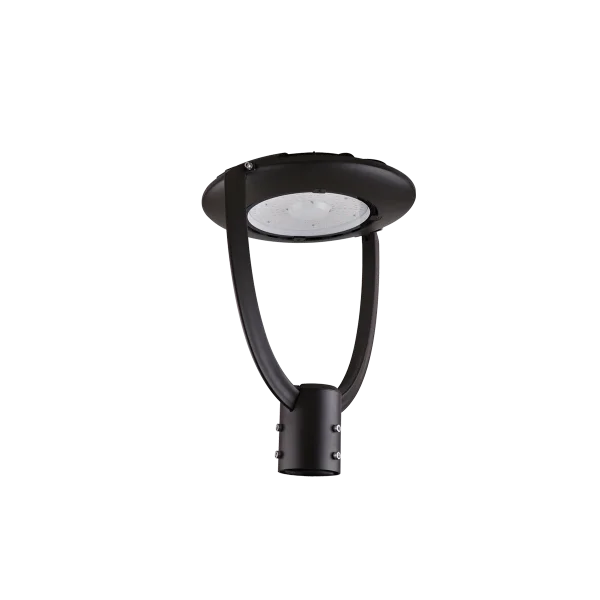

100/80/60W LED Pole Top with selectable color temperature (3000/4000/5000K) and adjustable lumen outputs (12,698/10,460/8124 lm).
Key Features and Benefits
- Modern twist on everyday pathway fixtures
- Controls Ready with screw-in receptacle for 3-pin twist-lock NEMA photocell
- PowerSet feature allows for multiple lumen stops
- FieldCCeT feature provides multiple color temperature settings
- UL listed for US & Canada
- RoHS Compliant
- FCC Compliant
- ICES-005 Compliant
- IP65 Rated
- DesignLights Consortium® Premium Qualified
Specifications
- High Efficacy, up to 130 lm/W
- Power-selectable 100/80/60W
- Field-selectable 3000/4000/5000K
- CRI: >80
- Estimated L70: 100,000 Hours
- Input voltage: 120-347V
- 0-10V dimming, dim-to-off
- Surge Protection: 6kV included
- Power factor: >0.9
- THD: <20%
- Operating temperature: -40°F to 122°F (-40°C to 50°C)
- Matte black die-cast aluminum housing
- Glass protective lens
Common Uses
Parking Areas, Roadways, Campuses, Streetscapes, Parks, Area security lighting
