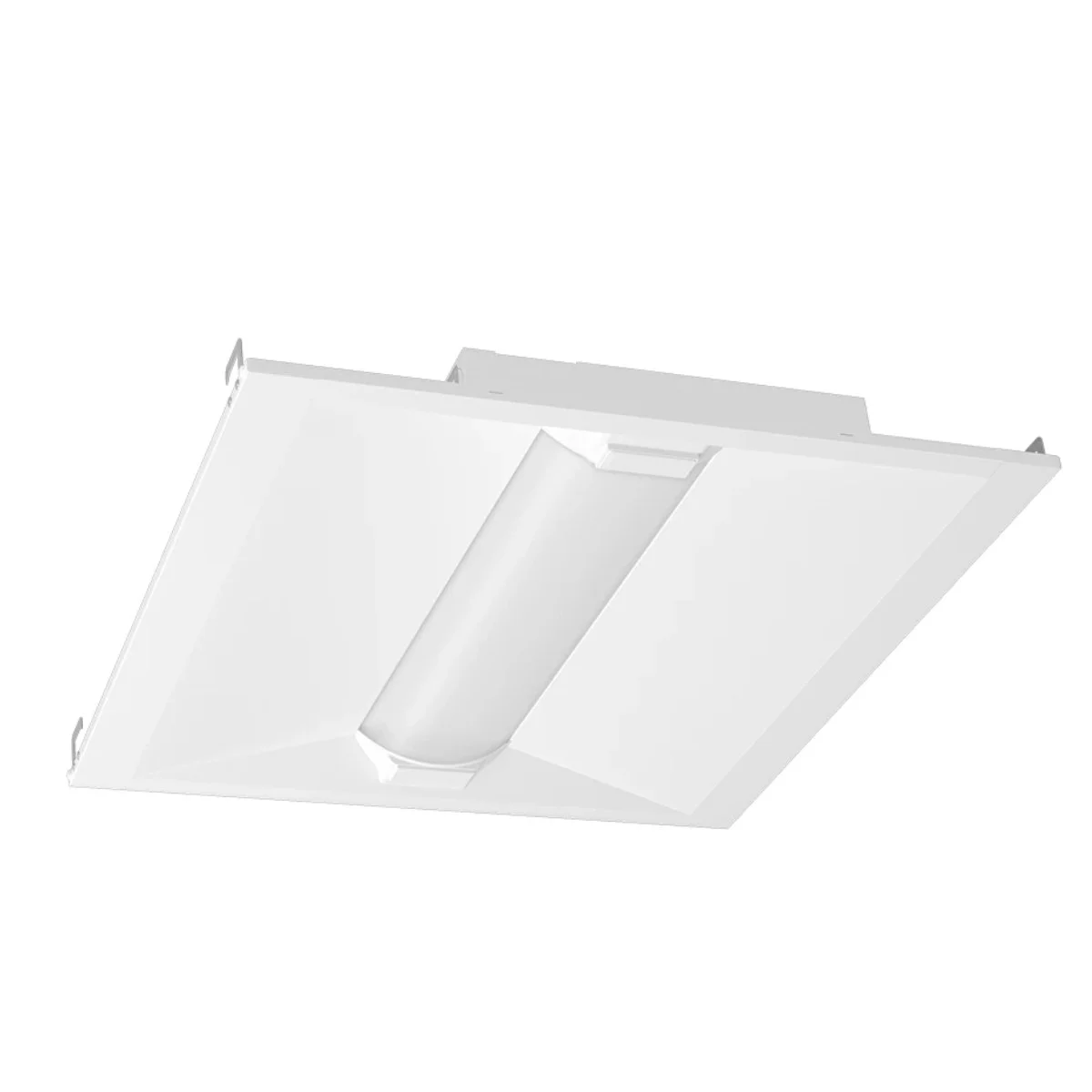

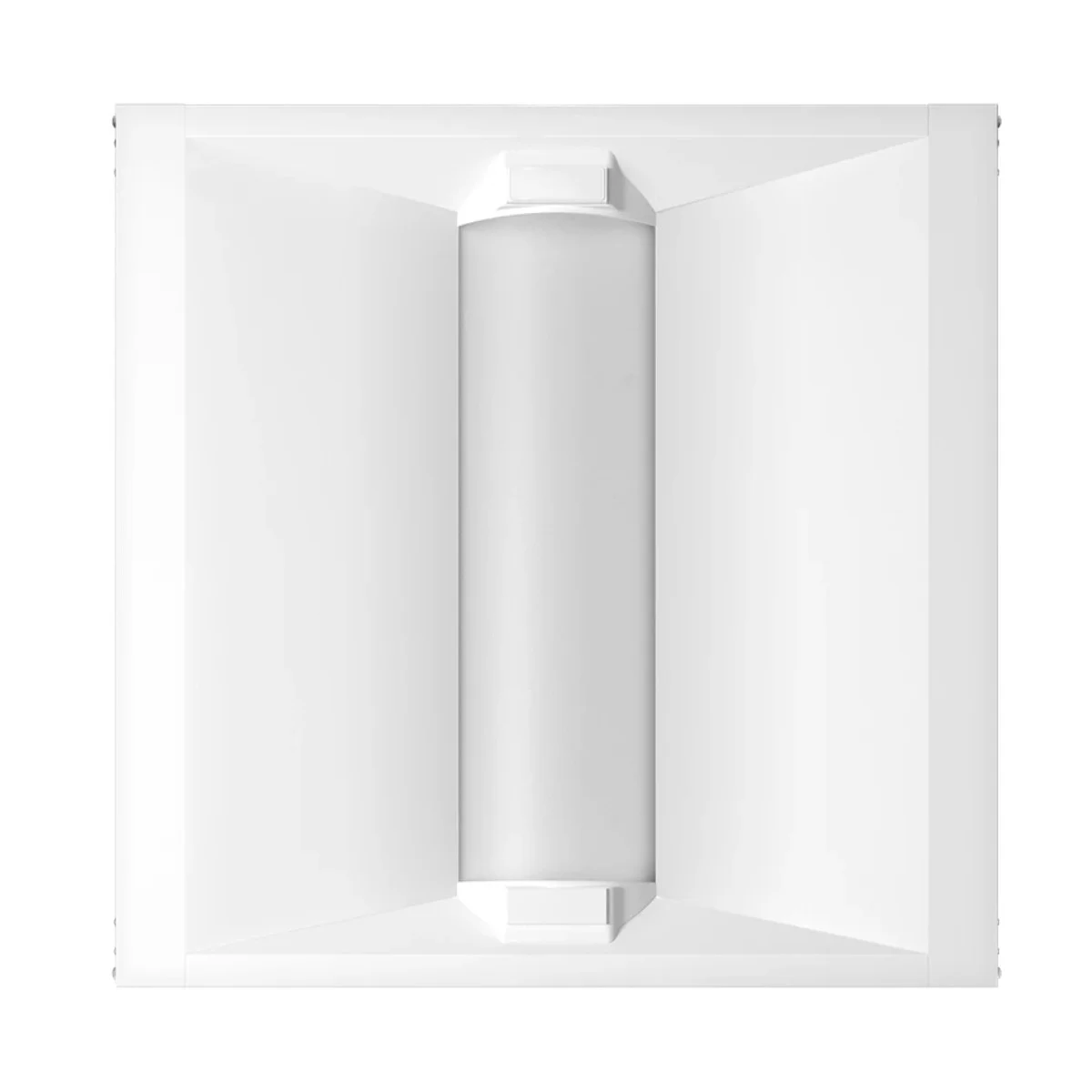

The LEDone LOC-##HTR-MCCT family delivers flexible, high-efficiency troffer lighting for modern commercial spaces. This 2×2 LED CCT tunable troffer includes a built-in sensor base, combining adaptable light output and smart-control readiness in one streamlined fixture. Designed for dependable indoor performance, it supports both recessed and surface-mount installations.
Key Features and Benefits
- Selectable wattage (15W/20W/25W) lets you tailor light levels and energy use to each space.
- Wide CCT tuning from warm to cool white supports varied tasks and occupant comfort.
- Built-in sensor base simplifies future occupancy/daylight control upgrades.
- 0-10V dimming compatibility enables smooth light control and additional energy savings.
- DLC Premium and UL Certified design supports code-driven commercial projects.
- Backed by a 5-year limited warranty for long-term confidence.
Specifications
- Lumen Output: 2100|2800|3500
- Voltage: 120-277V
- CRI: 80
- Efficacy (lm/W): 140
- Power Factor: 0.95
- THD: 5
- Beam Angle: 97°
- IP Rating: IP20
- Rated Life (70 Hours): 100000
- Max Ambient Temperature: 40°C
- Operating Temperature: -40°C to 40°C
- Mounting: Surface Mount|Recessed Mount
- Housing Material: Sheet Metal|Steel
Common Uses
Ideal for warehouses, schools, offices, supermarkets, logistics centers, convention centers, manufacturing facilities, gymnasiums, exhibition halls, and big-box retail environments.
