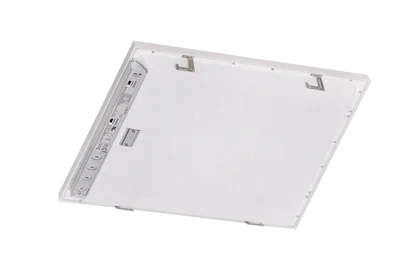

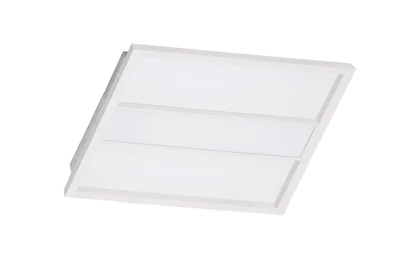

The Honya Lighting PB03A Series is an architectural recessed LED luminaire designed for modern commercial ceiling grids. Built for flexibility, this 2’x2′ model combines tunable wattage and multi-CCT selection to simplify stocking and adapt light output to changing project needs. It is a core solution in the lineup for efficient, glare-controlled indoor illumination.
Key Features and Benefits
- Field-selectable wattage and CCT let installers fine-tune brightness and color on site.
- Backlit optical design promotes smooth, low-glare light distribution for visual comfort.
- High efficacy performance up to 140 lm/W helps reduce operating energy costs.
- UL Listed and DLC listed for trusted compliance and potential utility rebate eligibility.
- 0-10V dimming support enables seamless control integration in commercial projects.
- Backed by a 5-year warranty for long-term confidence.
Specifications
- Size: 2’x2′
- Lumen Output: 4890
- Wattage: 40/30/25/20/15W
- Input Voltage: 120-277V
- Color Temperature: 6500K/5000K/4000K/3500K/3000K selectable
- CRI: >80
- Beam Angle: 110°
- Power Factor: >0.9
- Dimming: 0-10V
- IP Rating: IP20 (indoor use only)
- Rated Life: 50,000+ hours (L70 >70%)
- Operating Temperature: -13°F to +113°F (-25°C to +45°C)
Common Uses
Ideal for offices, schools, showrooms, airports, retail stores, and healthcare facilities where efficient, uniform, and configurable ambient lighting is required.
