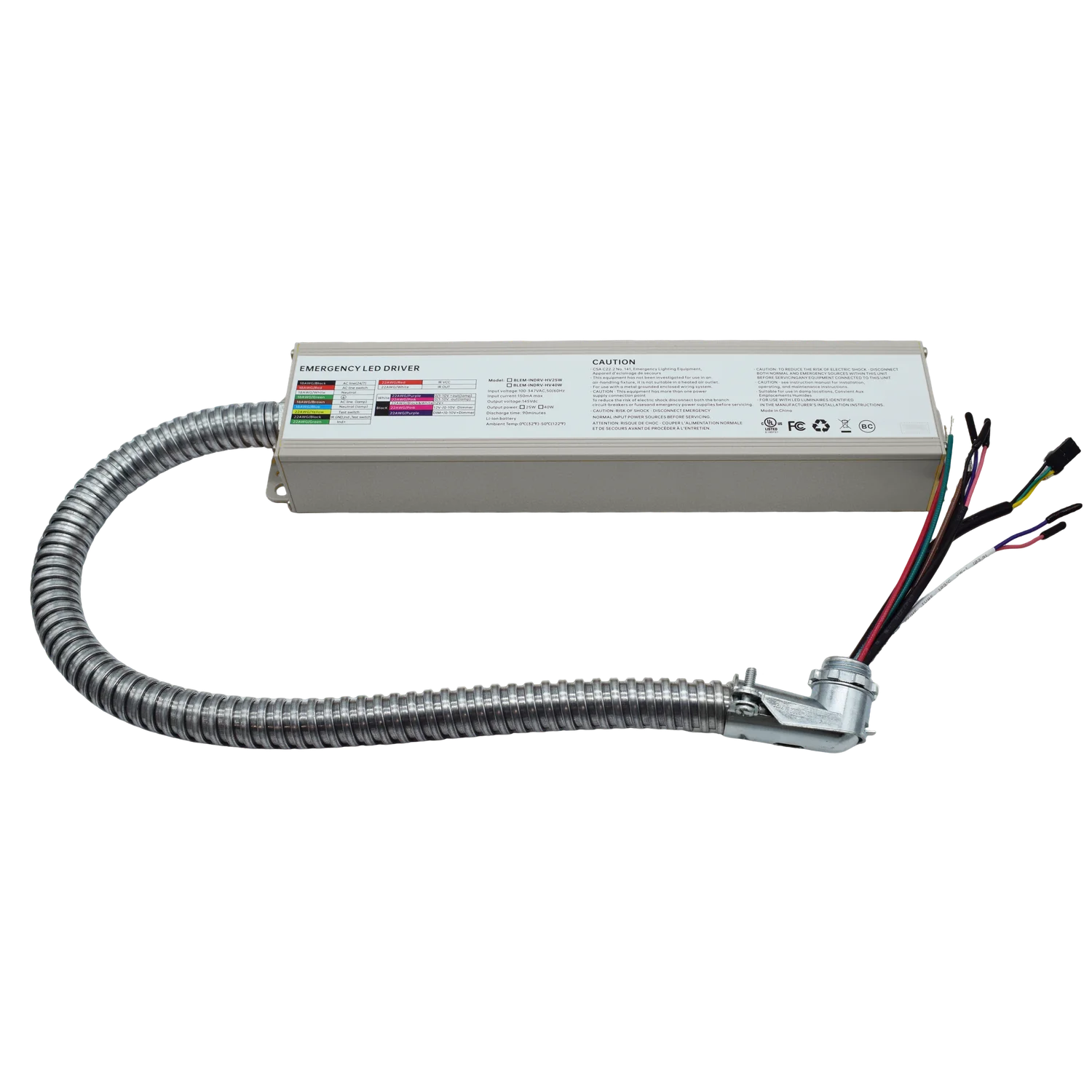

Introducing the INLINE LED Emergency Driver, part of the BL-BLEM-INDRV-HV Series, designed to provide reliable emergency lighting solutions for a wide range of LED fixtures. This driver is a crucial component in maintaining safety and compliance in emergency situations.
Key Features and Benefits
- Durable painted Stamped Aluminum construction
- Universal 100-347V, 50/60Hz input
- 145VDC, 6A Max. Output
- Charge/Power “ON” LED indicator light and push to test switch
- Long-life, maintenance-free, rechargeable Lithium battery
- Multi-protection functions: overcharge, over-discharge, output overload, short-circuit, and open load protection
- 90-minute minimum emergency operating time
- Monthly/annual self-testing with SDT standard: Self-Diagnostic feature
- Fixture-mount integral LED test switch with light-up indicator
Specifications
- Provides voltage to the Input side of the connected load during emergency mode operation
- Suitable for use with switched or unswitched fixtures
- Supports LED lamp/luminaire loads up to 25W or 40W in Emergency mode
- Suitable for inside or top mount of LED fixtures
- UL Listed for factory or field installation
- Suitable for damp location (0°C – 50°C)
- Complies with UL924, NFPA 101 Life Safety Code, NEC, OSHA, Local and State codes
- Certified to CEC under Title 20 regulations
- 5-year warranty on all electronics and housing
Common Uses
This emergency driver is ideal for commercial, industrial, and residential applications where reliable emergency lighting is crucial, such as offices, warehouses, and public buildings.
