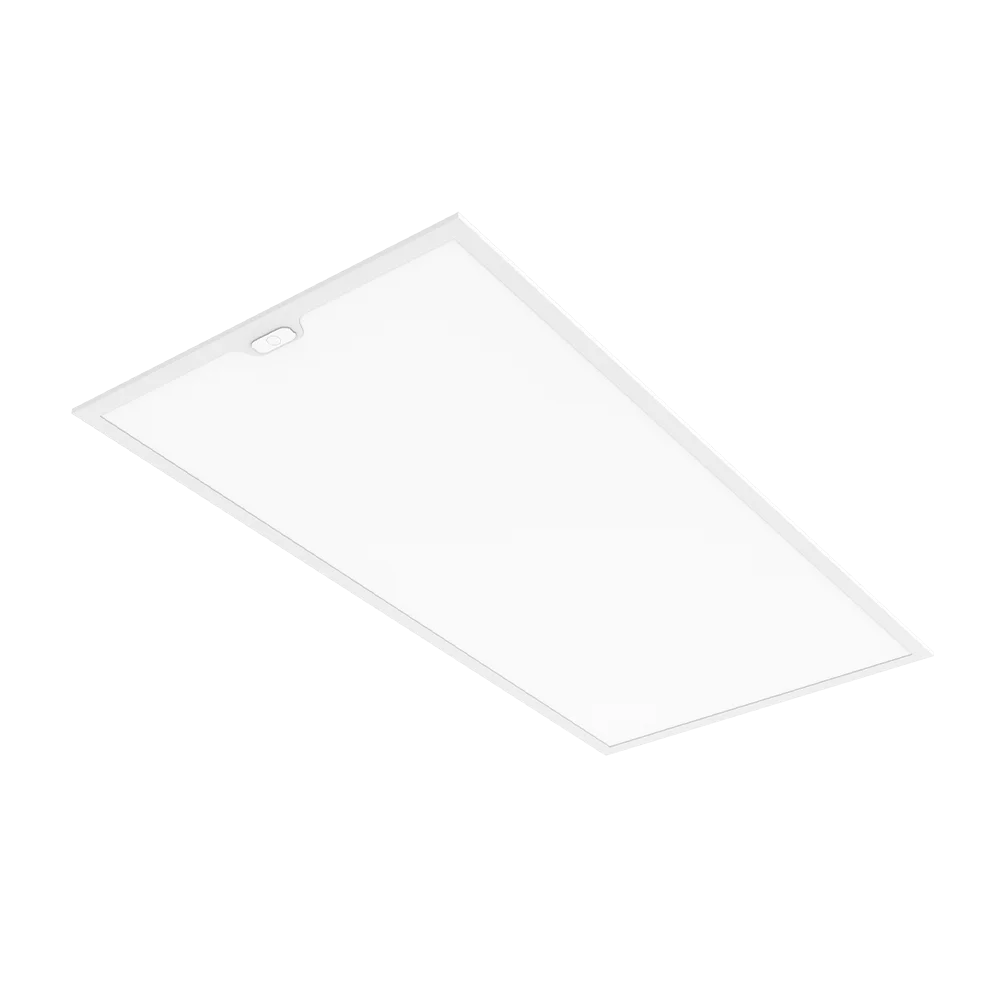

The ILP VPAN Select Controls Ready series is a high-performance back-lit flat panel designed for modern commercial interiors requiring flexibility and visual comfort. This 2×4 Gen 2 configuration combines field-selectable lumen and CCT settings with robust construction, making it a versatile core fixture in ILP’s panel lineup.
Key Features and Benefits
- Field-selectable output and color tuning simplify stocking and speed project changes in the field.
- Back-lit optical system with frosted PMMA lens and micro-optics delivers smooth, low-glare illumination.
- High efficacy performance up to 154 lm/W helps reduce energy costs in continuously occupied spaces.
- 0-10V dimming standard with controls-ready architecture supports advanced lighting control strategies.
- ETL Listed for US and Canada, Title 24 compliant with sensor option, and backed by a 5-year warranty.
- Type IC rated housing allows direct insulation contact for broader ceiling installation compatibility.
Specifications
- Lumen Output: 7223-7780 lm
- Wattage: 51.9W
- Voltage: 120-277V
- Color Temperature: 2700K/3000K/3500K/4000K/5000K
- CRI: >80
- Power Factor: >0.90
- Dimming: 0-10V (10%-100%)
- Rated Life (L70): >100,000 hours
- Ambient Operating Range: -4°F to 104°F
- Housing: Die-formed steel with white post-paint finish
- Lens: Frosted PMMA acrylic
- Fixture Size: 47.8″ x 23.7″ x 1.3″
Common Uses
Ideal for education facilities, healthcare spaces, commercial offices, retail stores, grocery environments, food prep areas, storage facilities, and other indoor damp-location ceiling applications.
