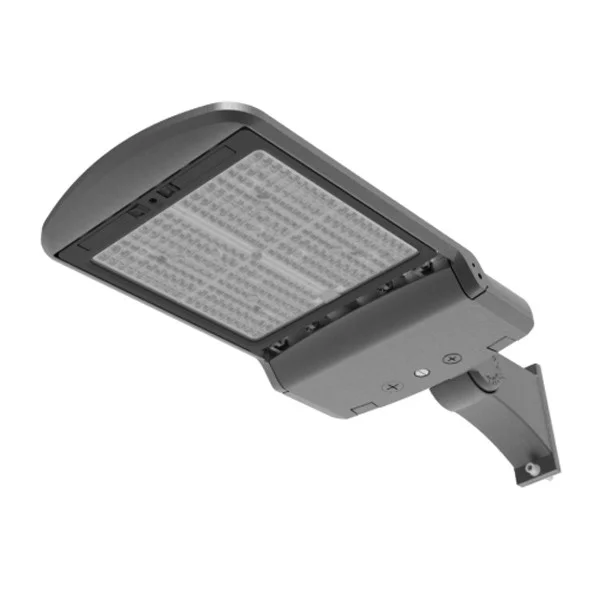

The ILP Viewpoint Area Light 2.0 Medium (VAM2) is a high-performance outdoor luminaire engineered for scalable site lighting across commercial and municipal projects. Designed as part of ILP’s Viewpoint family, it combines field-selectable output and CCT with robust construction to simplify specification and long-term maintenance.
Key Features and Benefits
- Field-selectable lumen package and CCT reduce SKU count and speed up project deployment.
- Field-swappable optics support application tuning with Type III, Type IV, or Type V distributions.
- Rugged die-cast aluminum housing with UV-stabilized optics and IP66 sealing for demanding outdoor environments.
- Advanced control readiness with 3-pin/7-pin receptacle options, photocell compatibility, PIR/Bluetooth sensor options, and standard 0-10V dimming.
- High efficacy performance up to 179 lm/W helps lower energy and operating costs.
- Certified for performance and compliance: ETL Listed, DLC Premium, RoHS, LM-79/LM-80 tested, and Title 24 Compliant.
- Backed by a 5-year standard warranty with optional 10-year coverage.
Specifications
- Lumen Output: 23757-31933
- Wattage: 152W|170W|195W
- Voltage: 120-277V
- Color Temperature: 3000K|4000K|5000K
- CRI: 80
- Dimming Type: 0-10V (10%-100%)
- Frequency (Hz): 50|60
- Power Factor: 0.90
- THD: 20
- Distribution Type: Type IV
- Bug Rating: B3-U0-G3
- IP Rating: IP66
- Max Ambient Temperature: 50°C
- Rated Life (70 Hours): 100000
- Finish / Color: Bronze
- Weight: 10.07 lbs
Common Uses
Ideal for parking lots, parking structures, roadways, parks, hospitals, schools, shopping centers, and auto dealerships where reliable, uniform outdoor illumination and flexible controls are required.
