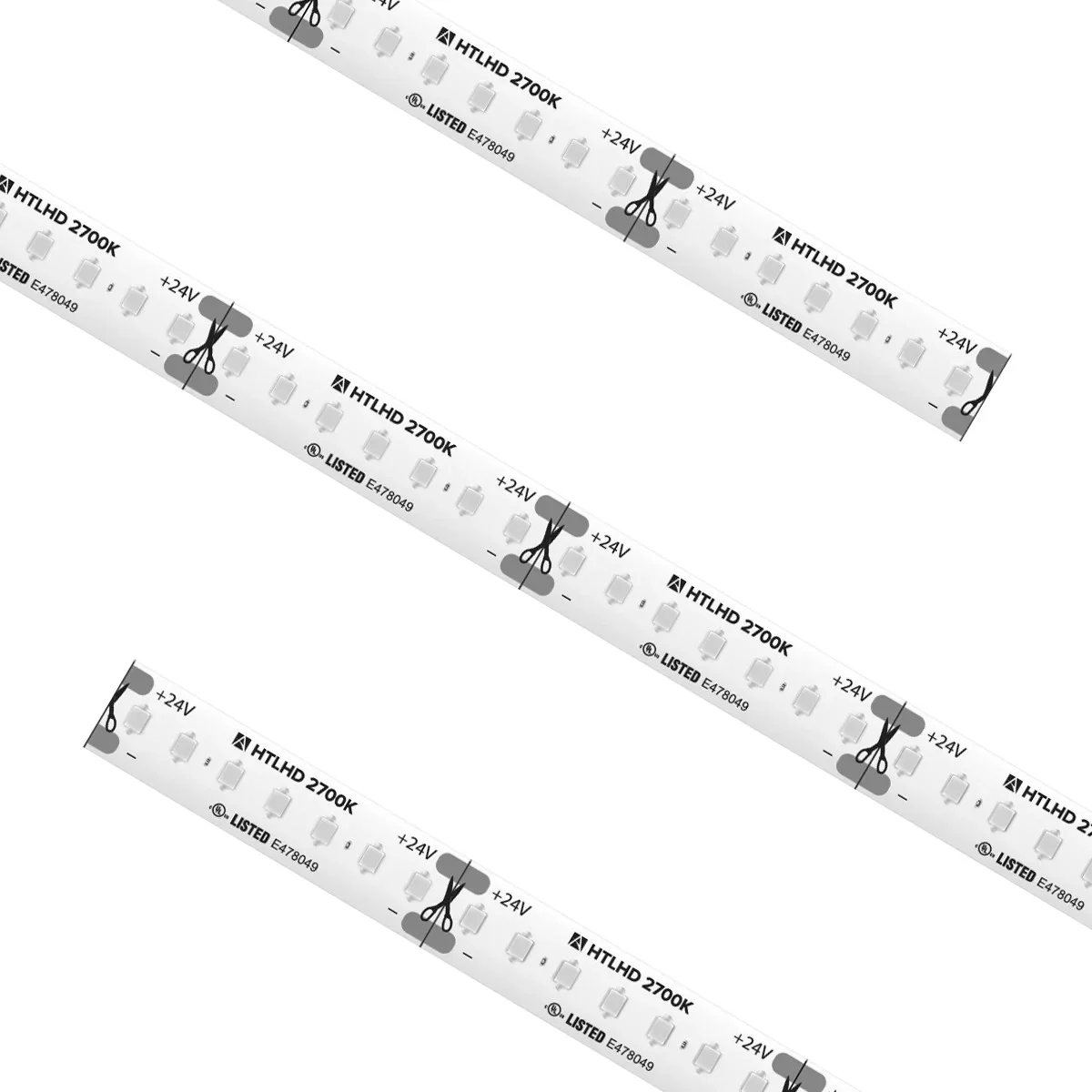

The HTLHD Series High Density Tape Light offers exceptional performance and flexibility in Proluxe Lighting’s lineup. It is designed for applications requiring high output and precise cutting capabilities.
Key Features and Benefits
- High Density (HD) LED spacing for high output performance
- Available in multiple color temperatures: 2700K, 3000K, 3500K, 4000K, 5000K
- 90+ color rendering index for accurate color representation
- Lumen output ranging from 310Lm to 385Lm per foot
- Customizable with cuttable segments every 1.51 inches up to a 27ft max run
- Easy installation with 3M VHB adhesive backing
- Available in IP54 coated and IP65 jacketed for varied environmental conditions
- Dimmable (5-100%) with most ELV, TRIAC dimmers
- cULus Listed for indoor dry/damp locations
- 50,000 hours rated life
- JA8 compliant for high efficiency
Specifications
- Voltage: 24V DC
- Wattage: 3.65W per foot
- CRI: 90+
- IP Rating: IP65 for protection against sprayed water and dust
- Operating temperature: 5°C (41°F) to 70°C (158°F)
- Beam angle: 120°
- Certifications: cULus Listed for dry/damp locations
Common Uses
Ideal for indoor and outdoor damp and wet locations, suitable for use in closets when enclosed, and meets NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5).
