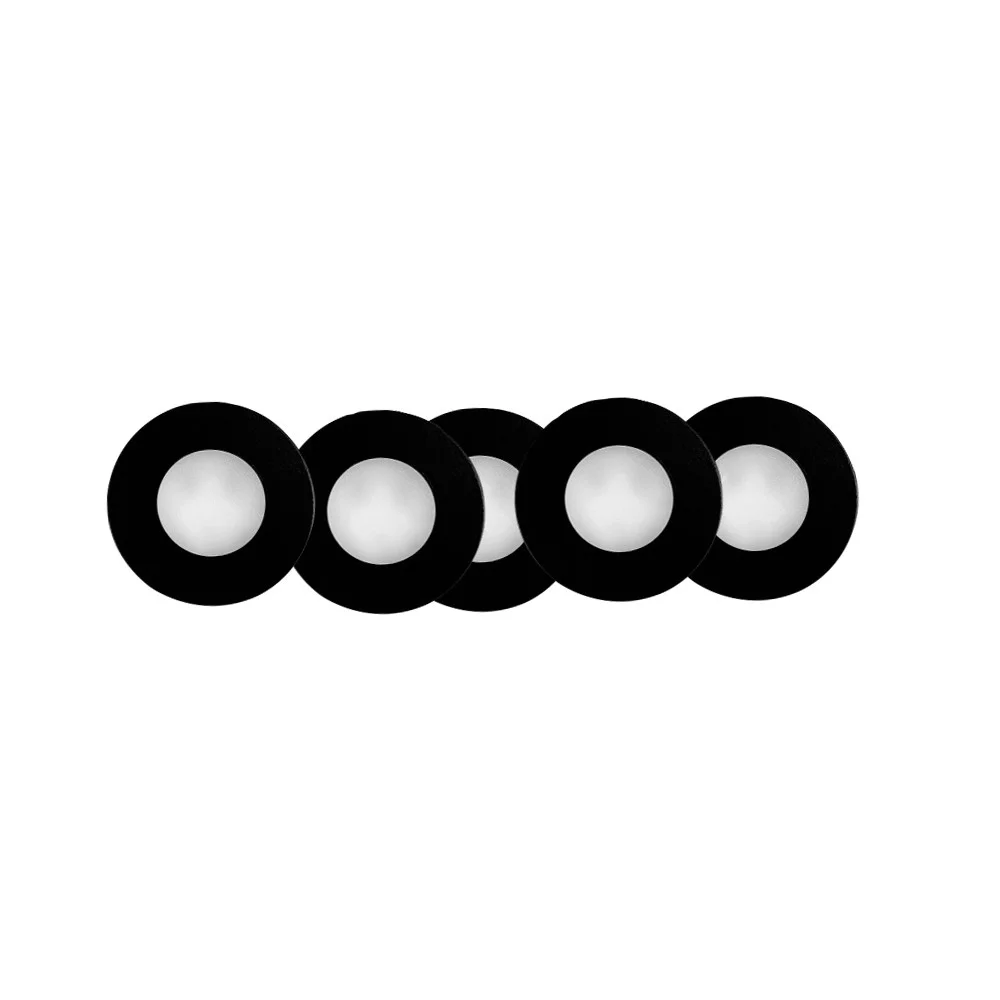

The Lotus AD-108 Series is a 1″ mini puck LED solution designed for compact accent and task lighting in low-voltage 12V DC systems. As a versatile lineup for cabinet, display, soffit, and mobile/off-grid applications, it combines small size with dependable light quality and easy multi-light connectivity.
Key Features and Benefits
- Ultra-compact recessed form at only 5/8″ depth for tight installation spaces.
- High-quality illumination with CRI 90+ for better color appearance in displays and interiors.
- Daisy-chain low-voltage wiring simplifies multi-puck layouts and speeds installation.
- Built for damp-location use with airtight construction for added application flexibility.
- Certified cETLus for code confidence and backed by a 3-year warranty.
Specifications
- Lumen Output: 70|80
- Wattage: 1W
- Voltage: 12VDC
- Color Temperature: 3000K|4000K
- Beam Angle: 100°
- Projected Life: 50000 hours (70% lumen maintenance)
- Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
- Dimensions: ID 1″, OD 1 5/16″, Depth 5/8″, Cutout 1 1/16″
Common Uses
Ideal for under-cabinet lighting, display cases, recessed niches, soffits, RV and trailer interiors, and solar-powered or other 12V DC low-voltage lighting environments.
