The Halco CDLEM Retrofit Commercial Downlight is a versatile 10″ solution designed to modernize existing commercial recessed lighting with minimal installation effort. As part of Halco’s CDL family, it combines field-selectable output and color tuning with emergency battery-ready capability for dependable everyday and code-driven lighting performance.
Key Features and Benefits

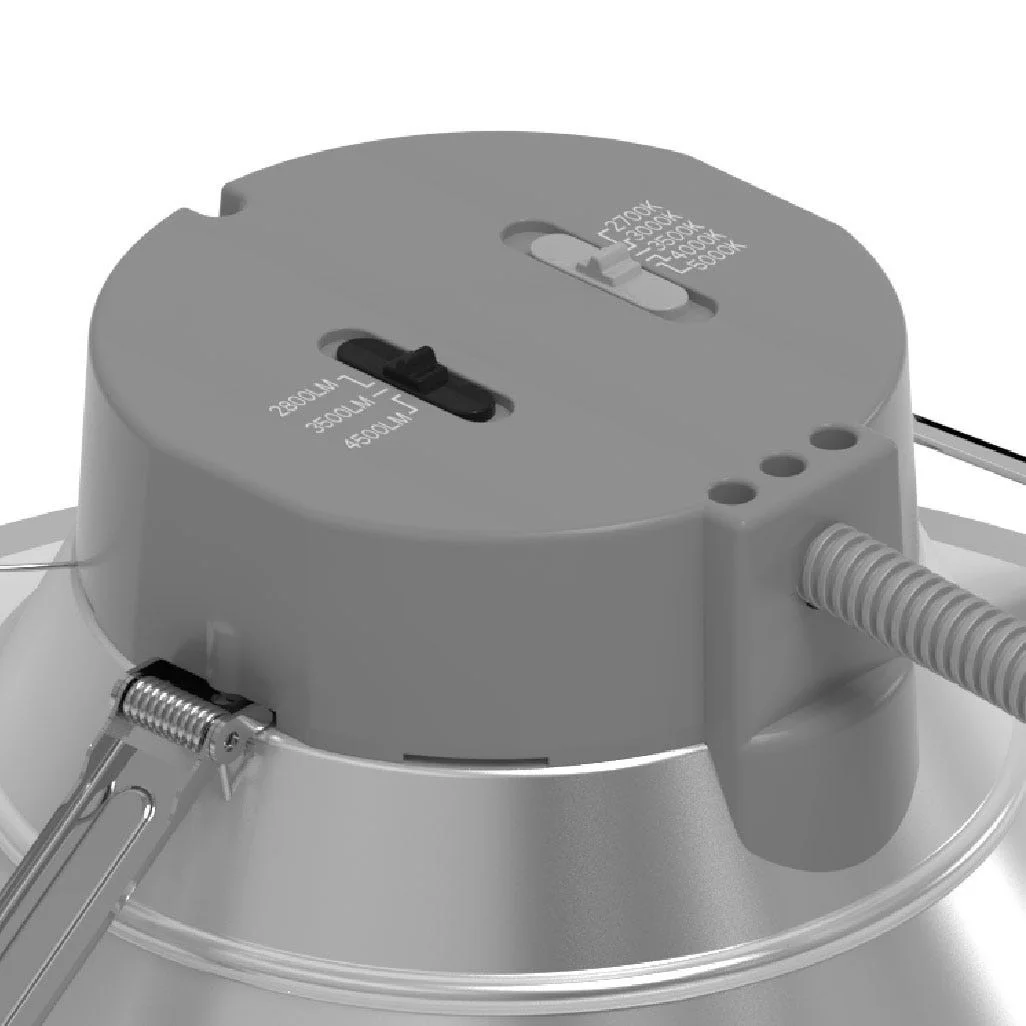

- Field-selectable lumen packages and 5-CCT tuning simplify inventory and on-site configuration.
- Dual-dimming driver supports both 0-10V and TRIAC/ELV controls for broad compatibility.
- Emergency battery-ready platform supports integral quick-connect backup for life-safety applications.

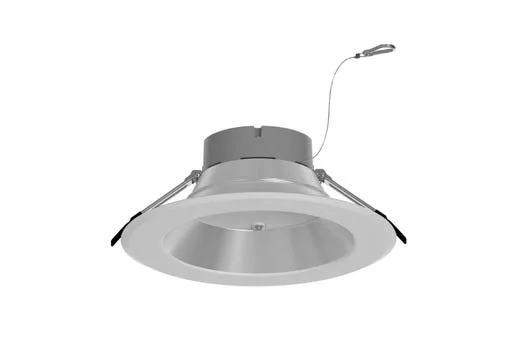

- Haze reflector with white flange delivers a clean architectural look for commercial interiors.
- Certified for demanding projects with ETL Listed, FCC, RoHS, Energy Star, and Title 24 compliance.
- Backed by a 5-year limited warranty for long-term confidence.
Specifications
- Lumen Output: 2800|3500|4500
- Wattage: 25W|31W|38W
- Voltage: 120-277V
- Color Temperature: 2700K|3000K|3500K|4000K|5000K
- CRI: 90
- Beam Angle: 80°±10°
- Power Factor: 0.9
- Frequency: 50|60
- Rated Life (L70): 50000 hours
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Ingress Protection: IP65
- Weight: 2.2 lbs
Common Uses
Ideal for office parks, commercial buildings, maintenance facilities, educational campuses, and big-box retail spaces where flexible light levels, selectable CCT, and wet-location-rated recessed performance are required.
