The Halco CDLEM 6″ Retrofit Commercial Downlight is a versatile, field-adjustable solution designed to modernize commercial interiors with minimal installation effort. As part of Halco’s CDL family, this emergency battery-ready model combines selectable output, broad CCT flexibility, and dual-protocol dimming for dependable performance across retrofit projects.
Key Features and Benefits

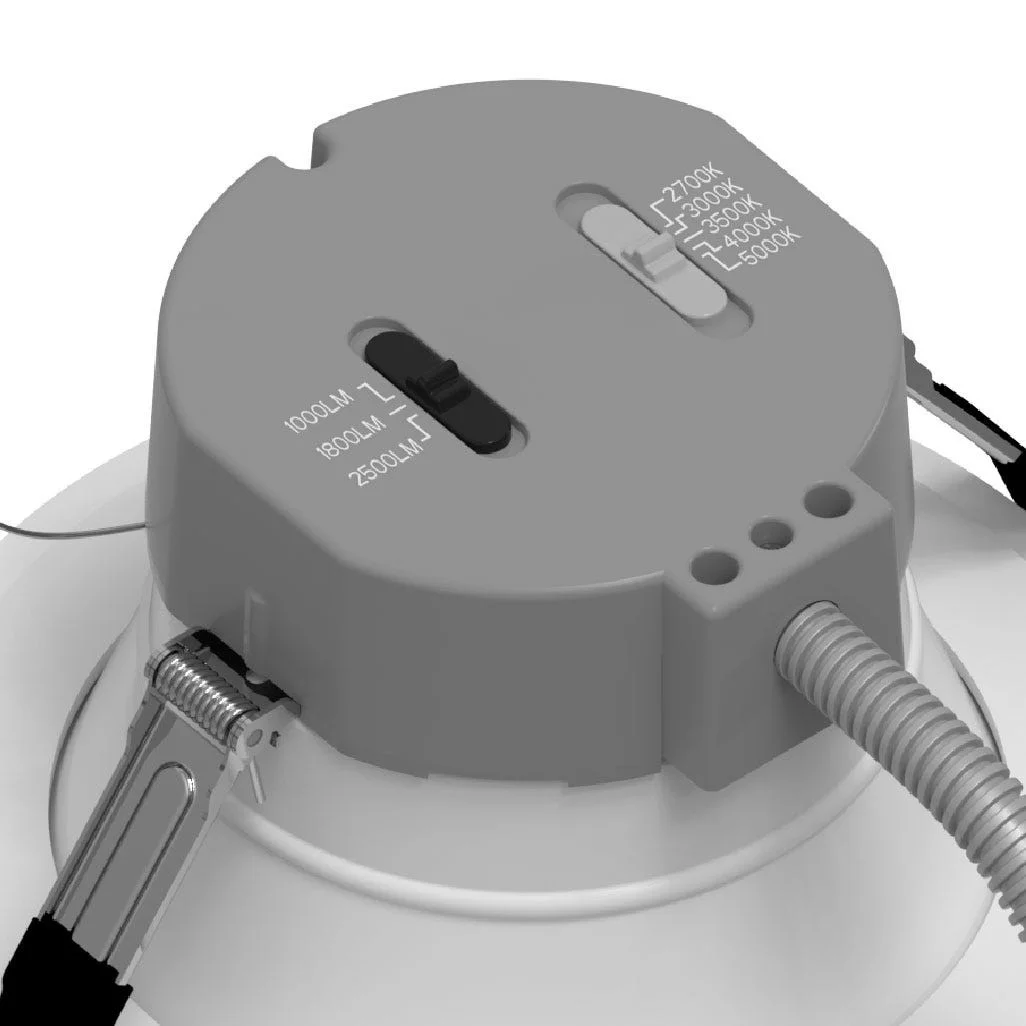

- Field-selectable lumen packages and five CCT options allow one fixture to cover multiple design requirements.
- Dual dimming compatibility supports both 0-10V controls and TRIAC/ELV phase-cut systems for easier upgrades.
- Emergency battery-ready configuration supports life-safety lighting needs with a clean, integrated appearance.
- Wet location and IP65 construction enable use in demanding indoor or covered outdoor environments.
- Backed by a 5-year limited warranty and certified for ETL, Energy Star, FCC, RoHS, and Title 24 compliance.
Specifications
- Lumen Output: 1000/1800/2500
- Wattage: 11W/18W/22W (CDLEM nominal selectable)
- Voltage: 120-277V, 50/60Hz
- Color Temperature: 2700K/3000K/3500K/4000K/5000K
- CRI: 90+
- Beam Angle: 80° ± 10°
- Power Factor: 0.9
- Rated Life (L70): 50000 hours
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Weight: 1.5 lbs
Common Uses
Ideal for office parks, commercial buildings, maintenance facilities, schools, universities, and big-box retail spaces where flexible light levels, code-friendly performance, and reliable retrofit installation are required.
