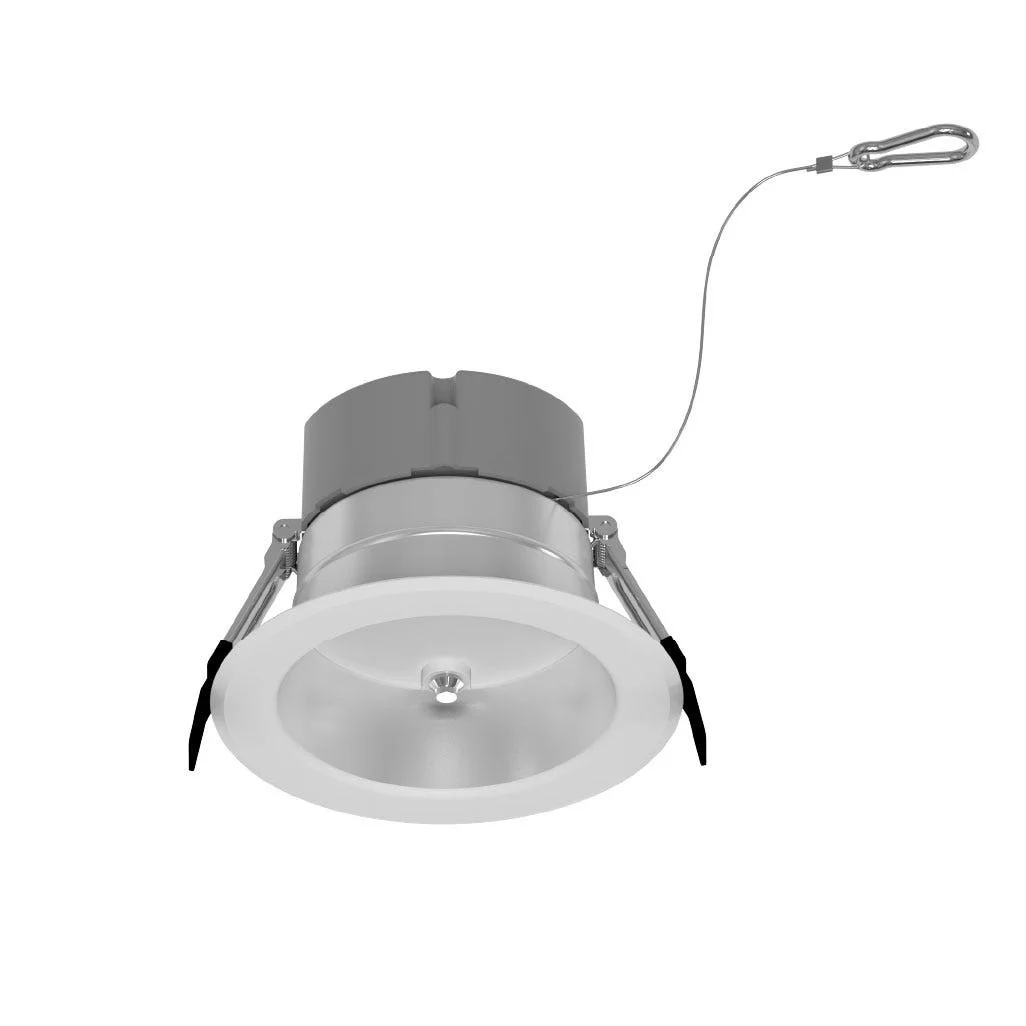

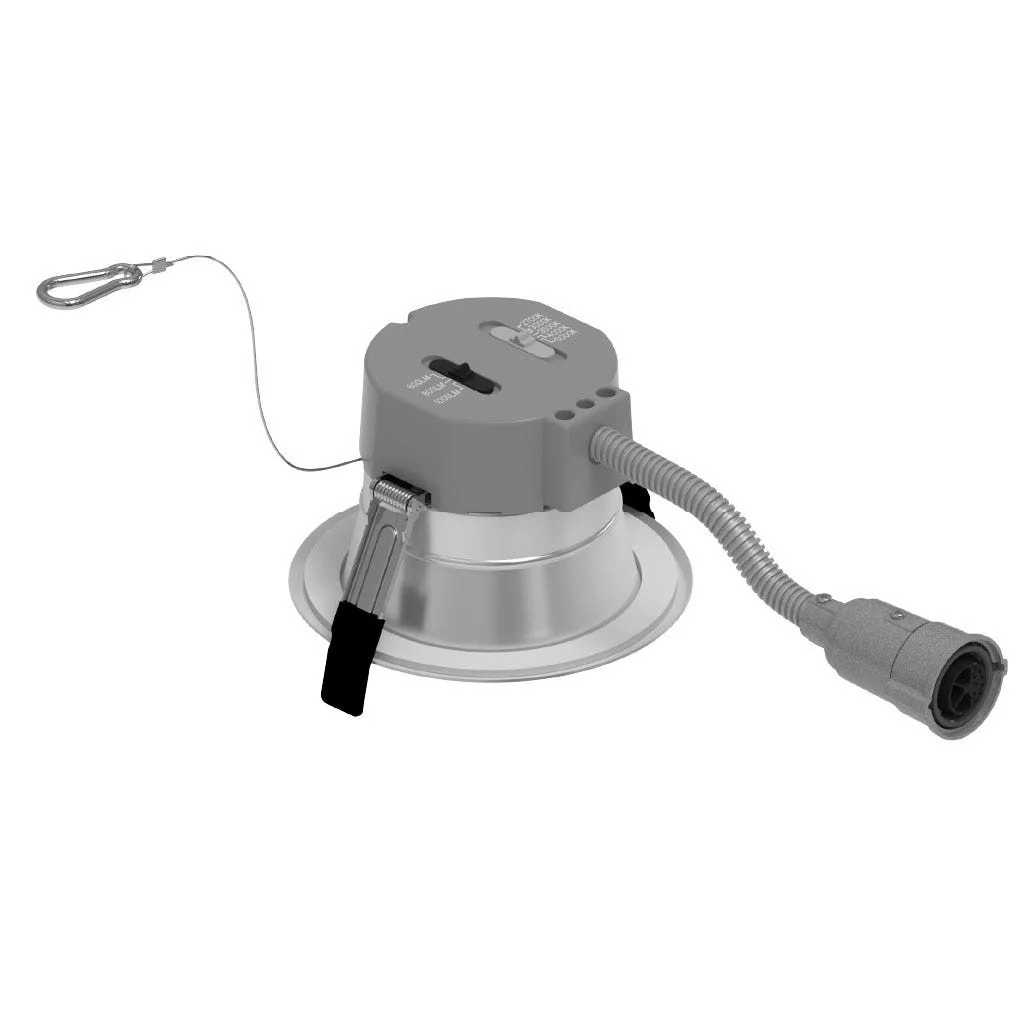

The Halco CDLEM 4″ Retrofit Commercial Downlight is a flexible, specification-grade solution designed to modernize commercial recessed lighting with minimal installation effort. As part of Halco’s CDL family, this emergency battery-ready model combines field-selectable output and CCT with broad dimming compatibility to simplify project planning and future adjustments.
Key Features and Benefits
- Emergency battery-ready design supports life-safety lighting integration with compatible CDLEM-JB backup accessory

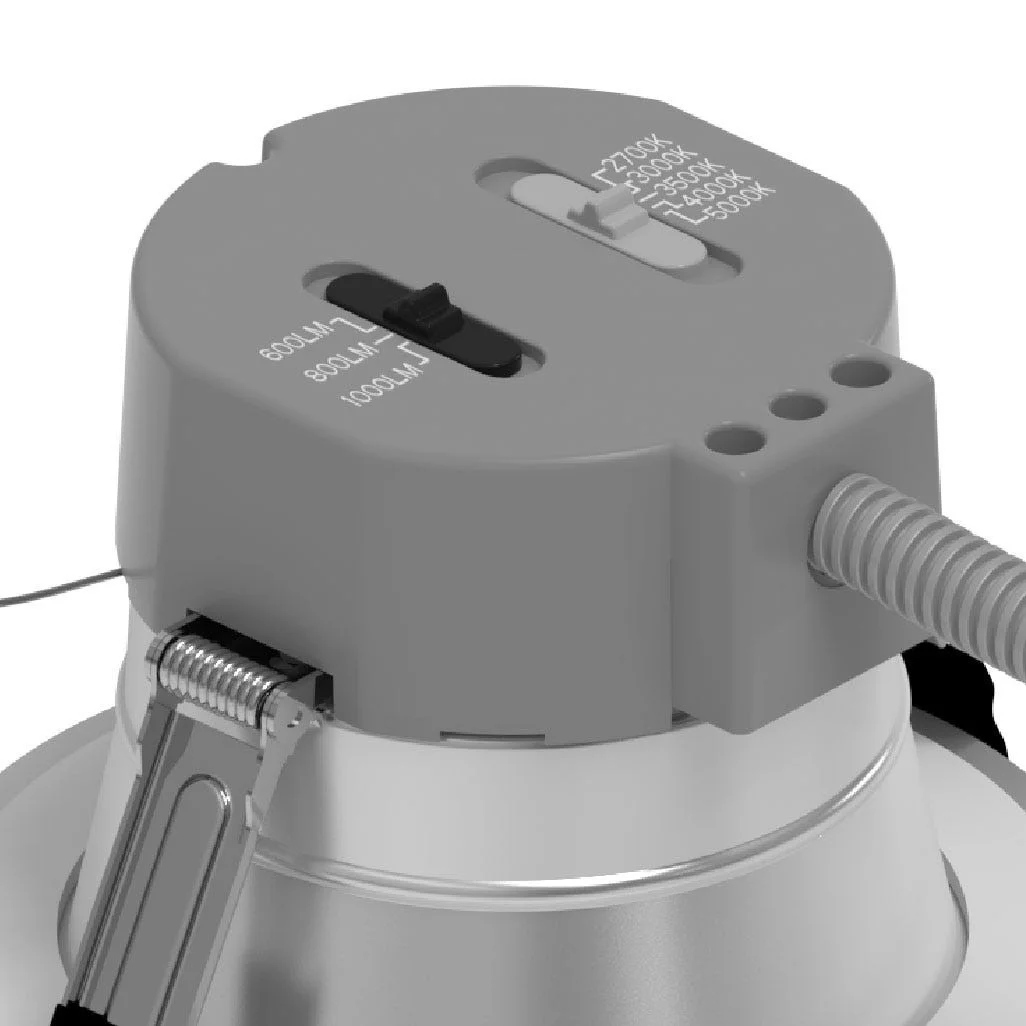

- Field-adjustable lumen and CCT settings reduce SKU complexity and speed up on-site commissioning
- Dual dimming capability supports both 0-10V and TRIAC/ELV controls for retrofit flexibility
- Haze reflector with white flange delivers a clean architectural appearance for commercial interiors
- Rated for wet locations with IP65 protection for demanding environments
- Backed by a 5-year limited warranty and certified to ETL, Energy Star, FCC, RoHS, and Title 24 requirements
Specifications
- Lumen Output: 1076|1101|1125|1138|1118
- Wattage: 11W
- Voltage: 120-277V
- Color Temperature: 2700K|3000K|3500K|4000K|5000K
- CRI: 90
- Power Factor: 0.9
- Frequency: 50/60
- Beam Angle: 80°±10°
- Rated Life (L70): 50000
- Operating Temperature: -4°F to 104°F
- Housing Material: Spun Aluminum (Haze Reflector)
- Lens Material: Diffused, Textured Lens
- Weight: 1.1 lbs
Common Uses
Ideal for office parks, commercial buildings, maintenance facilities, educational campuses, and big-box retail spaces where tunable light levels, code compliance, and dependable emergency-ready performance are required.
