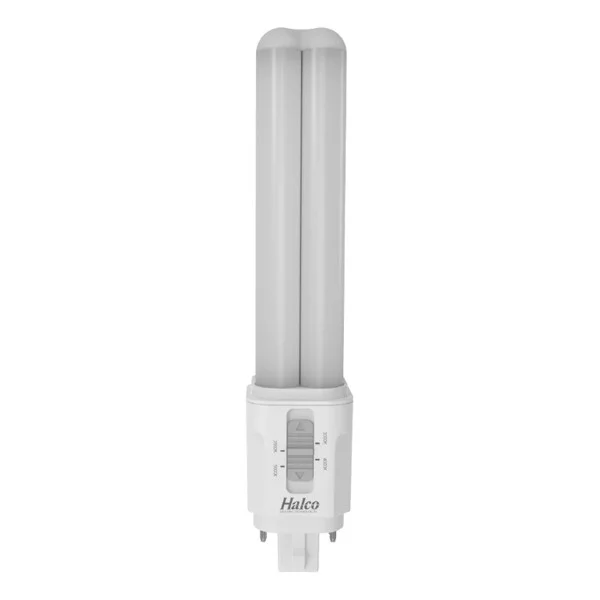

The Halco ProLED Select Plug-In Lamp Series delivers a practical LED upgrade path for legacy CFL plug-in fixtures in commercial and institutional spaces. Model PLD9O-8CS-HYB-G24Q-LED2-D combines hybrid ballast compatibility with ballast-bypass flexibility, helping simplify retrofit planning while improving efficiency and service life.
Key Features and Benefits
- Hybrid Type A/B operation supports both ballast-compatible and direct-wire retrofit strategies for greater installation flexibility.
- Field-selectable 3000K, 3500K, 4000K, and 5000K CCT lets users tune light appearance to the space.
- 0-10V dimming capability (with compatible dimmable ballast in Type A mode) enables better light control and energy savings.
- Omni-directional double-tube design helps provide broad, uniform light distribution in existing fixtures.
- Backed by a 5-year limited warranty for dependable long-term performance.
- Certified for demanding projects with cUL Listed, RoHS, NSF Listed, FCC, and DLC Standard compliance.
Specifications
- Lumen Output: 1050-1200
- Wattage: 9.5W
- Voltage: 120-277V
- CRI: 80+
- Efficacy: 111-126 lm/W (performance table), up to 135 lm/W (series spec table)
- Rated Life (L70): 50000 hours
- Power Factor: 0.9
- Frequency: 50/60Hz
- Beam Angle: 360° omni-directional
- Operating Temperature: -20°C to 45°C (-4°F to 113°F)
- Base Type: G24Q 4-pin
- Housing Material: Polybutylene terephthalate (PBT) plastic
- Lens Material: Frosted plastic
- Environment: Damp location
Common Uses
Ideal for offices, healthcare facilities, retail stores, hospitality properties, schools, and government or institutional buildings where CFL plug-in lamps are being upgraded to efficient LED technology.
