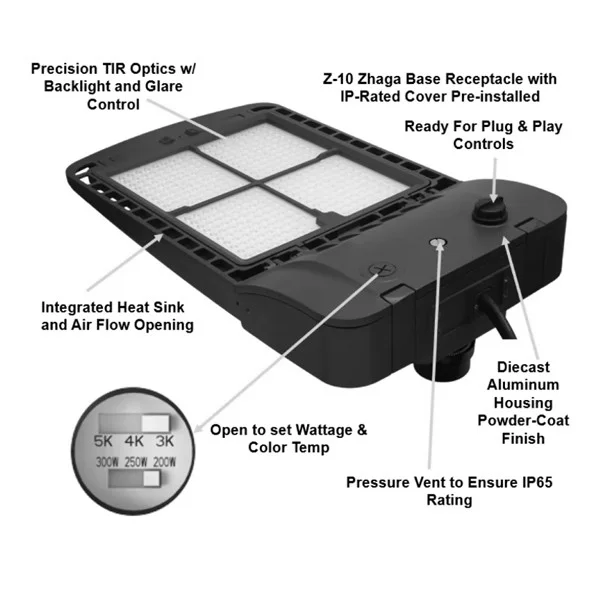

The Halco ProLED SekTor Area Light Series G2 is a versatile outdoor site lighting solution engineered for performance, flexibility, and long service life. Designed as a core area lighting platform in Halco’s lineup, it combines selectable wattage, selectable CCT, and field-interchangeable optics to simplify project design and inventory management.
Key Features and Benefits
- Three-step selectable output lets installers tune light levels and energy use in the field.
- Field-interchangeable optics support Type II, III, IV, and V distributions for changing site layouts.
- Integrated 3-pin and Zhaga Z-10 receptacle architecture enables easy photocell and smart control integration.
- Rugged die-cast aluminum housing with powder-coat finish improves durability in demanding outdoor environments.
- Certified for cULus safety, DLC Premium performance, FCC compliance, and RoHS material standards.
- Backed by a 5-year limited warranty for dependable long-term operation.
Specifications
- Lumen Output: 9400|12000|15000
- Wattage: 60W|80W|100W
- Voltage: 120-277V
- Color Temperature: 3000K|4000K|5000K
- CRI: 80
- Dimming Type: 0-10V
- Power Factor: 0.9
- Efficacy (lm/W): 154-160
- Rated Life (70 Hours): 100000
- Distribution Type: Type III|Type V
- Bug Rating: B3-U0-G3|B3-U0-G2
- IP Rating: IP65
- Max Ambient Temperature: 50°C
- Weight: 11.79 lbs
Common Uses
Ideal for parking lots, campuses, auto dealerships, roadways, perimeter security zones, and general outdoor area lighting where adaptable distribution and controllability are required.
