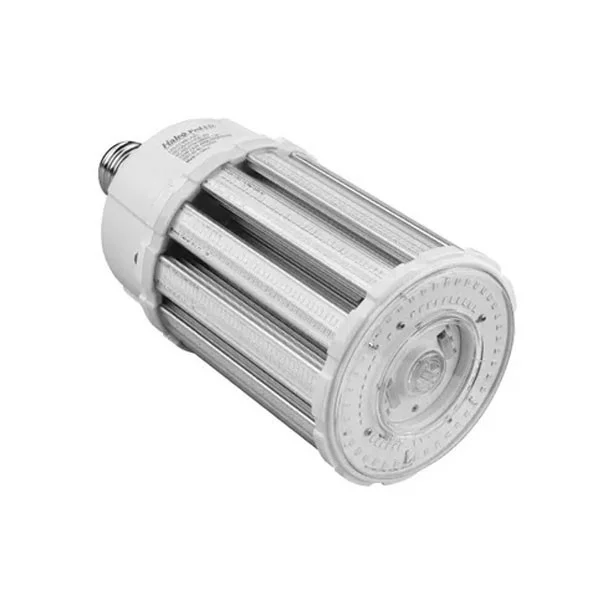

HID LED retrofit, EX39 mogul base, 100 watts, 14,000-15,000 lumens, available in 3000K/ 4000K/ 5000K CCT adjustable, up to 50,000 hours rated life, suitable for damp locations.
PROLED SELECT HID RETROFIT SERIES
CCT selectable 3000/4000/5000K
12W – 120W Options with wattage selection option
1,680 – 18,000 Lumens
50W – 400W Replacement
E26 base (Ex39 option 36W and up)
Control options for 80W and up
Highly efficient at 150lm/w
SPECIFICATIONS
PRODUCT DESCRIPTIONS
The ProLED Select HID Retrofit series offers an efficient LED retrofit opportunity for high bays, post tops, area lights and many more with a great form factor. The CCT and wattage selectability allows for simple and easy installation.
CONSTRUCTION
Clear Durable Polycarbonate Lens
Aluminum Housing With Efficient Heat Sink Design
E26 Base Option 12W – 54W
Ex39 Base Option 36W – 120W
INSTALLATION
Ballast Bypass Type B Lineconnect Wiring
Ballast Must Be Bypassed
E26 and Ex39 Base Available (See Ordering Logic For Options)
For Use in Enclosed Luminaries
Can be installed Vertical or Horizontal
CONTROLS
Motion Sensor Accessory For 80W, 100W and 120W Options
Commission With Remote Accessory
PERFORMANCE
12W – 120W Options
Up To 18,600 Lumens
100-277V
Up To 157 LPW
50,000hr Life
4kv And 6kv Surge Protection
CERTIFICATIONS
IP64
cUL Listed For Damp Locations
DLC 5.1. (Ex39 Base only) (Visit For Qualified Product List)
FCC
APPLICATIONS
Replacement lamps for Outdoor and Industrial Luminaires
