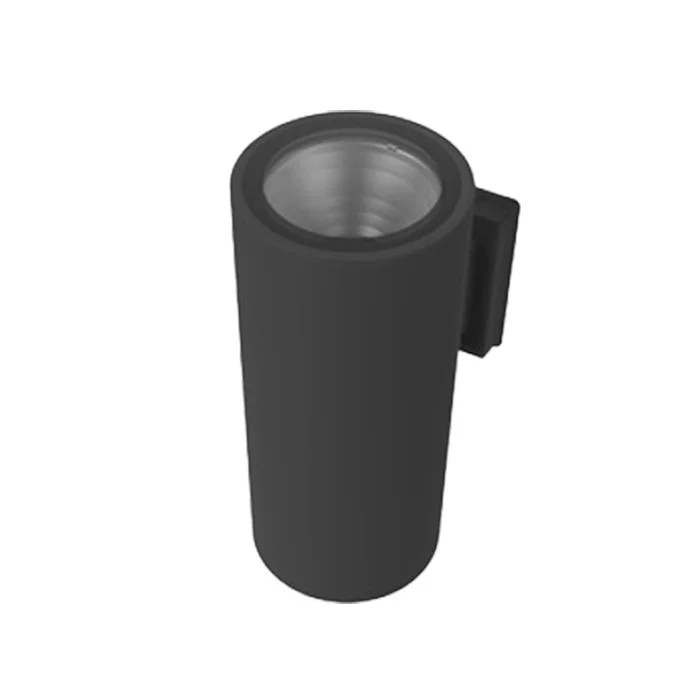

The Green Creative EXCYL Wall Mount Cylinder is a specification-grade outdoor architectural fixture designed for modern façade and perimeter lighting. As part of the EXCYL series, it combines selectable lumen output and selectable CCT in one compact platform to simplify design and stocking. Its robust die-cast construction and optical flexibility make it a dependable choice for commercial exterior projects.
Key Features and Benefits
- SelectDrive output tuning enables field selection of light levels for easier commissioning and future adaptability.
- SelectKelvin technology provides 3000K, 3500K, or 4000K options to match site aesthetics and visual comfort goals.
- Integrated photocell supports automatic dusk-to-dawn operation and can be enabled or disabled as needed.
- Durable die-cast aluminum body with gasketed tempered glass helps protect performance in demanding outdoor environments.
- ETL Listed for wet locations and FCC compliant for confidence in code-oriented commercial applications.
- Backed by a 5-year warranty
Specifications
- Lumen Output: 2600/3200/3900
- Wattage: 18W/24W/30W (field selectable), up to 35W max input
- Voltage: 120-277V
- Frequency: 50/60Hz
- Dimming: 0-10V, dims to 5% with low-end cutoff
- Color Temperature: 3000K/3500K/4000K selectable
- CRI: 80+
- Beam Angle: 15°/25°/40°/60°

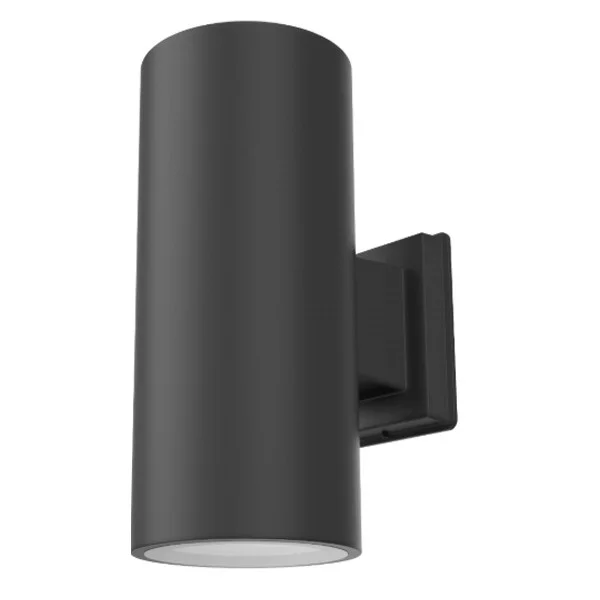

- Distribution: Indirect (model configuration), direct/indirect optical platform available
- Power Factor: >0.9
- THD: <20%
- Surge Protection: 4kV
- IP Rating: IP65
- Ambient Temperature: -40°F to 104°F (-40°C to 40°C)
- Rated Life: L70 60,000 hours (calculated L70 135,000 hours)
Common Uses
Ideal for retail storefronts, hospitality exteriors, multifamily and residential entries, educational campuses, and healthcare facilities where architectural wall illumination and weather-resistant performance are required.
