The Green Creative CCT Select PinFit PL Omni series is a versatile retrofit solution designed to replace traditional 26W CFL PL lamps with higher efficiency and field flexibility. This 9W model combines selectable color temperature, hybrid wiring compatibility, and a modular pin-base design to simplify upgrades across a wide range of commercial fixtures.
Key Features and Benefits
- Hybrid installation supports direct ballast operation or ballast-bypass line voltage retrofits for maximum project flexibility.

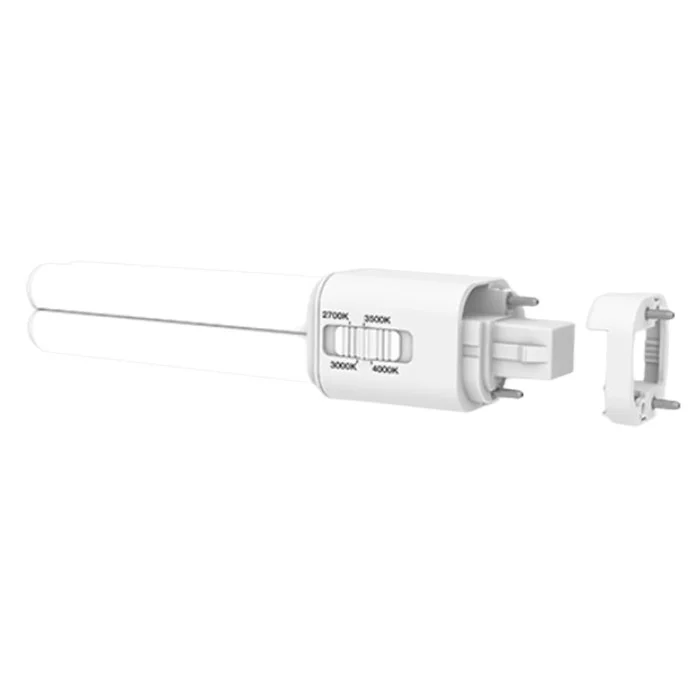

- Field-selectable CCT switch offers 2700K, 3000K, 3500K, and 4000K to match application needs on site.

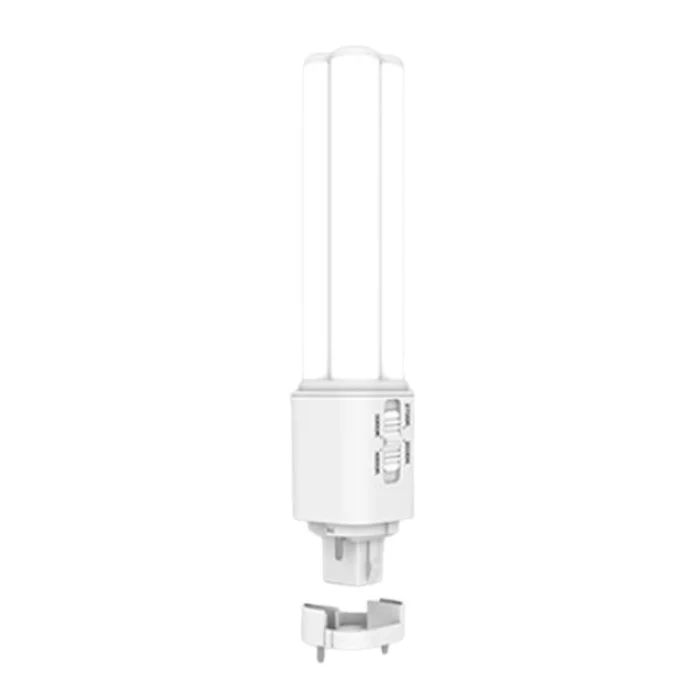

- Patented modular socket converts from 4-pin to 2-pin format in the field, reducing SKU complexity.
- Omnidirectional 360° light pattern delivers familiar fluorescent-style distribution.
- Durable shatter-resistant plastic construction improves reliability in demanding environments.
- Certified for commercial confidence with UL Listed, FCC, and NSF ratings, backed by a 5-year limited warranty.
Specifications
- Lumen Output: 1050|1100|1200
- Wattage: 9W
- Voltage: 120-277V
- Color Temperature: 2700K|3000K|3500K|4000K
- CRI: 82
- Power Factor: 0.9
- THD: 20
- Beam Angle: 360°
- Efficacy (lm/W): 117|122|133
- Rated Life (70 Hours): 50000
- Max Ambient Temperature: 113°F (45°C) lamp ambient; 95°F (35°C) fixture operating
- Damp Rated: true
Common Uses
Ideal for commercial downlights, sconces, ceiling fixtures, and wall-mounted enclosed luminaires in offices, schools, healthcare spaces, hospitality areas, and food-service support zones requiring NSF non-contact compliance.
