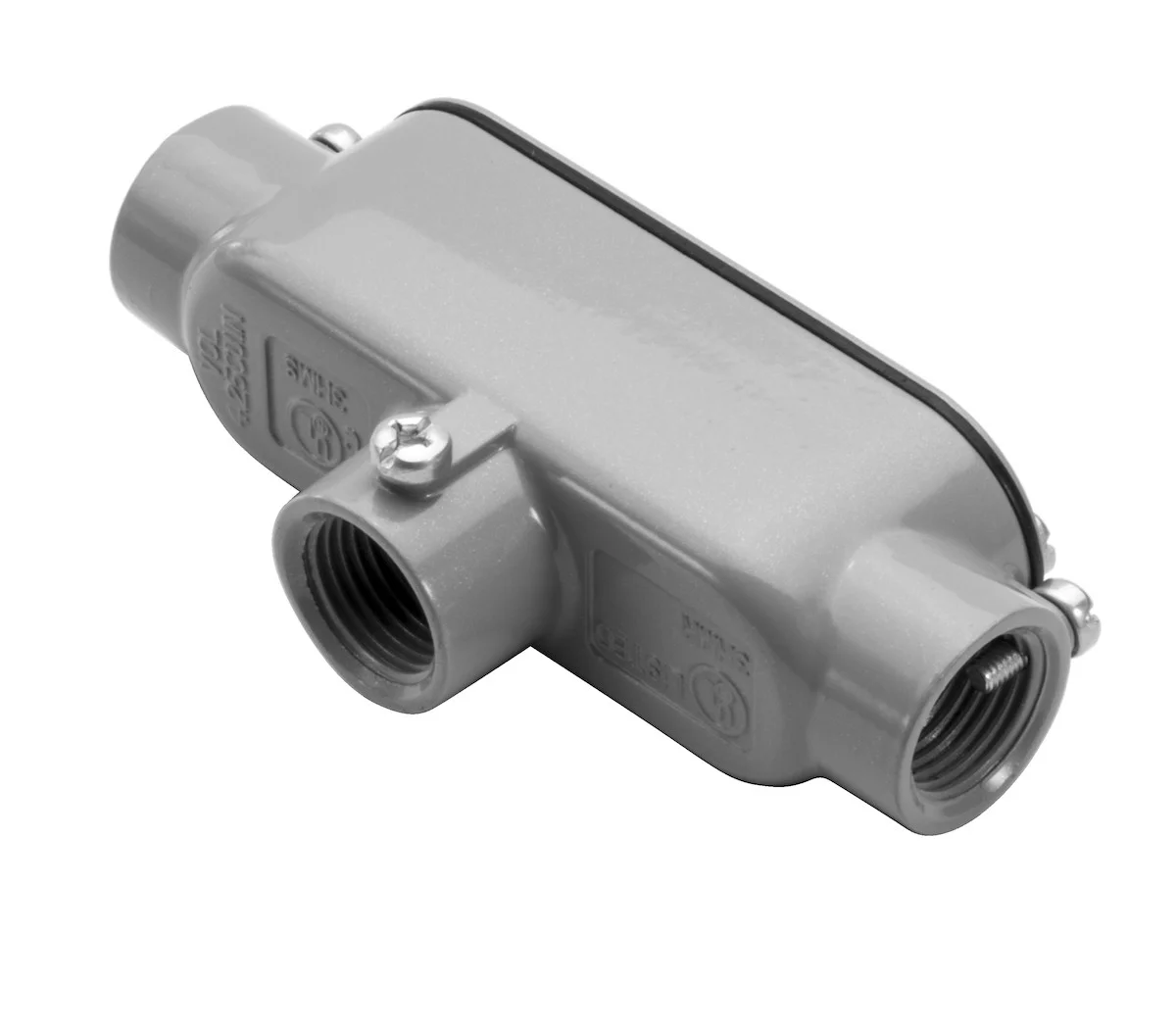

The Garvin Industries TB6SSCG is a 2″ EMT and rigid combination conduit body, designed to provide easy access to conductors for pulling, splicing, and maintenance. This robust conduit body is a key solution for demanding electrical installations, especially where durability and reliability are essential.
Key Features and Benefits
- Combination TB type with included cover and neoprene gasket for a secure seal
- NPT tapered hubs ensure tight, reliable connections
- Rated for wet locations and suitable for use in concrete installations
- Constructed from copper-free aluminum die cast for corrosion resistance
- Powder coat finish enhances durability and longevity
- UL 514A and NEMA FB 1 certified for safety and performance
- Accommodates up to 2/0 AWG wire for large capacity needs
Specifications
- Trade Size: 2″
- Number of Hubs: 3
- Max Wire Size: 2/0 AWG
- Material: Copper-free aluminum die cast body, stamped steel cover, neoprene gasket
- Finish: Powder coat
- Certifications: UL 514A, Fed. Spec. W-C-586D, NEMA FB 1
- Dimensions: 11.50″ (A) x 3.29″ (B) x 4.25″ (C)
Common Uses
Ideal for commercial and industrial electrical installations, especially in wet or concrete environments where access to conductors for maintenance or splicing is required.
