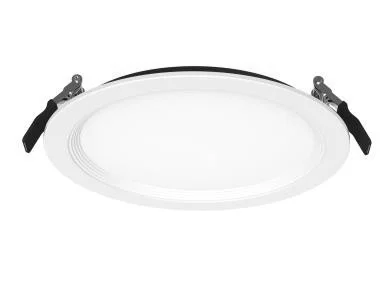

The MaxLite Fire Rated Slim Baffle Downlight series is a versatile lighting solution ideal for various applications. With its innovative design, this downlight mounts directly into the ceiling without the need for a separate housing, providing even and low glare illumination.
Key Features and Benefits
- CCT Selectable: 2700K/3000K/3500K/4000K/5000K
- CRI: ≥90
- Beam angle: 110°
- Universal mounting plate available
- Field installable Emergency Battery back up kit available
- Tested to UL 263 standard for 2-hour fire resistance
- 12v Aux output to work with c-Max network controls
Specifications
- Power Consumption: 18W
- Lumens Delivered: 1600 lm
- Efficacy: 84 lm/w
- Equivalency: 125W INC
- Input Voltage: 120-277V, 60Hz
- Dimming: 0-10V Dimming (100-10%)
- L70 Lumen maintenance: ≥ 50,000Hrs
- Power Factor: ≥ 0.9
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Listings: ULus (1598), FCC, Title 24 Compliant, JA8, IC Rated, Airtight
- Environment: UL listed for Wet location
- Warranty: 5 Year Warranty
Common Uses
Ideal for hospitality, retail, offices, and multi-unit residential spaces.
