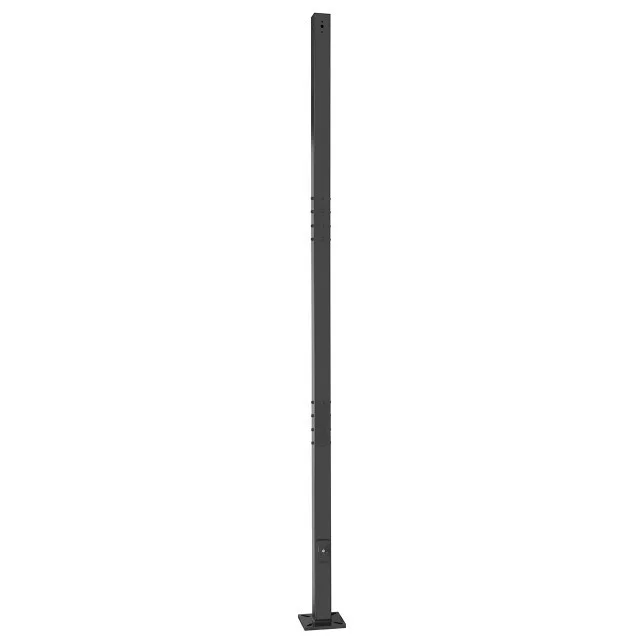

The Energy Light EZ12S4SQ11 is a sectional steel light pole engineered to simplify job-site handling without sacrificing structural performance. As part of the EZ sectional lineup, it uses modular 4′ segments to reduce installation challenges common with one-piece poles. This 12′ square pole is built for dependable area and site lighting support in commercial outdoor applications.
Key Features and Benefits

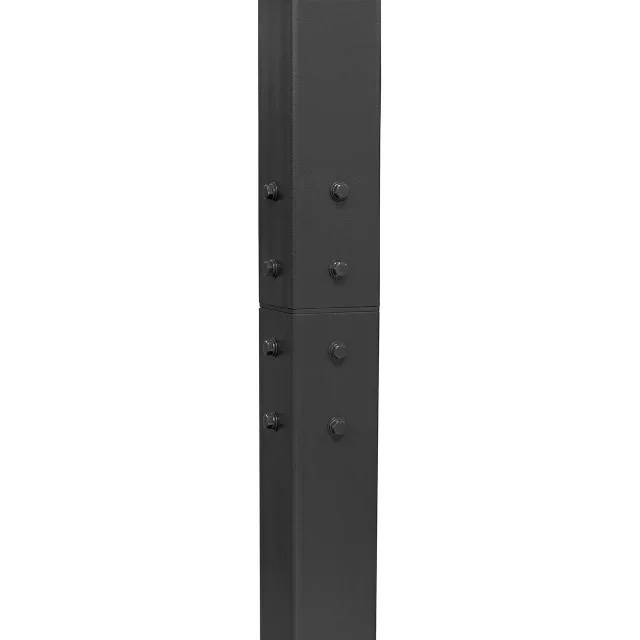

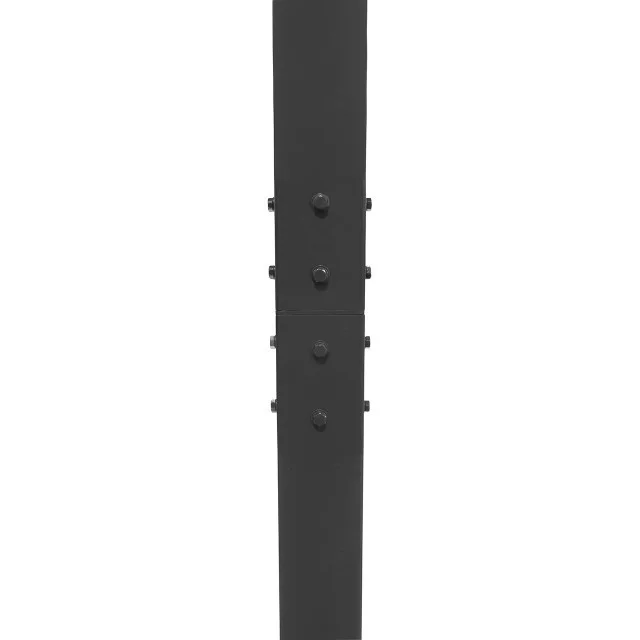

- Sectional 4′ segment design enables easier shipping, staging, and field assembly.
- Heavy-duty 11-gauge commercial steel shaft with 50,000 psi minimum yield strength for robust support.

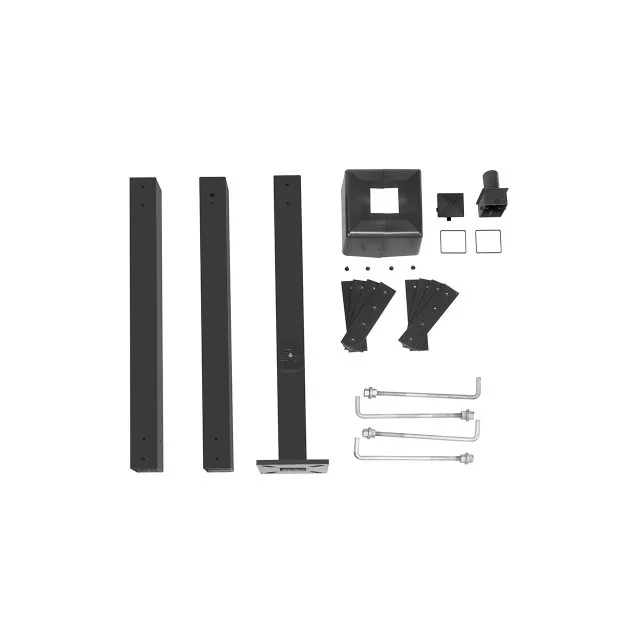

- Includes galvanized anchor bolt kit with nuts, washers, and full-size template for streamlined installation.
- Standard 4-side drilled pole-top pattern with removable plugs and optional tenon adaptability for fixture flexibility.
- Durable powder coat finish in standard Dark Bronze or Black for long-term outdoor appearance.
- Backed by a 1-year manufacturer warranty.
Specifications
- Total Pole Height: 12′
- Pole Width: 4″ square
- Steel Thickness: 11 gauge
- Segment Length: 4′
- Handhole Size: 3″ x 5″
- Handhole Location: 18″ from base
- Base Plate: 10″ square, 0.75″ thick
- Bolt Circle: 8-1/2″ (range 8″-11″)
- Anchor Bolts: 3/4″ x 17″ x 3″ (set of 4)
- Bolt Projection: 3.75″
- Maximum Luminaire Weight: 100 lbs
- Total Pole Weight: 100 lbs
- Maximum EPA at 140 mph: 15.0 ft²
Common Uses
Ideal for parking lots, walkways, commercial campuses, retail centers, and general site lighting projects where easier pole handling and reliable structural support are required.
