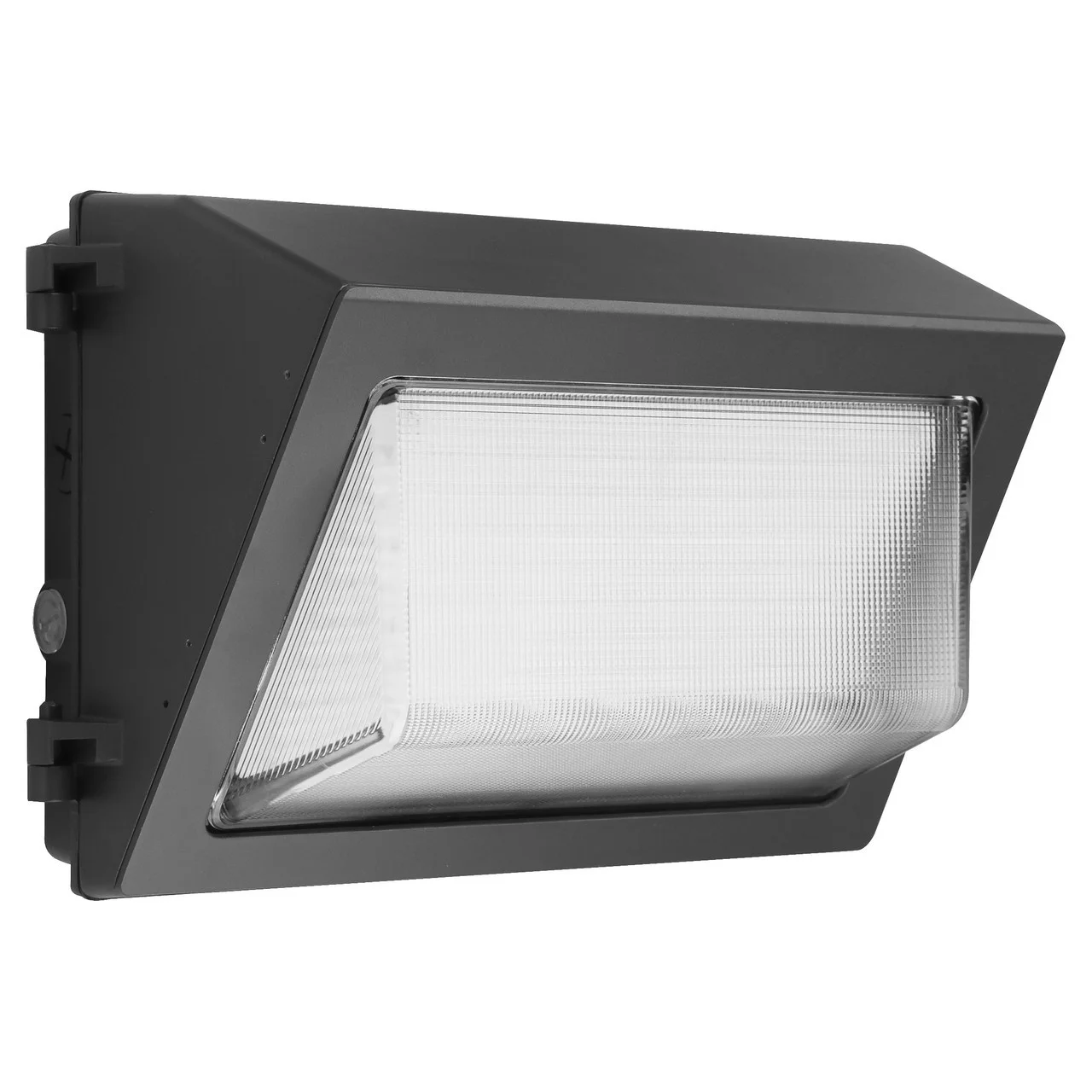

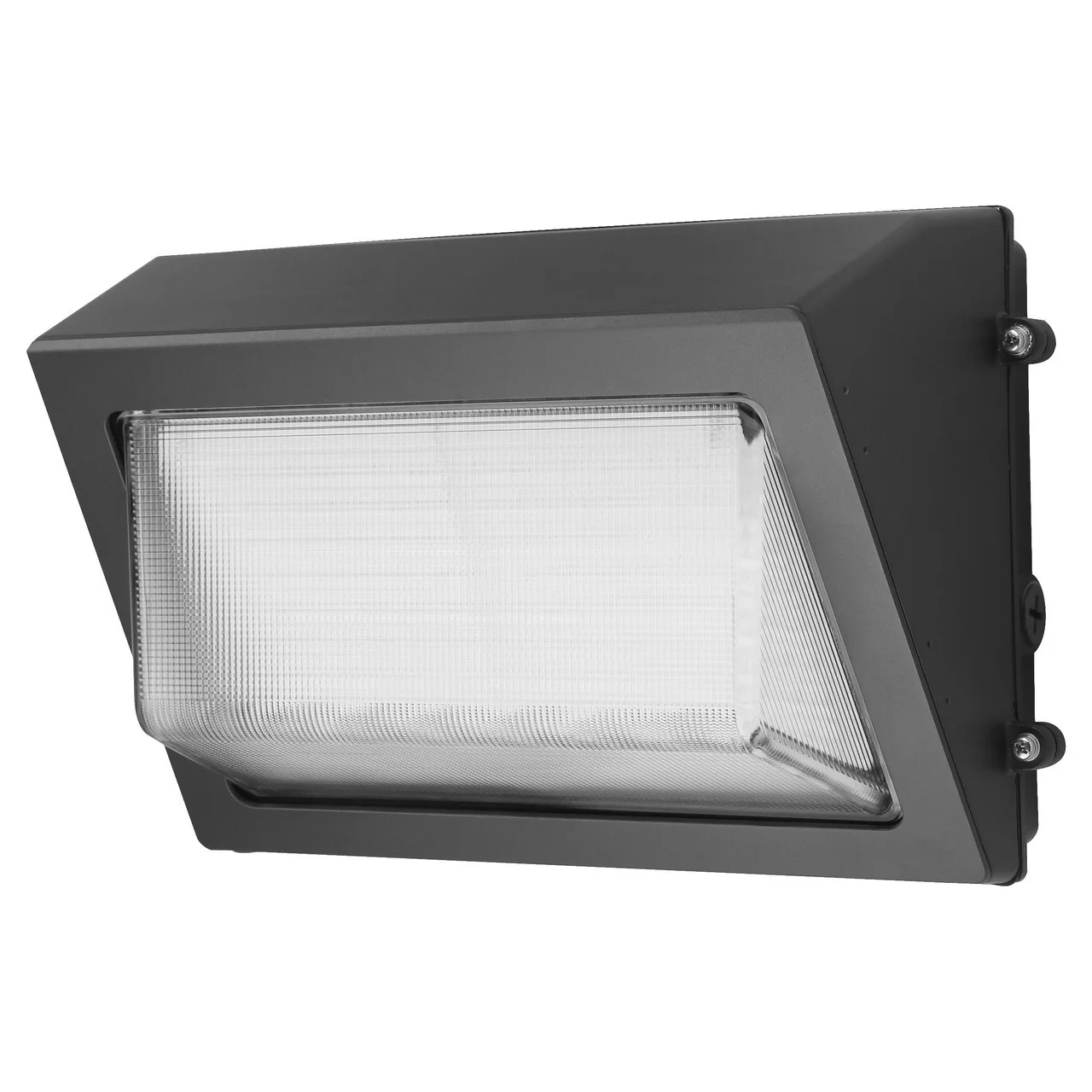

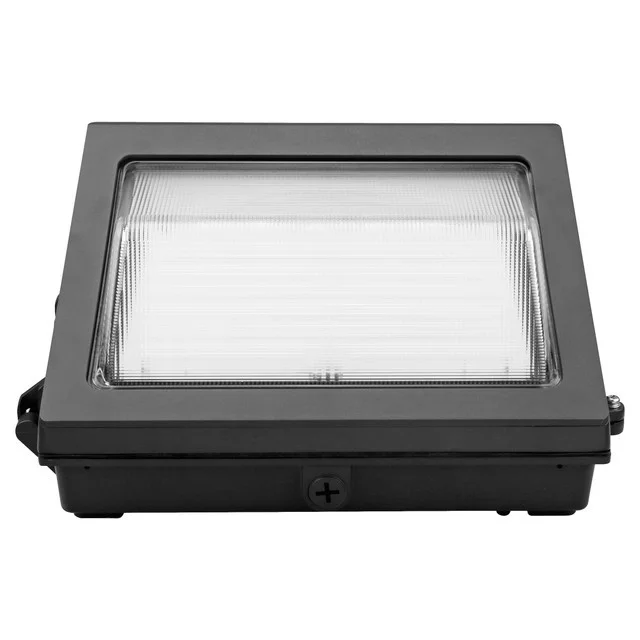

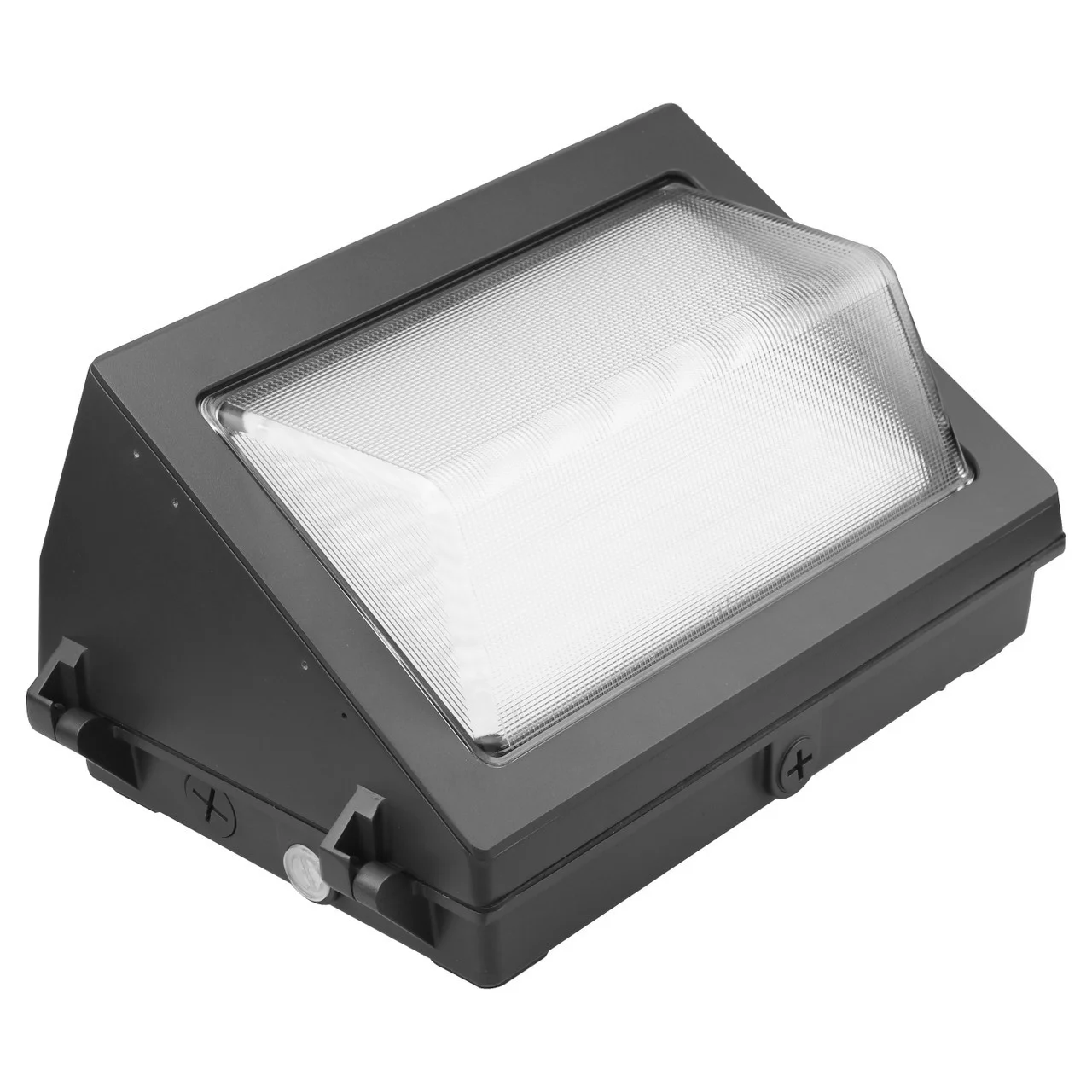

The ESL Vision Wall Pack Series is a versatile exterior lighting solution designed for commercial and industrial perimeter illumination. This 7th generation model combines selectable wattage, selectable CCT, and selectable beam spread in one fixture to simplify stocking and field setup. It is a core lineup option for projects needing dependable performance, controls flexibility, and long service life.
Key Features and Benefits
- Three power levels in one fixture (40W/60W/80W) for easier on-site light level tuning
- Selectable 3000K, 4000K, or 5000K color temperature to match site visibility and comfort goals
- Adjustable beam distributions (60°/90°/110°) to optimize throw and coverage
- Integrated on/off photocell for automatic dusk-to-dawn operation
- 0-10V dim-to-off capability supports advanced energy-saving controls
- DLC Premium and UL Certified design with a 5-year warranty for project confidence
Specifications
- Lumen Output: 11600
- Efficacy (lm/W): 145
- Voltage: 120-277V
- Frequency (Hz): 50/60
- CRI: 80+
- Power Factor: >0.9
- THD: <20%
- Operating Temperature: -40°F to 122°F (-40°C to 50°C)
- Surge Protection: 6kV driver
- Rated Life (L70): 145000 hours
- Dimensions: 14.36″ x 9.30″ x 7.45″
- Weight: 8.2 lbs
- Default Settings: 80W, 5000K, 110° beam angle
Common Uses
Ideal for building exteriors, loading areas, walkways, service entrances, parking perimeters, and general security lighting in commercial, municipal, and light industrial environments.
