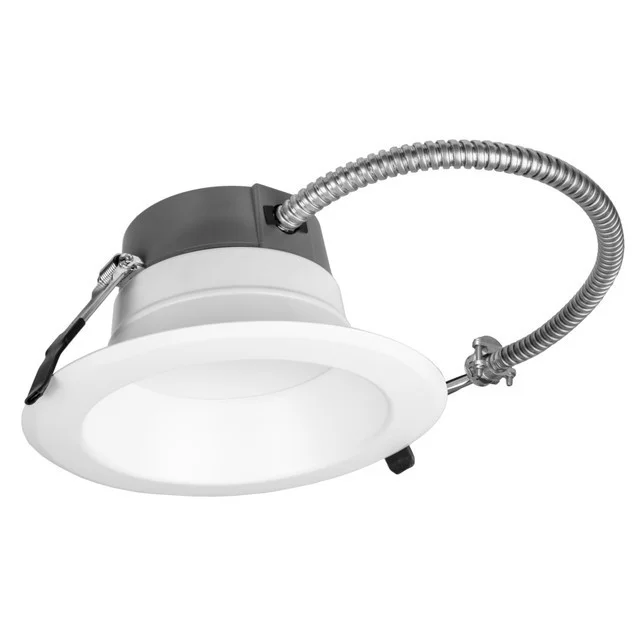

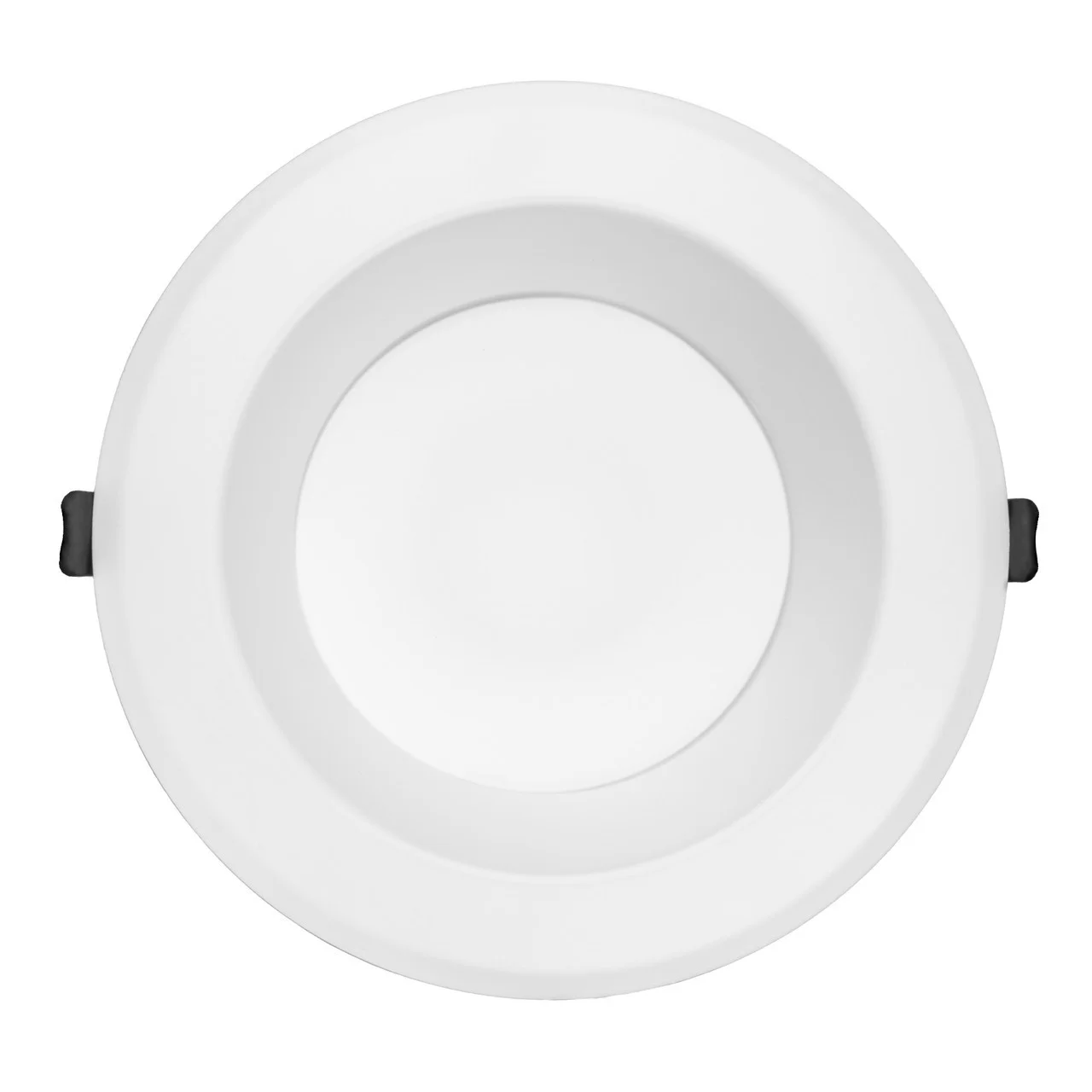

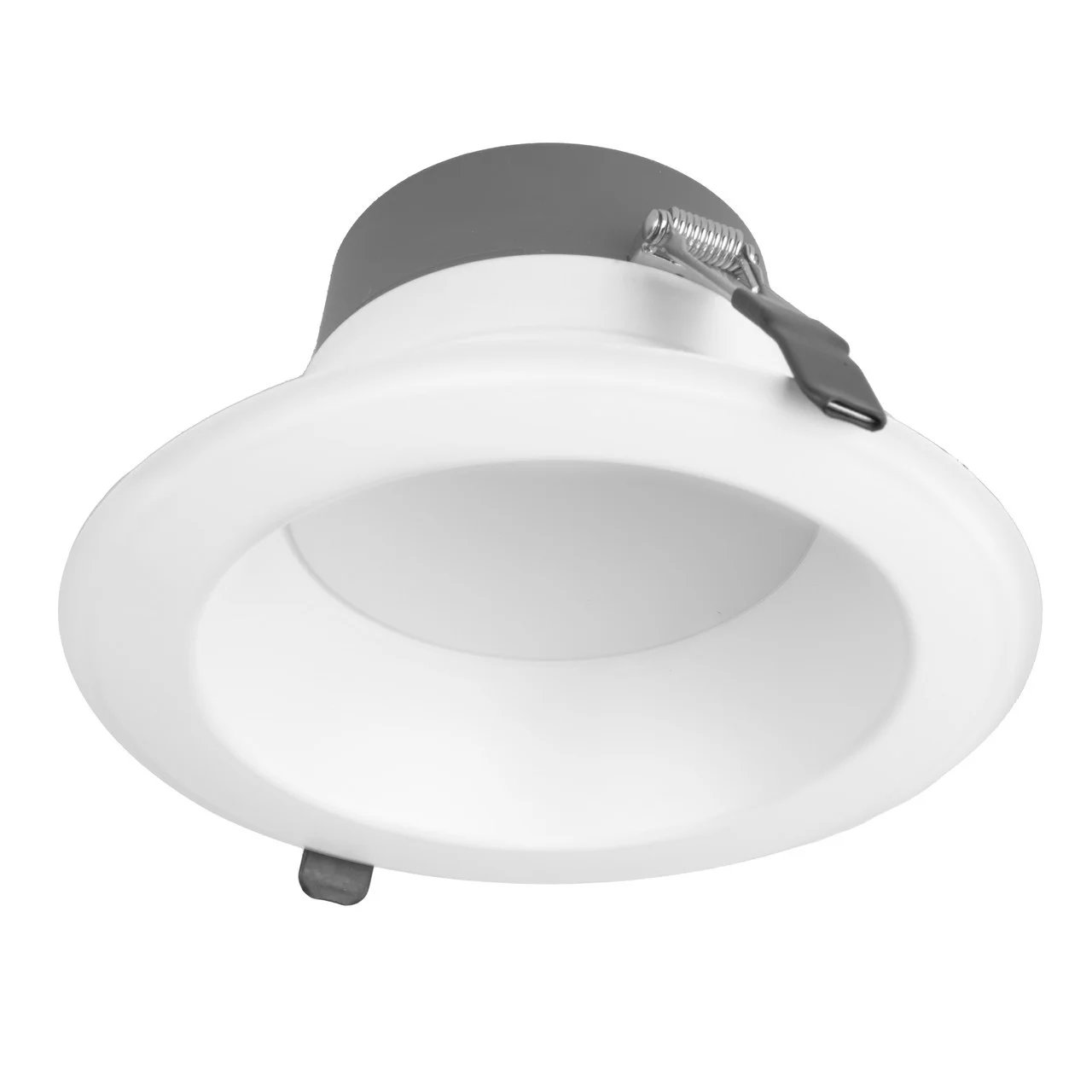

The ESL Vision Optus Series 6″ recessed can light is a flexible, multi-setting downlight designed for projects that need one fixture to cover multiple output and color temperature requirements. As part of ESL’s configurable Optus lineup, it simplifies inventory while delivering high-quality illumination for new construction and retrofit applications.
Key Features and Benefits
- 5 selectable wattage settings let you fine-tune light levels on site for different ceiling heights and tasks.
- 5 selectable CCT options provide adaptable ambiance from warm to daylight tones in one fixture.
- Wet location rated construction supports dependable use in moisture-prone environments.
- High 90+ CRI improves visual clarity and color appearance in occupied spaces.
- Energy Star, ETL, JA8, and Title 24 compliance helps meet project code and efficiency goals.
- Backed by a 5-year warranty for long-term confidence.
Specifications
- Lumen Output: 500-900-1200-1600-2000
- Wattage: 5W-9W-12W-16W-20W
- Voltage: 120-277V
- Color Temperature: 3000K-3500K-4000K-5000K-6500K
- Efficacy: up to 100 lm/W
- Dimming: 0-10V
- Power Factor: >0.98
- Frequency: 50/60 Hz
- Rated Life: 50000 hours
- Operating Temperature: -4°F to 104°F
- Fixture Dimensions: Ø8.31″ x 4.38″
- Cutout: Ø6.2″-7.3″
- MC Conduit Length: 17.75″
- Housing Material: Cast aluminum housing and trim
Common Uses
Ideal for offices, corridors, hospitality spaces, multifamily common areas, retail interiors, bathrooms, covered exterior soffits, and other locations requiring selectable output, tunable white light, and wet-rated recessed illumination.
