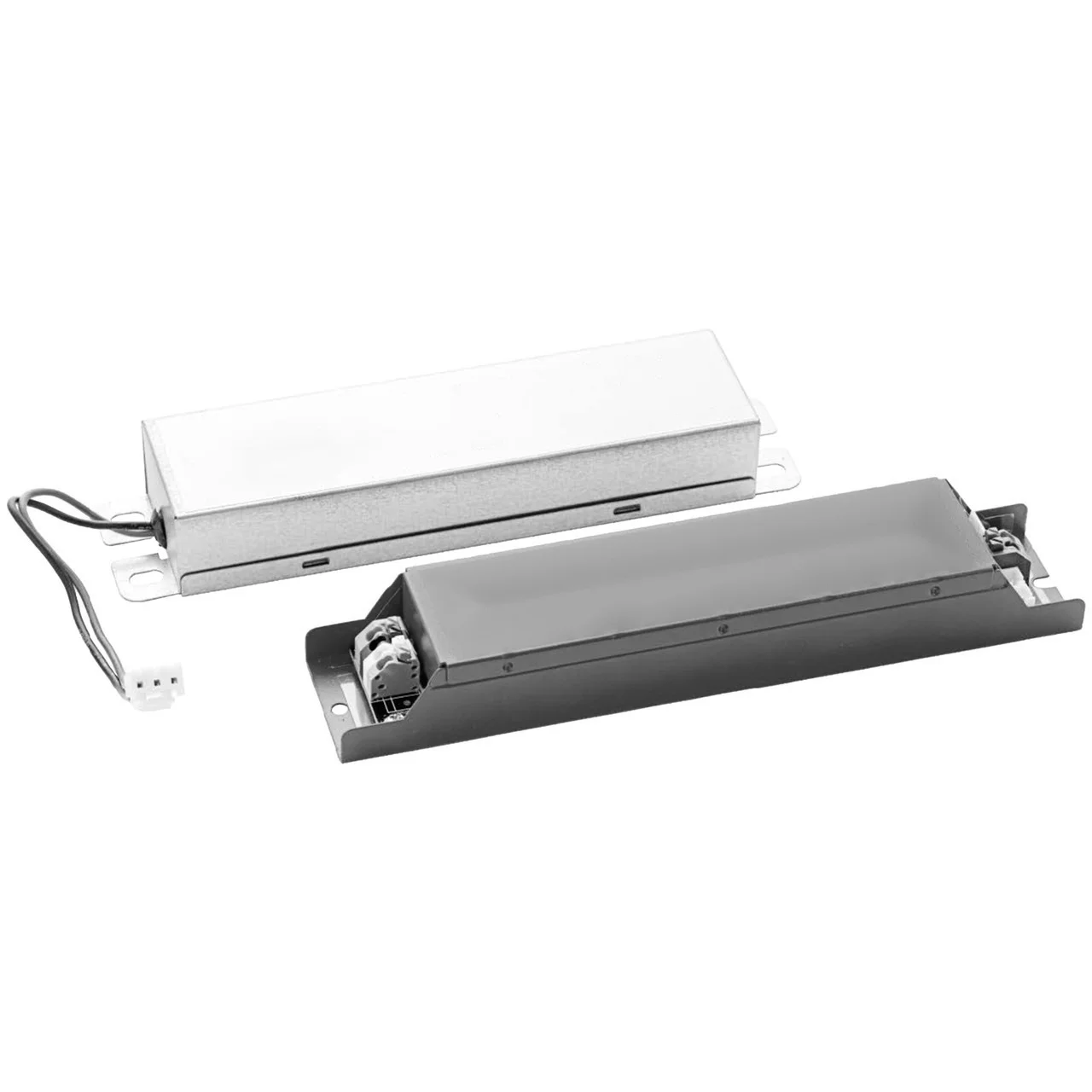

The ESL Vision ESL-EMG-SL6-OTB-18W is a slim-profile LED emergency driver designed to keep luminaires operating during power loss. As part of the SL6 emergency series, it delivers dependable 90-minute constant-power backup for commercial and industrial life-safety lighting applications.
Key Features and Benefits
- Delivers consistent 18W emergency output for full 90-minute egress illumination
- Wide 100-347VAC universal input supports use across varied building power systems
- Integrated monthly and annual auto-test functionality helps reduce maintenance effort
- Long-life lithium-ion battery platform supports over 1,000 charging cycles
- Compliant with UL 924 and CSA C22.2 No. 141 emergency lighting requirements
- Backed by a 5-year warranty for added project confidence
Specifications
- Input Voltage: 100-347VAC, 50/60Hz
- AC Input Power Rating: 10W
- Emergency Output Power: 18W max
- Output Voltage: 170VDC
- Emergency Operation: 90 minutes
- Charging Time: 24 hours
- Operating Temperature: 41° to 122°F (5° to 50°C)
- Driver Dimensions: 7.32″ x 1.50″ x 0.99″
- Battery Dimensions: 7.07″ x 1.63″ x 0.99″
- Weight: 1.54 lbs
Common Uses
Ideal for emergency backup in LED fixtures across offices, schools, healthcare facilities, retail spaces, corridors, stairwells, and other code-required egress paths where dependable life-safety illumination is essential.
