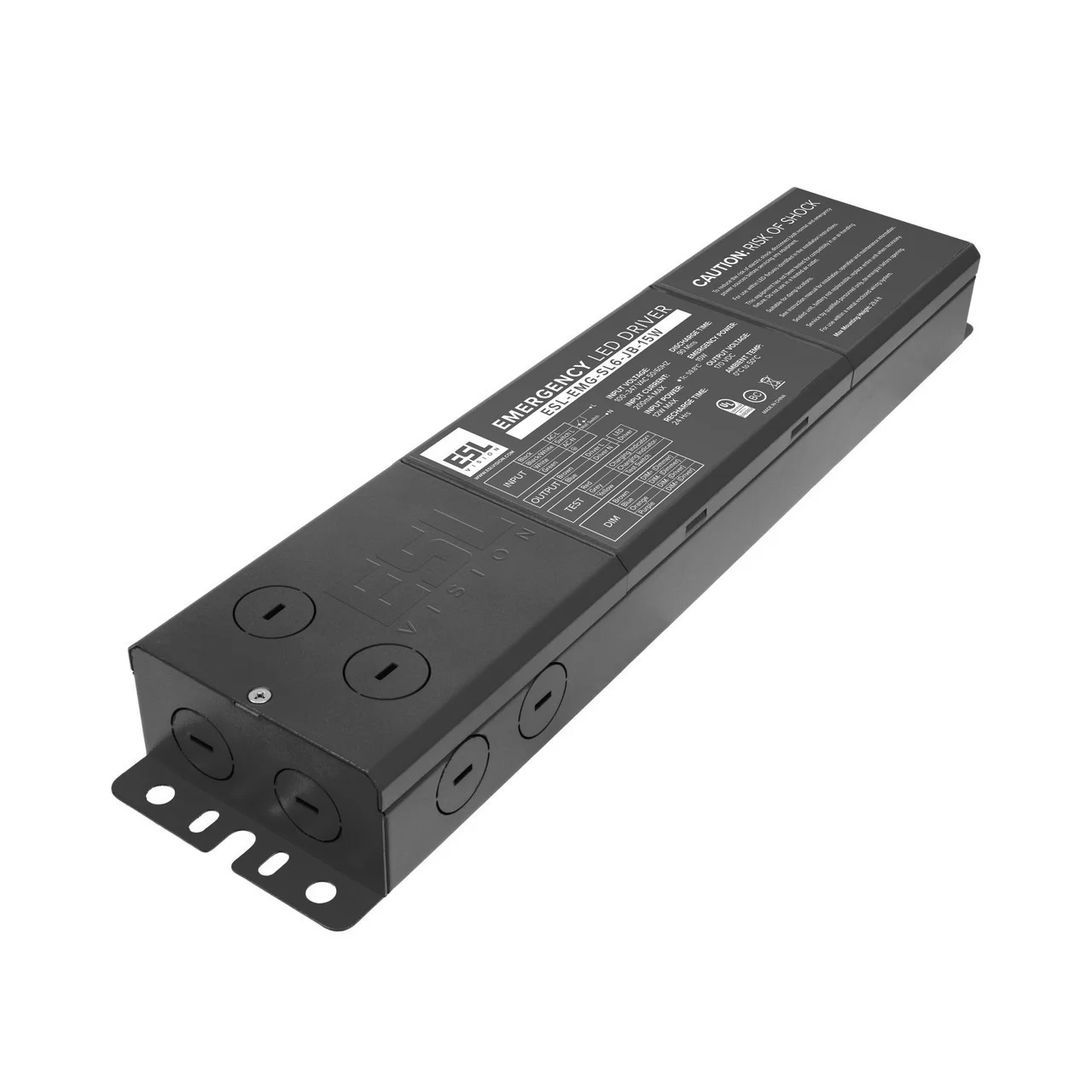

The ESL Vision ESL-EMG-SL6-JB-8W is a compact LED emergency driver designed to keep luminaires operating during power loss. As part of ESL Vision’s SL6 emergency lineup, it delivers dependable 90-minute backup performance for commercial and industrial life-safety lighting applications.
Key Features and Benefits
- Provides constant 8W emergency output for consistent egress illumination during outages.
- Integrated monthly and yearly auto-test functionality helps reduce routine maintenance effort.
- Supports both 0-10V dimmable and non-dimming fixture wiring configurations for flexible retrofit or new install use.
- Field or factory install capable with UL 924 and CSA C22.2 No. 141 emergency lighting compliance.
- Meets CEC Title 20 and NEC emergency lighting requirements for code-focused projects.
- Backed by a 5-year warranty for long-term reliability.
Specifications
- Input Voltage: 100-347V
- Frequency: 50/60
- Emergency Output Power: 8W
- Output Voltage: 170VDC
- Emergency Operation: 90 minutes
- Charging Time: 24 hours
- Charging Cycles: 1000
- Operating Temperature: 32°F to 122°F (0°C to 50°C)
- Dimensions: 14.17″ x 3.15″ x 1.57″
- Weight: 2.54 lbs
- Battery Type: Lithium
Common Uses
Ideal for commercial buildings, schools, healthcare facilities, corridors, stairwells, and other code-required emergency egress paths where LED fixtures need dependable battery backup operation.
