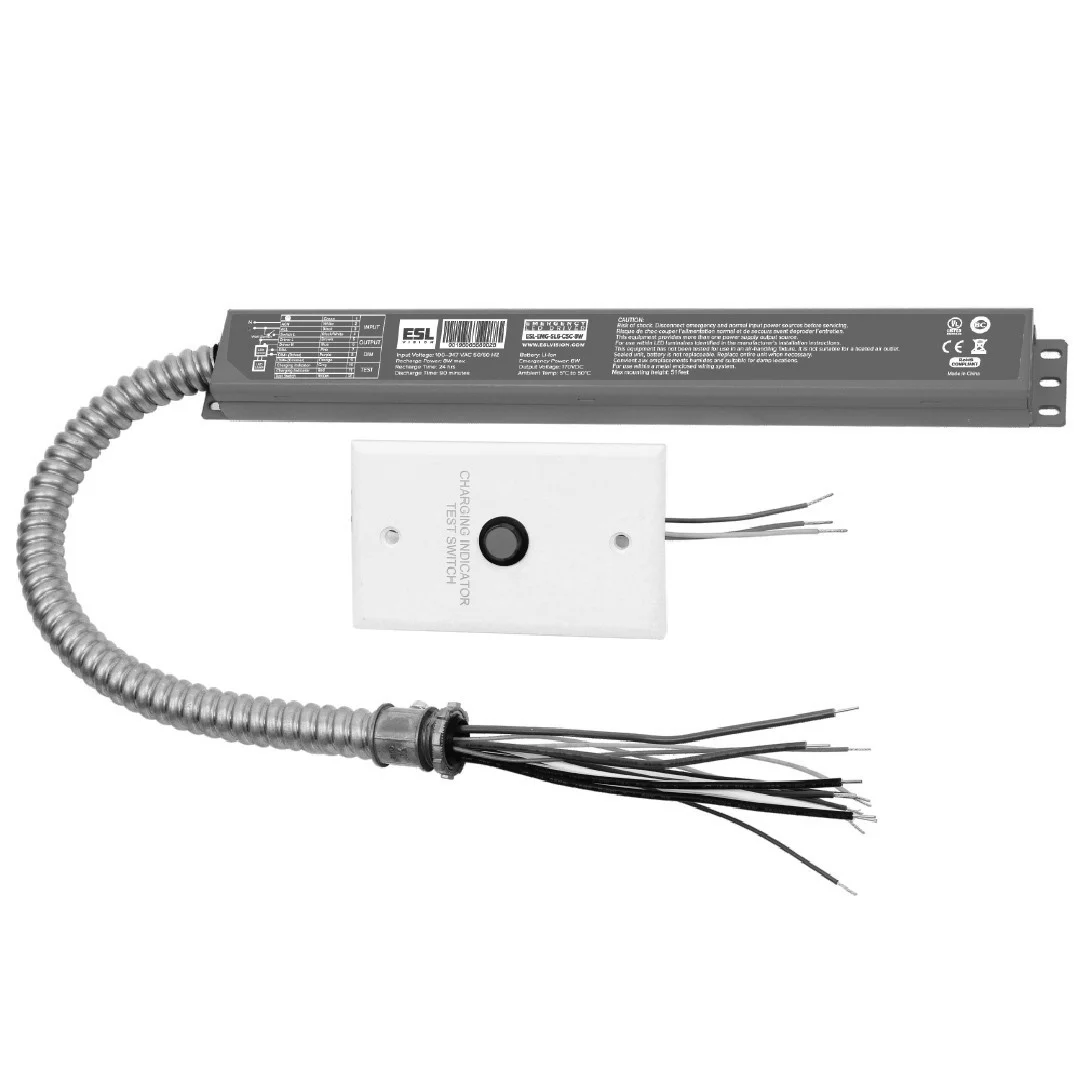

The ESL Vision ESL-EMG-SL6-CSC-18W is a compact LED emergency driver designed to keep luminaires operating during power loss. As part of ESL Vision’s emergency backup lineup, it delivers dependable 90-minute egress illumination with constant output performance for code-driven projects.
Key Features and Benefits
- Provides consistent 18W emergency output for up to 90 minutes to support safe path-of-egress lighting.
- Wide 100-347V universal input supports use across varied commercial electrical systems.
- Built-in monthly and annual auto-test functionality helps reduce routine maintenance effort.
- Includes illuminated test switch and wall plate for quick status visibility and manual testing.
- Designed for field or factory installation with emergency lighting compliance support.
- Backed by a 5-year warranty and certified to UL, CSA, FCC, and RoHS requirements.
Specifications
- Wattage: 18W emergency output (max) | 10W AC input power rating
- Voltage: 100-347V
- Frequency (Hz): 50|60
- Output Voltage Range: 170VDC
- Emergency Operation: 90 minutes
- Charging Time: 24 hours
- Charging Cycles: 1000
- Max Ambient Temperature: 50°C (122°F)
- Operating Temperature: 5°C to 50°C (41°F to 122°F)
- Dimensions: 13.59″ x 1.54″ x 0.99″
- Weight: 2.66 lbs
- Output Protection: Short-circuit protection and open-load protection
Common Uses
Ideal for commercial and institutional indoor fixtures requiring emergency backup, including offices, schools, healthcare spaces, corridors, stairwells, and other egress applications using compatible AC input lamps and DC output drivers.
