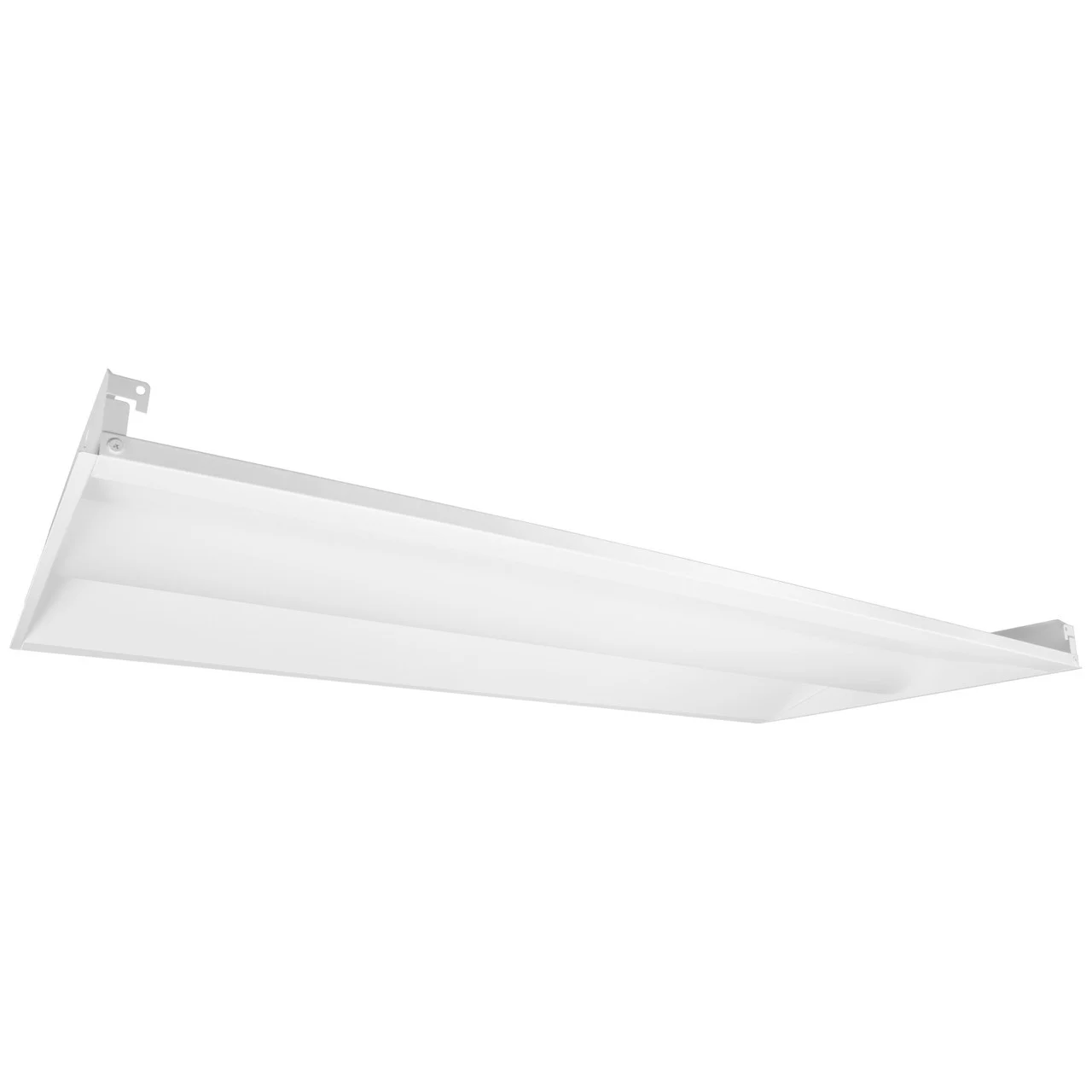

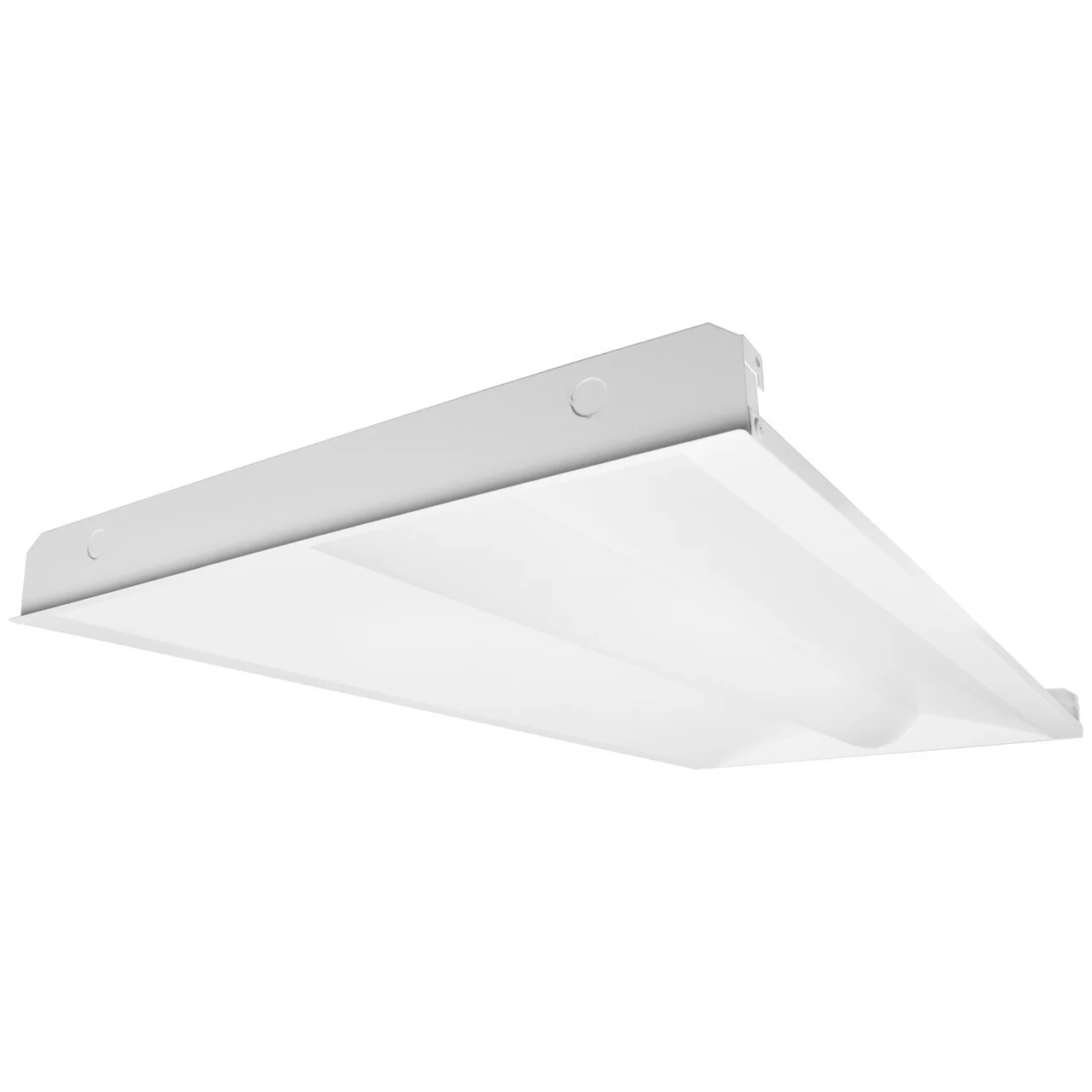

The ESL Vision LED 830 Troffer Series is a contractor-focused 2×4 lay-in solution designed for flexible commercial lighting upgrades and new construction. This configurable fixture combines selectable wattage and CCT in one SKU, helping simplify inventory while maintaining strong performance across office, education, and institutional spaces.
Key Features and Benefits
- Field-adjustable output with three wattage settings (25W/36W/50W) to match light levels and energy goals
- Selectable 3500K/4000K/5000K color temperatures for adaptable visual comfort across applications
- Smooth 0-10V dimming support for enhanced control and energy savings
- High efficacy performance up to 140 lm/W to reduce operating costs
- Long 100,000-hour L70 life for reduced maintenance cycles
- Backed by a 5-year warranty and UL Listed construction for dependable commercial use
Specifications
- Lumen Output: 7000
- Input Voltage: 120-277V
- Input Frequency: 50/60
- CRI: 80+
- Beam Angle: 110°
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Power Factor: >0.9
- THD: <20%
- Dimensions: 47.72″ x 23.74″ x 1.97″
- Emergency Option (EM5): 5W, 90-minute minimum
Common Uses
Ideal for offices, schools, healthcare support spaces, retail back-of-house areas, and other indoor commercial grid-ceiling environments requiring efficient, tunable general illumination.
