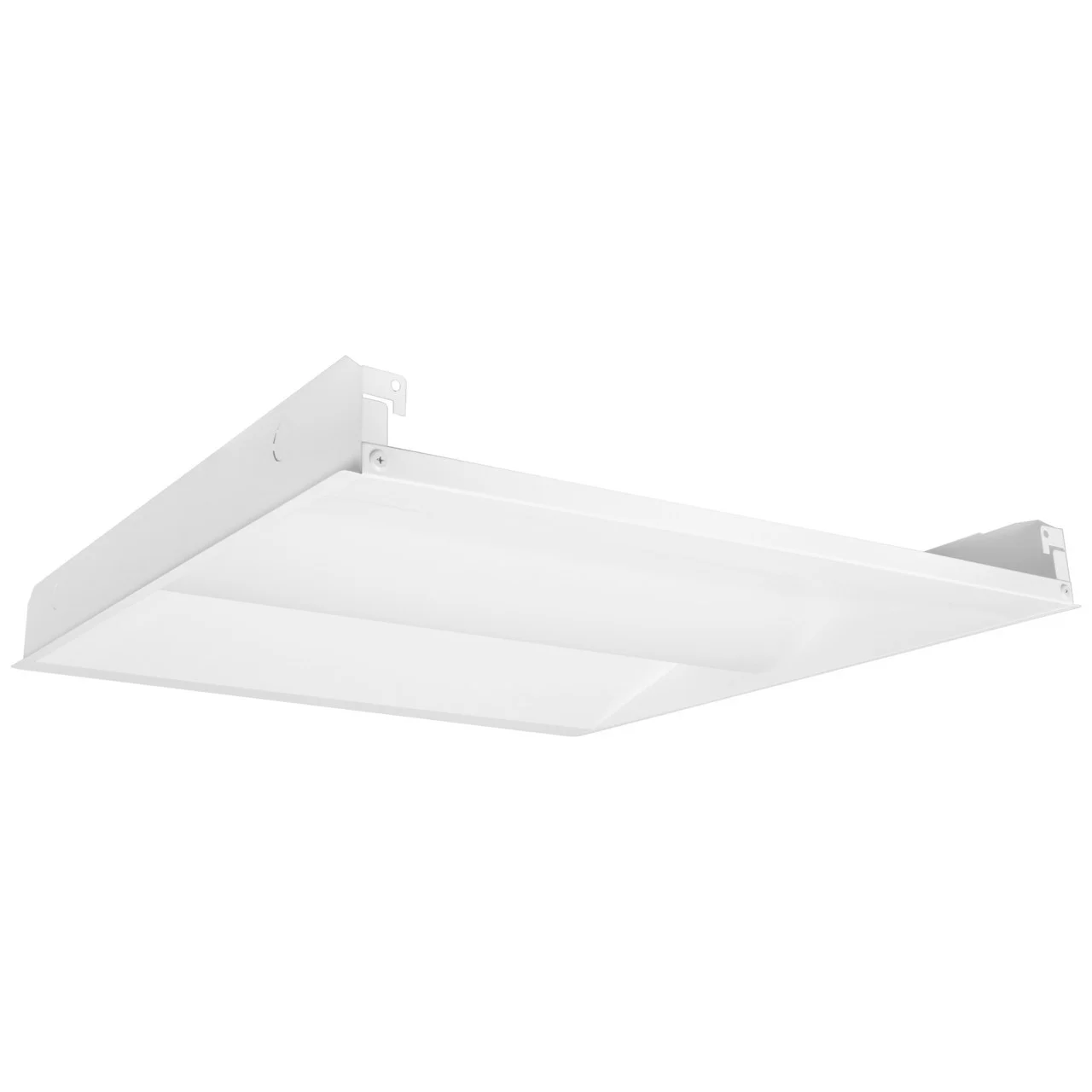

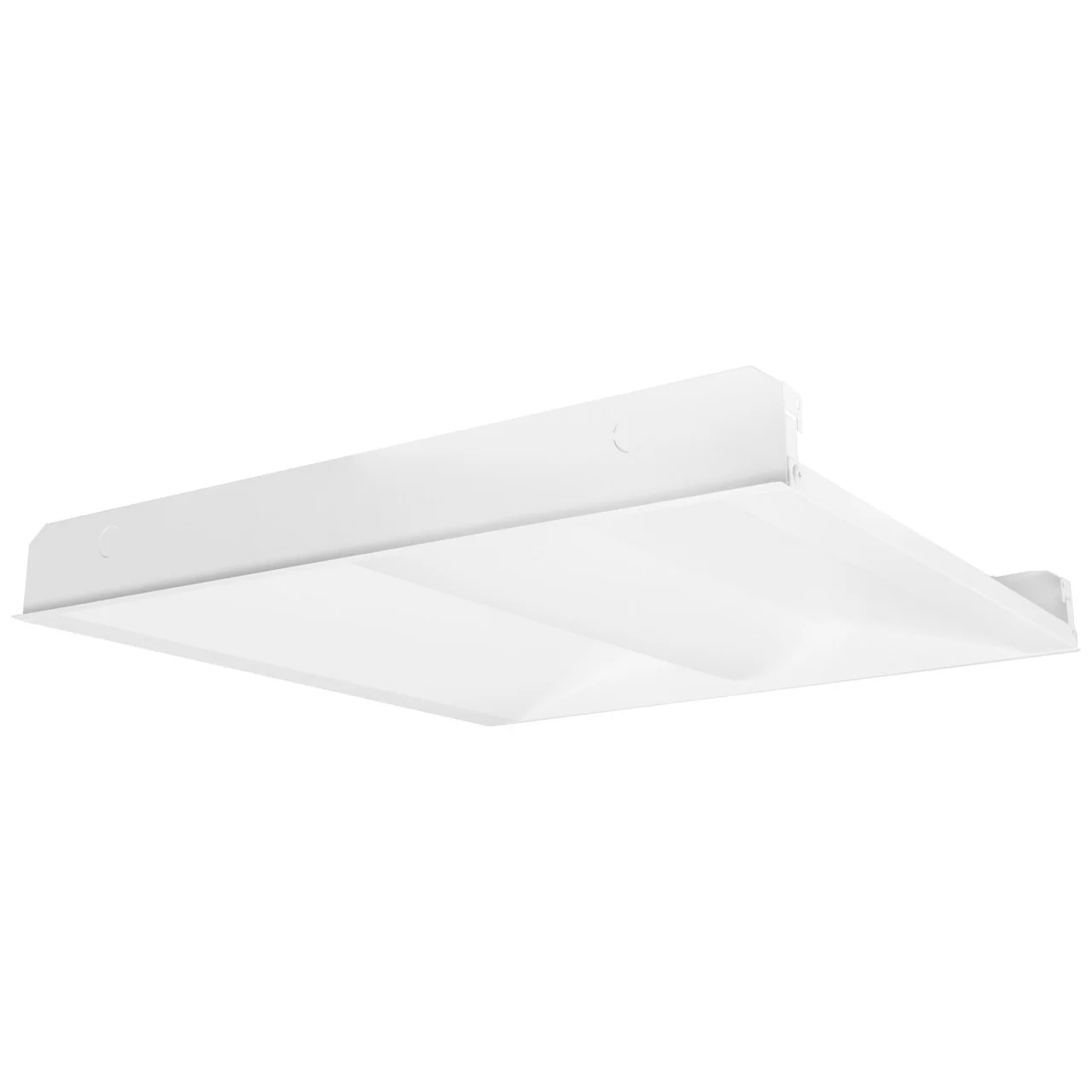

The ESL Vision LED 830 Troffer Series is a versatile commercial-grade lay-in fixture designed for modern interior lighting upgrades and new construction. This 2×2 Contractor Series model combines field-selectable wattage and CCT in one SKU, helping streamline inventory while delivering dependable performance across office, education, and retail spaces.
Key Features and Benefits
- Selectable output with 25W, 30W, or 35W settings to match light levels and energy goals
- 3-CCT flexibility (3500K/4000K/5000K) supports warm to cool visual environments
- High efficacy up to 140 lm/W helps reduce operating costs
- Standard 0-10V continuous dimming for smooth control integration
- Long 100,000-hour L70 life minimizes maintenance cycles
- Backed by a 5-year warranty with UL certification and DLC Premium listing shown in product literature
Specifications
- Lumen Output: 7000
- Input Voltage: 120-277V
- Input Frequency: 50/60
- CRI: >80
- Beam Angle: 110°
- Power Factor: >0.9
- THD: <20%
- Operating Temperature: -4°F to 104°F (-20°C to 40°C)
- Dimensions: 23.74″ x 23.74″ x 1.97″
Common Uses
Ideal for offices, schools, healthcare support areas, corridors, conference rooms, and other indoor commercial grid-ceiling applications requiring efficient, tunable general illumination.
