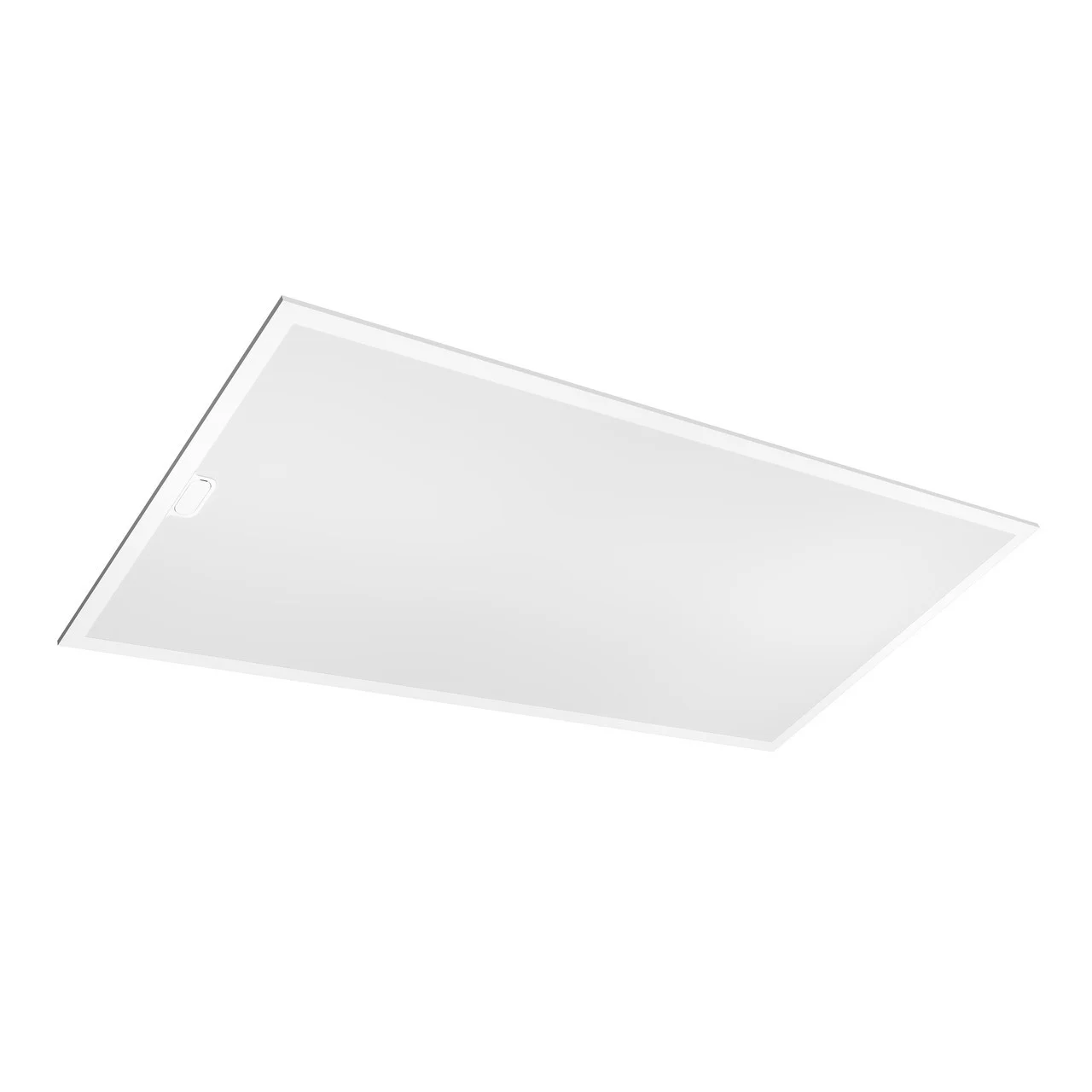

The ESL Vision IntelliSense™ Backlit Panel is a versatile 2×4 architectural troffer designed for modern commercial interiors. As part of ESL Vision’s IntelliSense lineup, it combines field-selectable wattage and CCT with sensor-ready functionality to simplify specification and stocking. Its slim backlit design provides uniform illumination while supporting long-term energy savings.
Key Features and Benefits
- Selectable output lets you tune light levels with 30W, 40W, or 50W settings in one fixture
- 3-CCT flexibility (3500K/4000K/5000K) adapts to offices, schools, healthcare, and retail environments
- Integrated 0-10V dimming supports smooth control and additional energy optimization
- IntelliSense sensor-enabled platform supports occupancy and daylight harvesting upgrades
- Damp-location rated construction broadens installation options in interior conditioned spaces
- Long 100,000-hour L70 life and 5-year warranty help reduce maintenance and lifecycle costs
- DLC Premium and UL Certified credentials support rebate and code-driven projects
Specifications
- Lumen Output: up to 6650
- Voltage: 120-277V
- Frequency: 50/60
- Power Factor: >0.9
- THD: <15
- CRI: >80
- Efficacy: up to 154 lm/W
- Operating Temperature: -4°F to 122°F (-20°C to 50°C)
- Dimensions: 47.68″ x 23.74″ x 1.42″
- Weight: 9.22 lbs
Common Uses
Ideal for offices, schools, healthcare facilities, corridors, conference rooms, and other commercial grid-ceiling applications requiring efficient, uniform, and configurable ambient lighting.
