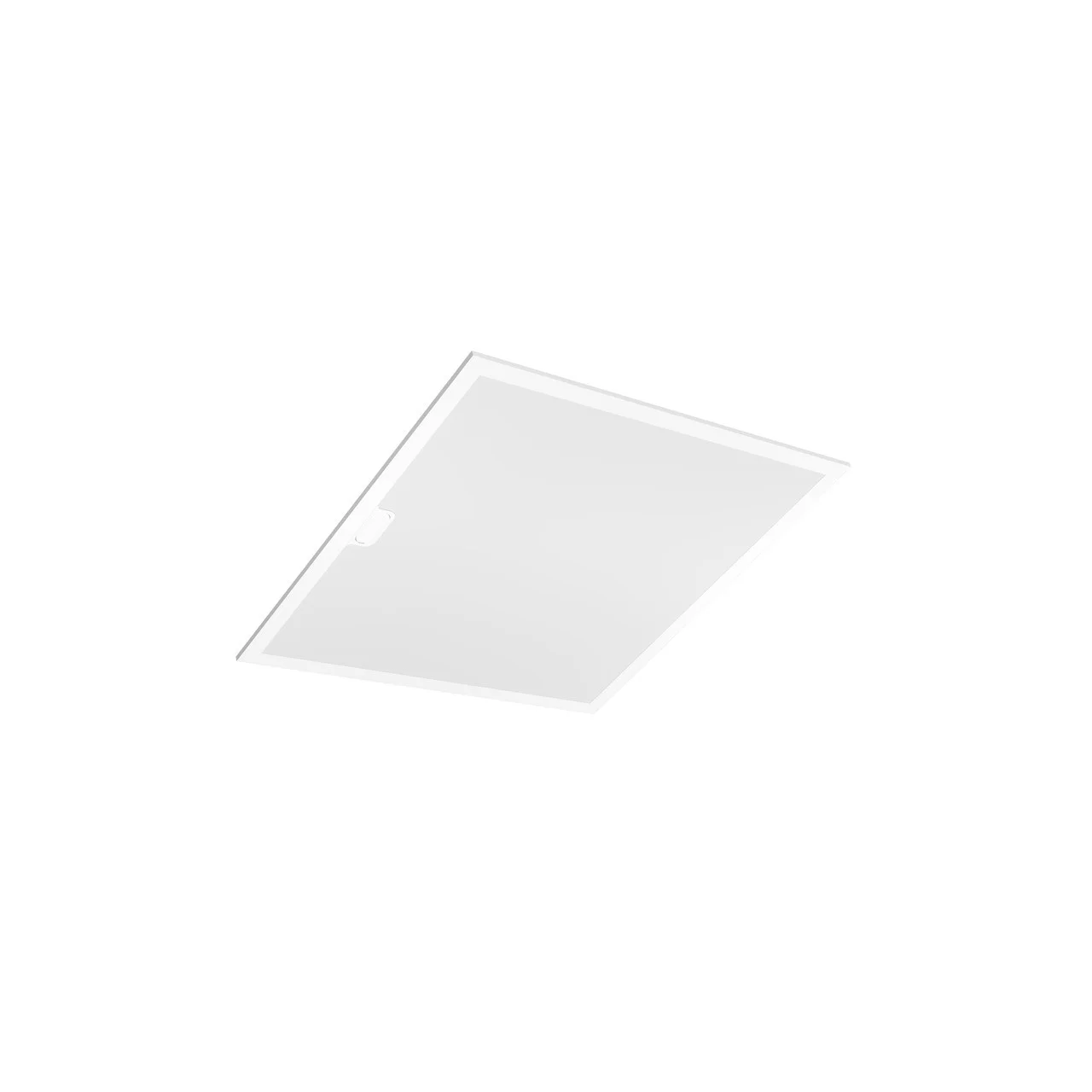

The ESL Vision IntelliSense™ Backlit Panel is a versatile commercial-grade lay-in fixture designed for modern grid ceilings and retrofit projects. As part of ESL Vision’s IntelliSense lineup, it combines selectable wattage and CCT flexibility with uniform backlit performance to simplify stocking and installation.
Key Features and Benefits
- Field-adjustable output with multi-watt (20W/30W/40W) and multi-CCT (3500K/4000K/5000K) selection for project flexibility
- Backlit optical design helps deliver smooth, even illumination with reduced hot spots
- 0-10V dimming support enables energy savings and lighting control integration
- Damp location suitability supports use in a wider range of indoor commercial environments
- Long 100,000-hour L70 life and 5-year warranty help reduce maintenance costs
- UL Listed construction with DLC Premium listing (model dependent) for code and rebate-oriented projects
Specifications
- Lumen Output: up to 5,143 lm
- Input Voltage: 120-277VAC
- Input Frequency: 50/60Hz
- CRI: >80
- Efficacy: up to 143 lm/W
- Power Factor: >0.9
- THD: <15%
- Operating Temperature: -20b0C to 50b0C (-4b0F to 122b0F)
- Dimensions: 23.74″ x 23.74″ x 1.42″
- Weight: 5.78 lbs
Common Uses
Ideal for offices, schools, healthcare spaces, retail areas, and other commercial interiors requiring efficient, low-profile general lighting in 2′ x 2′ suspended ceiling applications.
