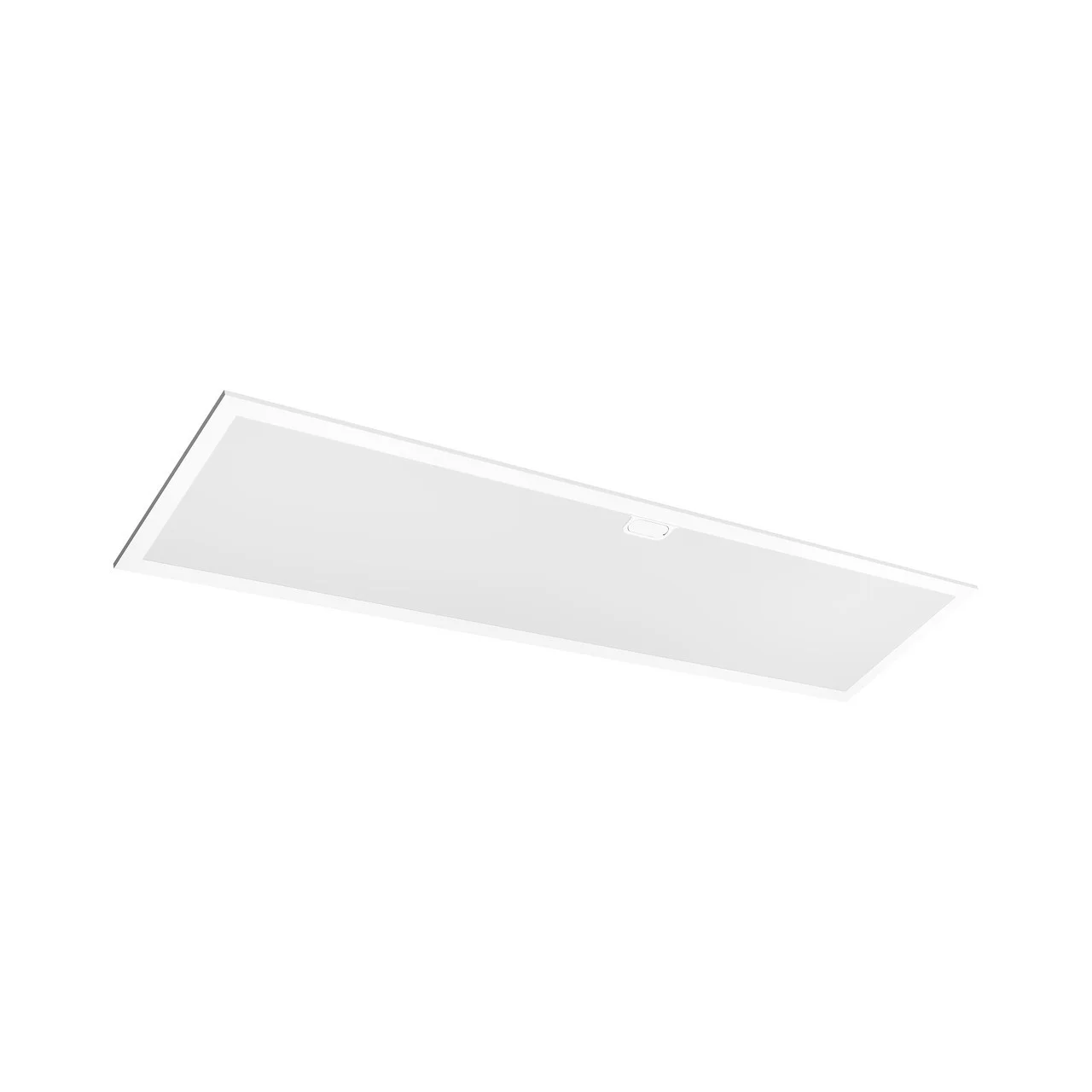

The ESL Vision IntelliSense™ Backlit Panel in the ISS 600 series is a versatile commercial-grade lay-in fixture designed for efficient, uniform illumination in grid ceiling applications. This 1×4 model combines field flexibility with selectable wattage and CCT, making it a strong fit for projects that need adaptable light levels and color appearance. With integrated emergency backup in this configured part number, it also supports life-safety lighting continuity.
Key Features and Benefits
- Selectable output design lets you choose 20W, 30W, or 40W to match application needs and reduce overlighting.
- 3-CCT tuning (3500K/4000K/5000K) simplifies SKU selection and supports varied visual comfort preferences.
- Backlit optical system provides smooth, even illumination for professional interior environments.
- 0-10V dimming compatibility enables energy-saving controls and flexible light-level adjustment.
- EM option included for 90-minute emergency operation with lithium battery technology.
- 5-year warranty coverage supports long-term reliability in commercial installations.
Specifications
- Lumen Output: up to 5,185
- Input Voltage: 120-277V
- Frequency: 50/60Hz
- CRI: >80
- Power Factor: >0.9
- THD: <15%
- Efficacy: up to 143 lm/W
- Rated Life (L70): 100,000 hours
- Operating Temperature: -20b0C to 50b0C (-4b0F to 122b0F)
- Dimensions: 47.68″ x 11.93″ x 1.42″
- Weight: 4.43 lbs
Common Uses
Ideal for offices, schools, healthcare support spaces, retail back-of-house areas, corridors, and other indoor commercial environments requiring efficient, low-profile recessed panel lighting with optional emergency egress support.
