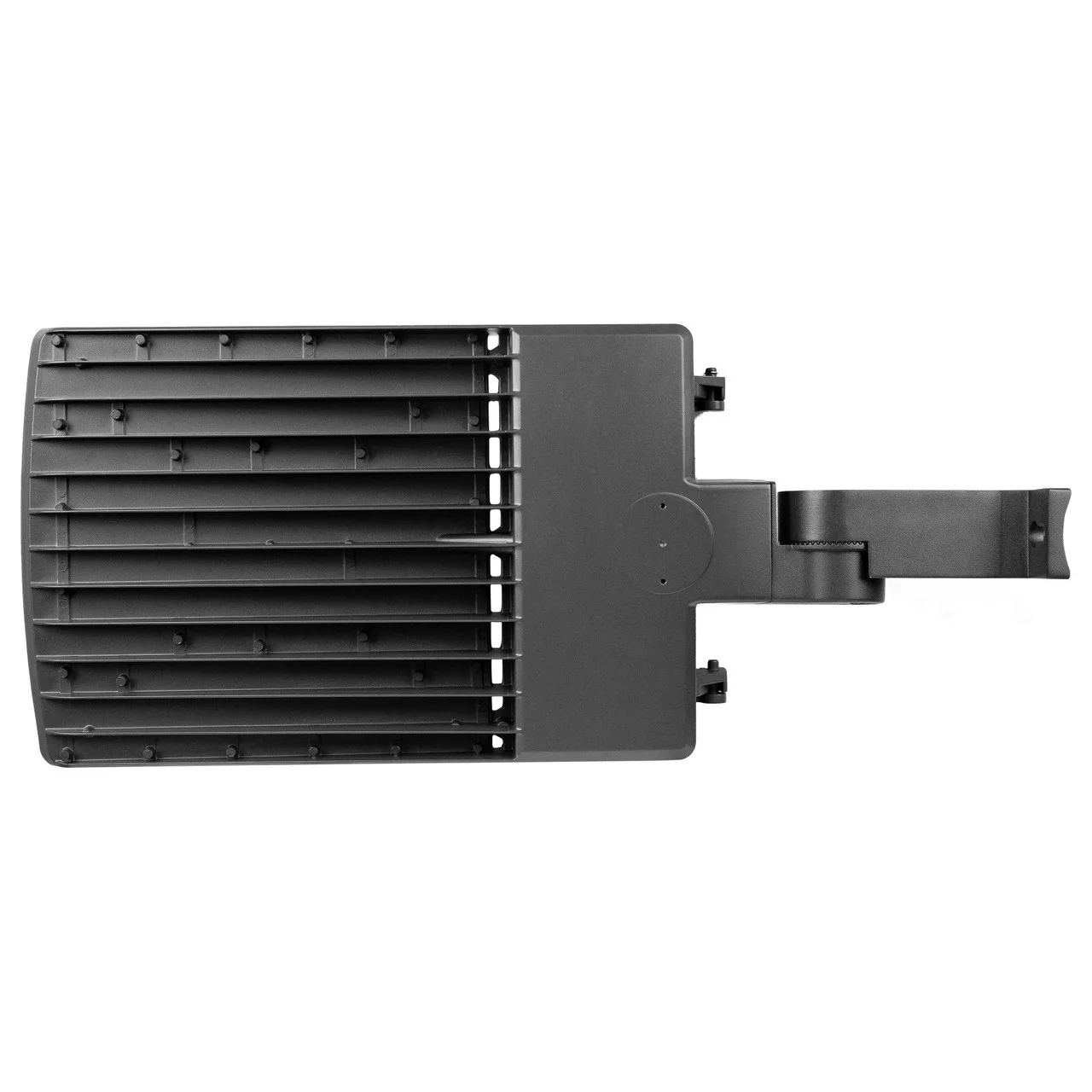

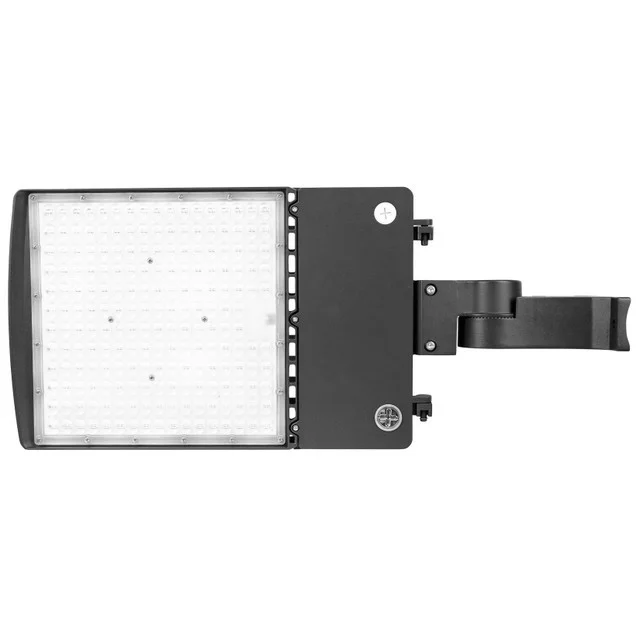

The ESL Vision Area Light Series is a versatile outdoor lighting solution engineered for parking lots, campuses, and perimeter applications. This configurable fixture combines multi-watt and multi-CCT flexibility in one SKU, helping contractors and facility teams simplify inventory while meeting varied site requirements.
Key Features and Benefits
- Field-selectable output with 200W, 240W, or 300W settings for adaptable light levels
- Selectable 3000K/4000K/5000K CCT to match visual comfort and security needs
- Rugged die-cast aluminum body with high-quality polycarbonate lens for long-term outdoor durability
- 0-10V dimming with dim-to-off capability for energy savings and control integration
- IP65-rated construction for reliable performance in wet and dusty environments
- Backed by a 5-year warranty and supported by UL certification and DLC Premium listing (model dependent)
Specifications
- Lumen Output: 51000
- Efficacy (lm/W): 170
- Voltage: 120-277V, 277-480V
- Frequency (Hz): 50/60
- CRI: 80
- Power Factor: 0.97|0.92
- THD: 20
- Max Ambient Temperature: 50b0C
- Rated Life (70 Hours): 120000
- Surge Protection: 6kV driver
- Dimensions: 20.05″ x 11.89″ x 2.07″
- Weight: 6.2 lbs
Common Uses
Ideal for parking areas, roadways, building perimeters, commercial complexes, industrial yards, and general area/security lighting where high output, weather resistance, and flexible configuration are required.
