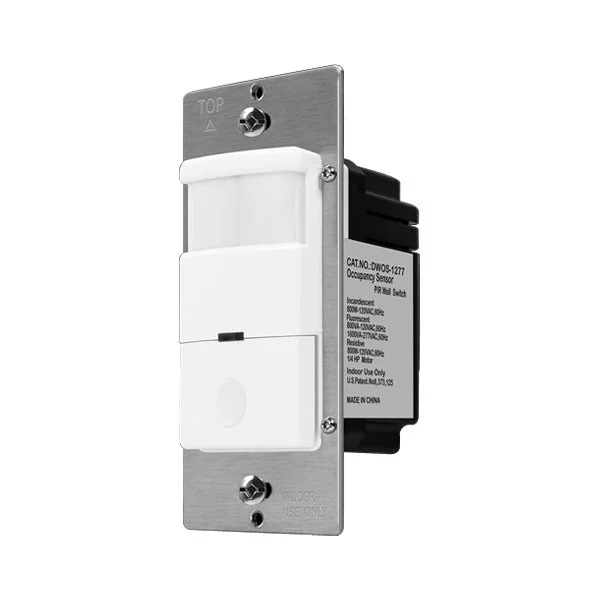

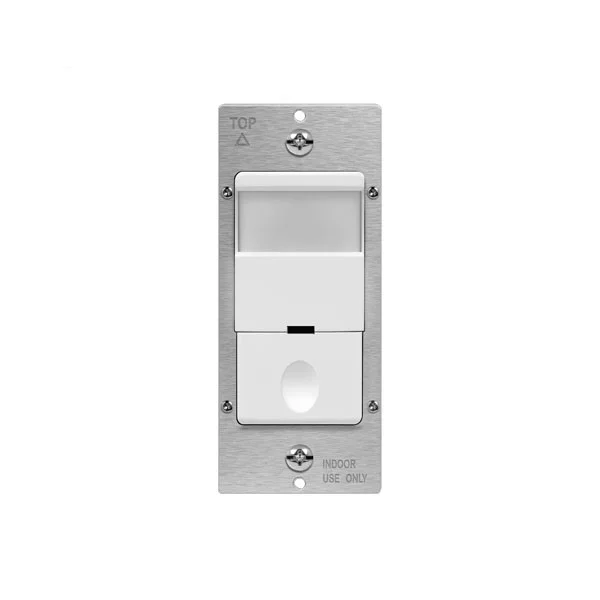

Enerlites 180° PIR Occupancy/Vacancy Motion Sensor Wall Switch – Single Pole

180° PIR occupancy/vacancy motion sensor wall switch, neutral wire required, single pole, white finish, 120/277Vac, 60 Hz voltage, 15 sec to 30 mins time delay, adjustable sensitivity level, adjustable sensitivity settings, light level is adjustable.
DESCRIPTION
The passive infrared sensors work by detecting the difference between heat emitted from the human body in motion and the background space. The sensor switch can turn a load on and hold it as long as the sensor detects occupancy. After no motion is detected for the set time delay, the load turned off automatically. This product has one relay (equal to Single Pole Switch), also includes adjustable Ambient Light Level.
FEATURES

Turn lights ON/OFF automatically (Occupancy Mode)
Manual ON / automatically OFF (Vacancy Mode)
Time delay is adjustable from 15 seconds (test mode) to 30 minutes
Neutral wire required
Zero Crossing for long relay life
Adjustable sensitivity settings
Light level is adjustable

SPECIFICATIONS

Voltage: 120/277Vac, 60 Hz
Incandescent: 800W
Fluorescent: 800VA@120VAC, 1600VA@277VAC
Motor: 1/4 HP
Time delay: 15 Sec to 30 Mins
Light level: 30 Lux – Daylight
Operating Temperature: 32 F to 131 F
