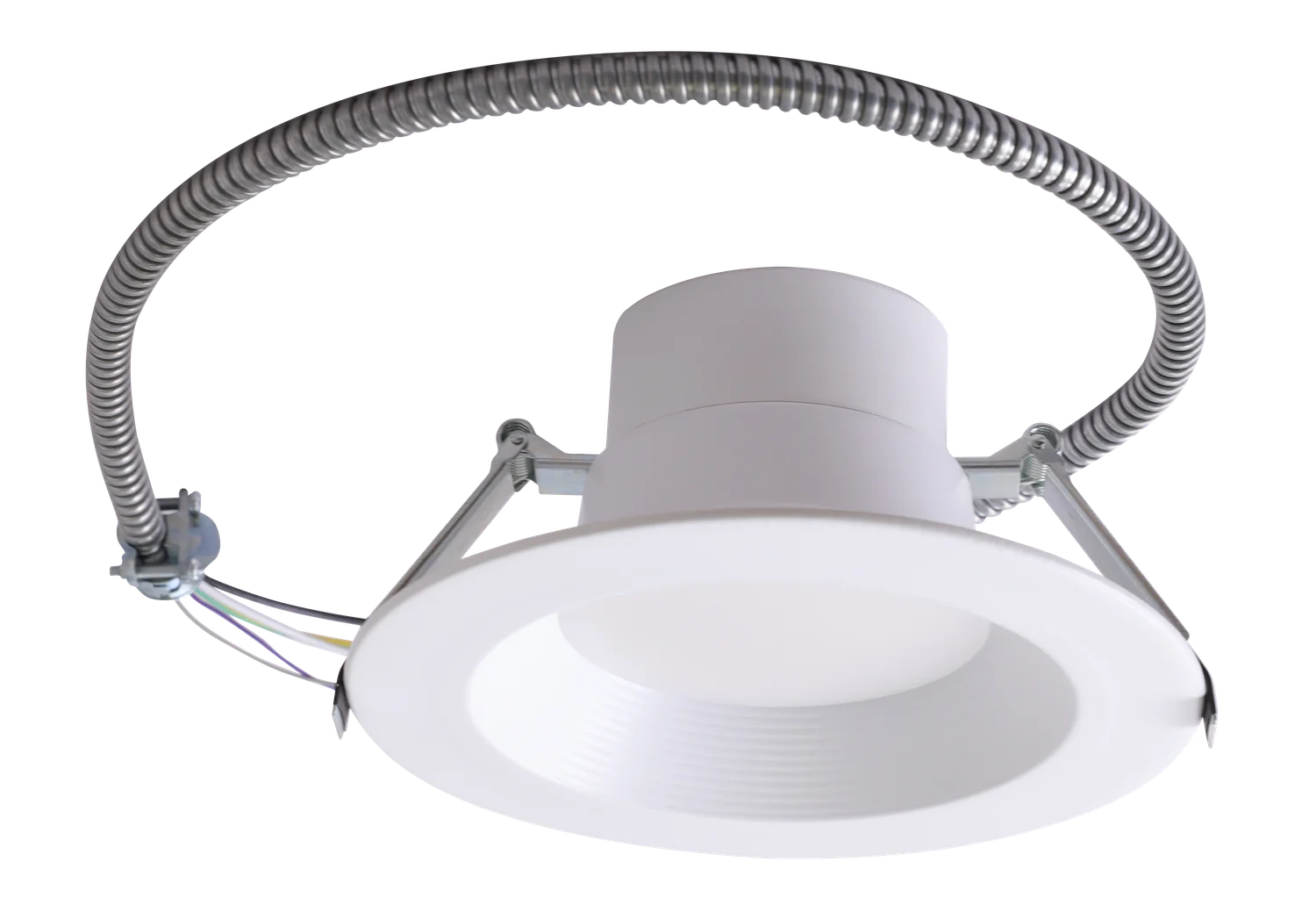

The Energetic Lighting E4DL(M) 6″ downlight is a versatile commercial LED solution designed for both retrofit and new construction projects. Built for broad application flexibility, it combines selectable output and color temperature options with reliable performance for modern code-conscious installations.
Key Features and Benefits
- Field-adjustable light output with three lumen and wattage settings to match project needs
- Selectable CCT (3000K/3500K/4000K) for adaptable visual comfort across spaces
- 0-10V dimming support enables smooth control and energy-saving operation
- High 90 CRI improves color quality for occupant comfort and task visibility
- ETL listed and backed by a 5-year warranty for dependable commercial use
- Spring-arm mounting and integrated flexible conduit pigtail simplify installation
Specifications
- Lumen Output: 1400|1000|800
- Wattage: 17W|12W|10W
- Voltage: 120-347V
- Color Temperature: 3000K|3500K|4000K
- Beam Angle: 100°
- Power Factor: 0.9
- THD: 0.2
- Rated Life (70 Hours): 50000
- Max Ambient Temperature: 113°F
- Minimum Operating Temperature: -13°F
- Dimensions: 8.27″L x 8.27″W x 3.92″H
- Finish / Color: White
Common Uses
Ideal for offices, schools, retail stores, hospitality venues, healthcare facilities, and other commercial interiors requiring efficient, dimmable, and adaptable recessed lighting in damp-location environments.
