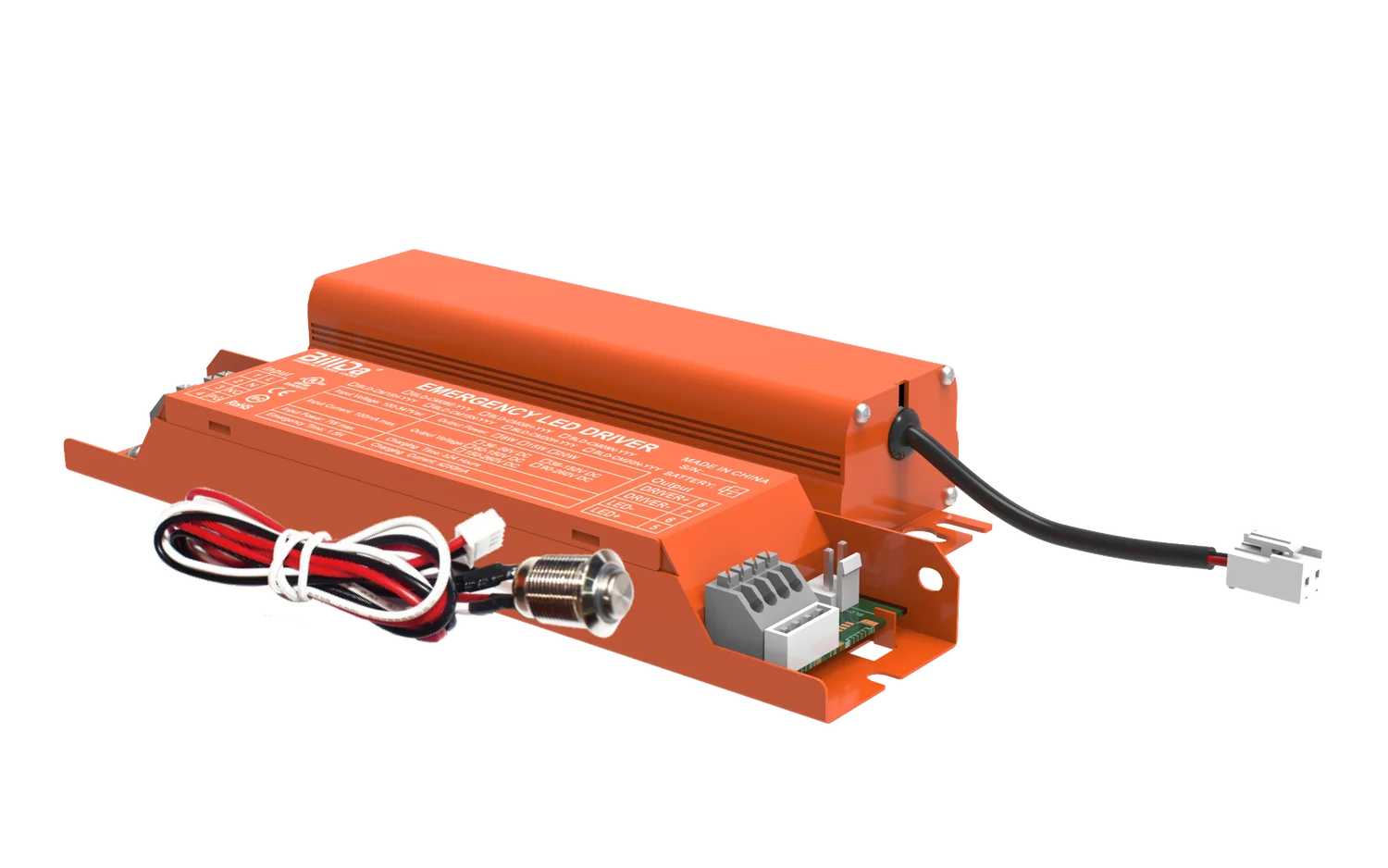

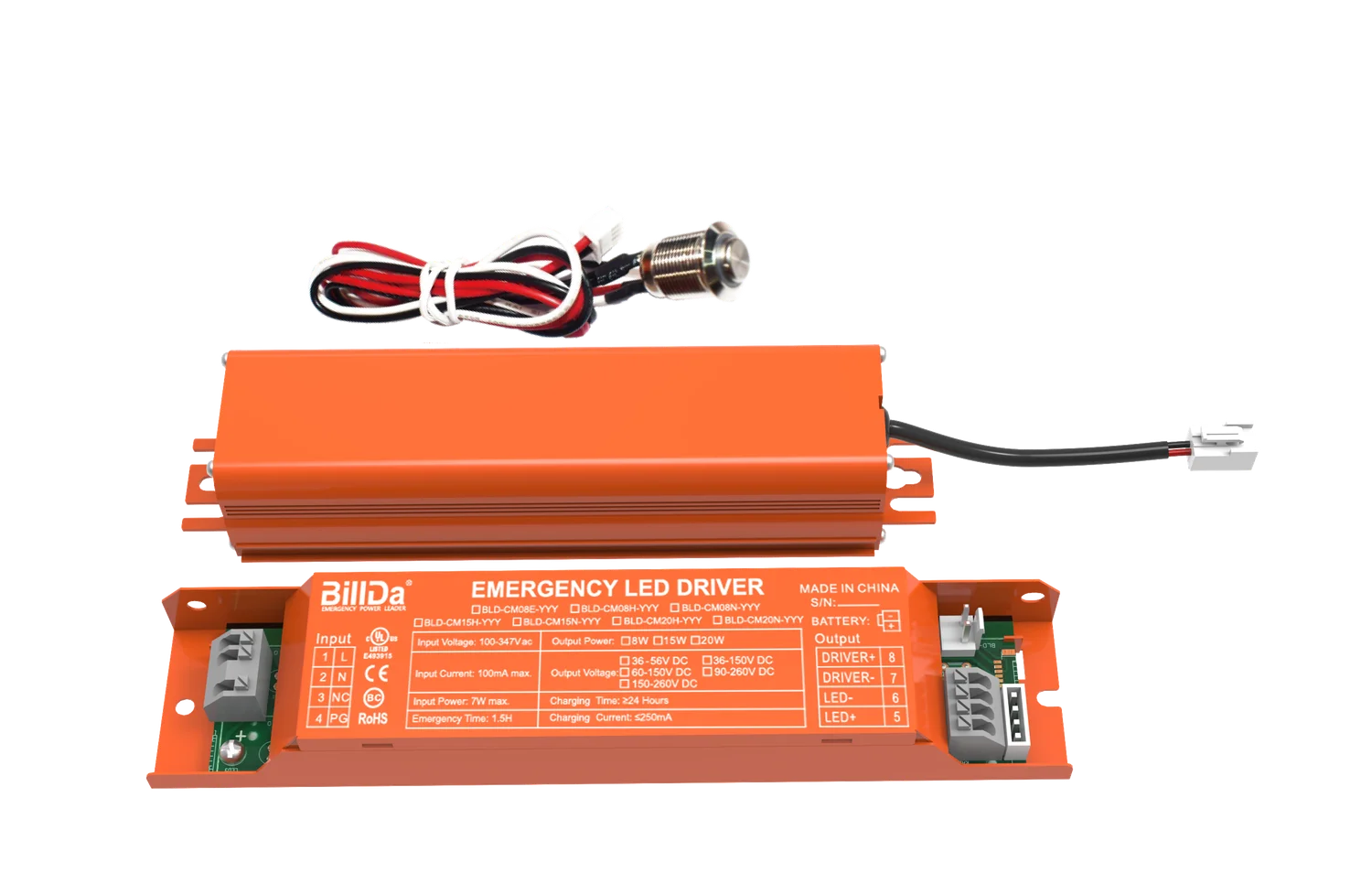

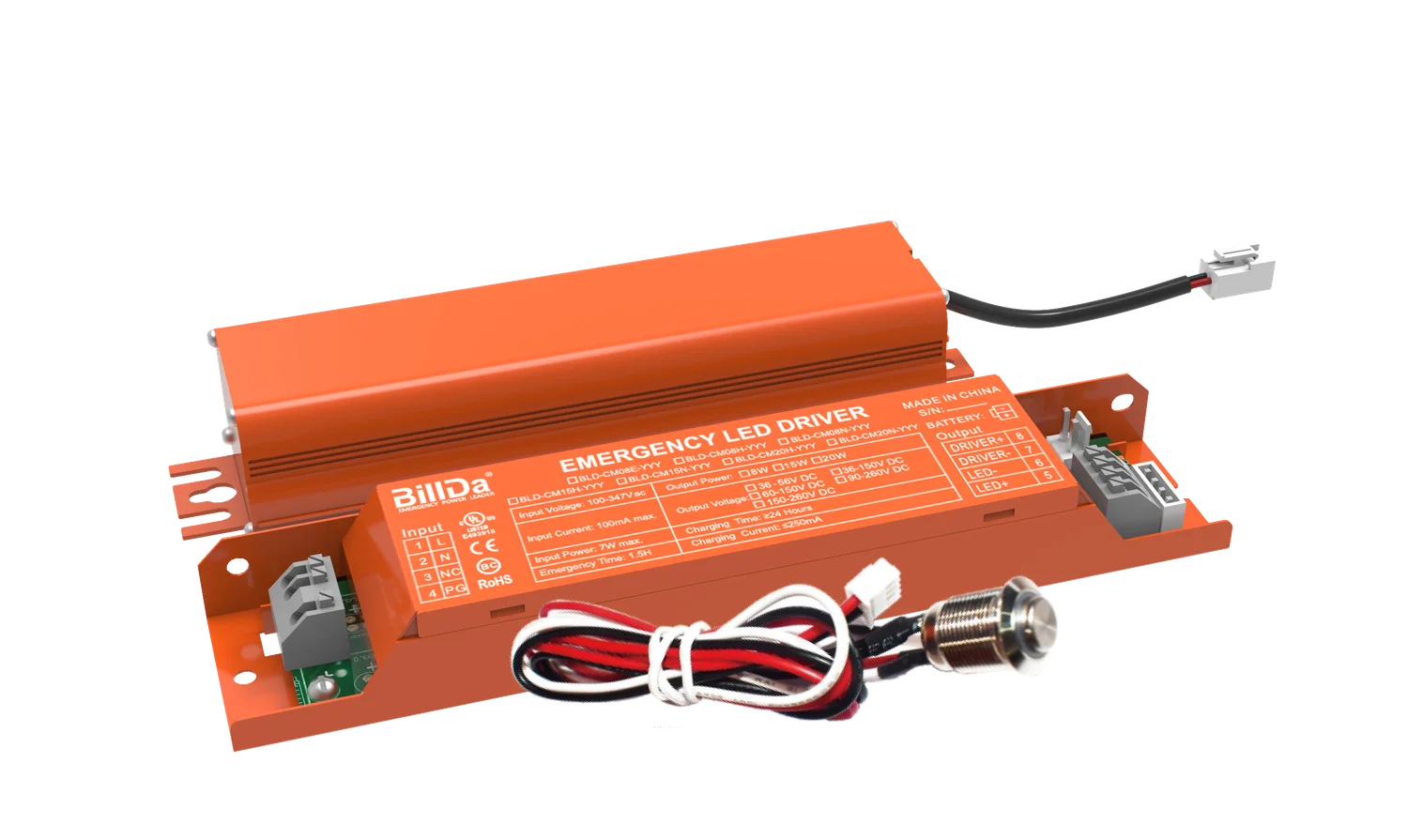

Emergency LED Driver with universal input voltage of 100-347Vac, output voltage of 36-56Vdc, and 8W output power. Features an external LiFePO4 battery with overcharge and over-discharge protection.
Key Features and Benefits
- Meets most safety standards for lighting
- Standard CSA C22.2 NO.141, UL924
- External LiFePO4 battery
- Battery protections: over-charge protection, over-discharge protection
- Indicator shows a variety of working modes
- The batteries meet 500 cycles of standard charge and discharge
- RoHS compliant
- UL listed for US & Canada
Specifications
- Universal Input Voltage: 100-347Vac, 50/60Hz
- AC Input Current: 100mA max.
- Input Power Rating: 7.0W max.
- Emergency Time: 1.5H
- Battery Charging Current: 250mA
- Charging Time: 24Hours
- Operating Temperature: 5°C to +60°C (41°F to 140°F)
- 5 Year limited warranty
Common Uses
Suitable for strip fixtures, vapor tight fixtures, and wall packs.
