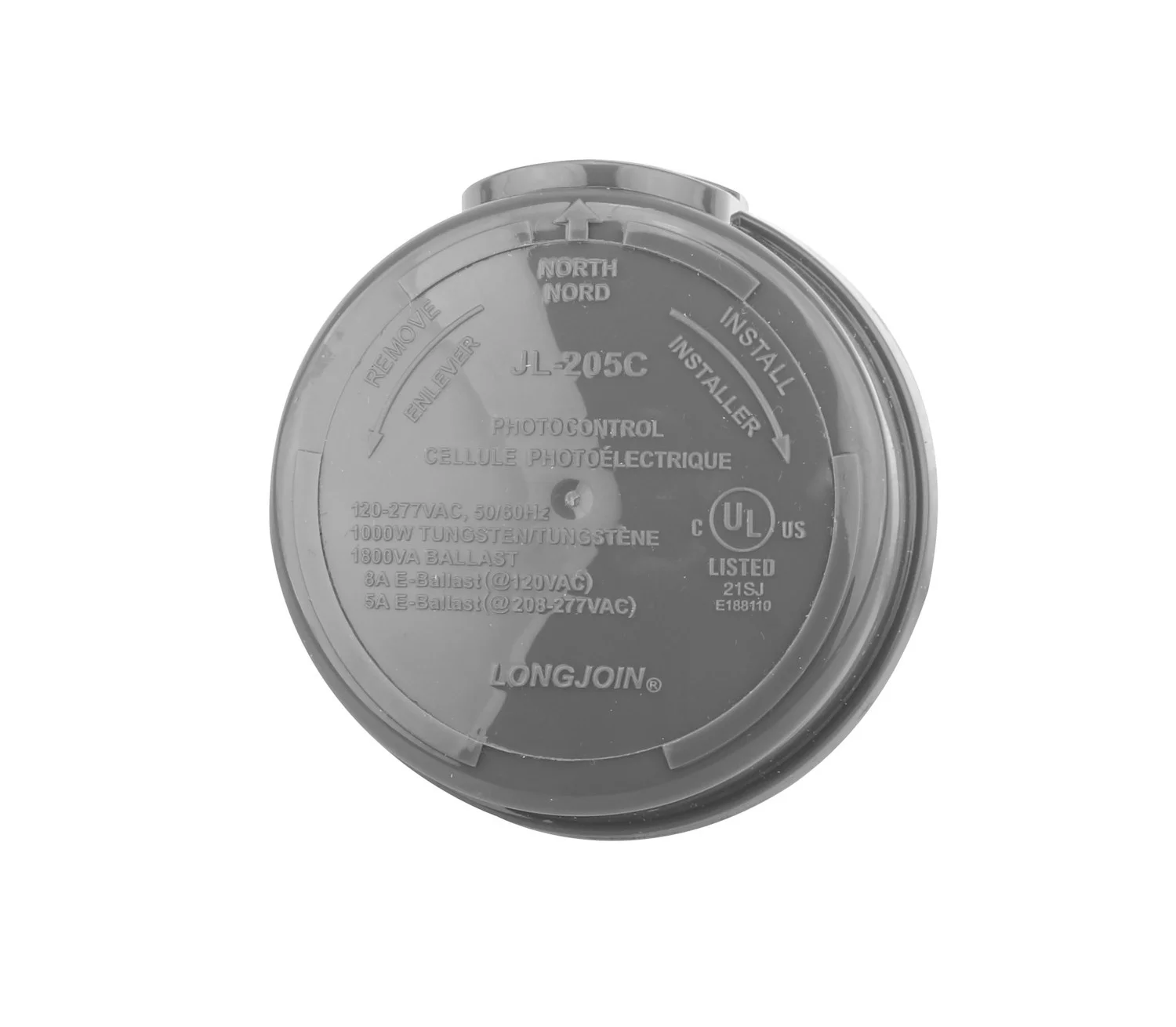

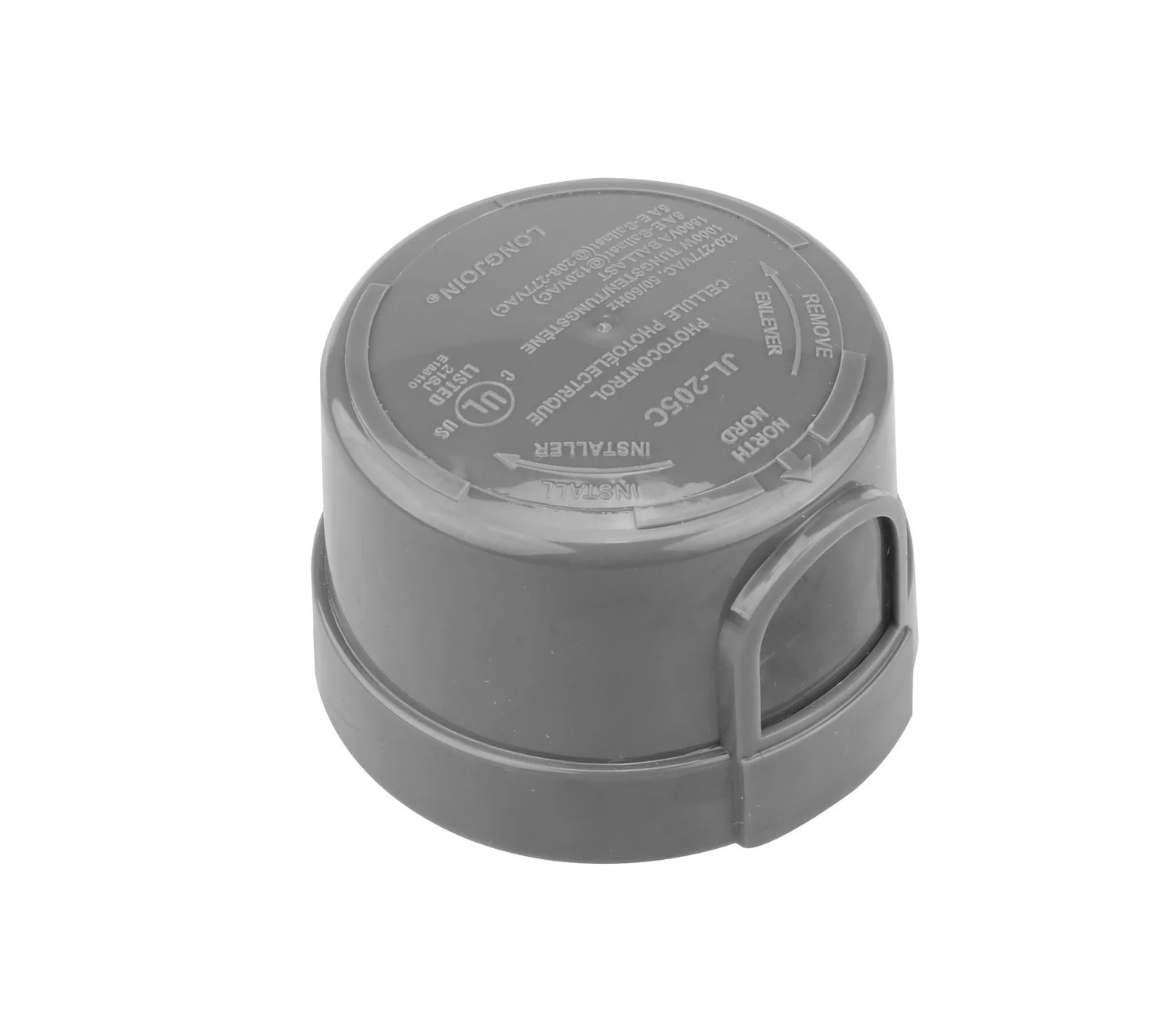

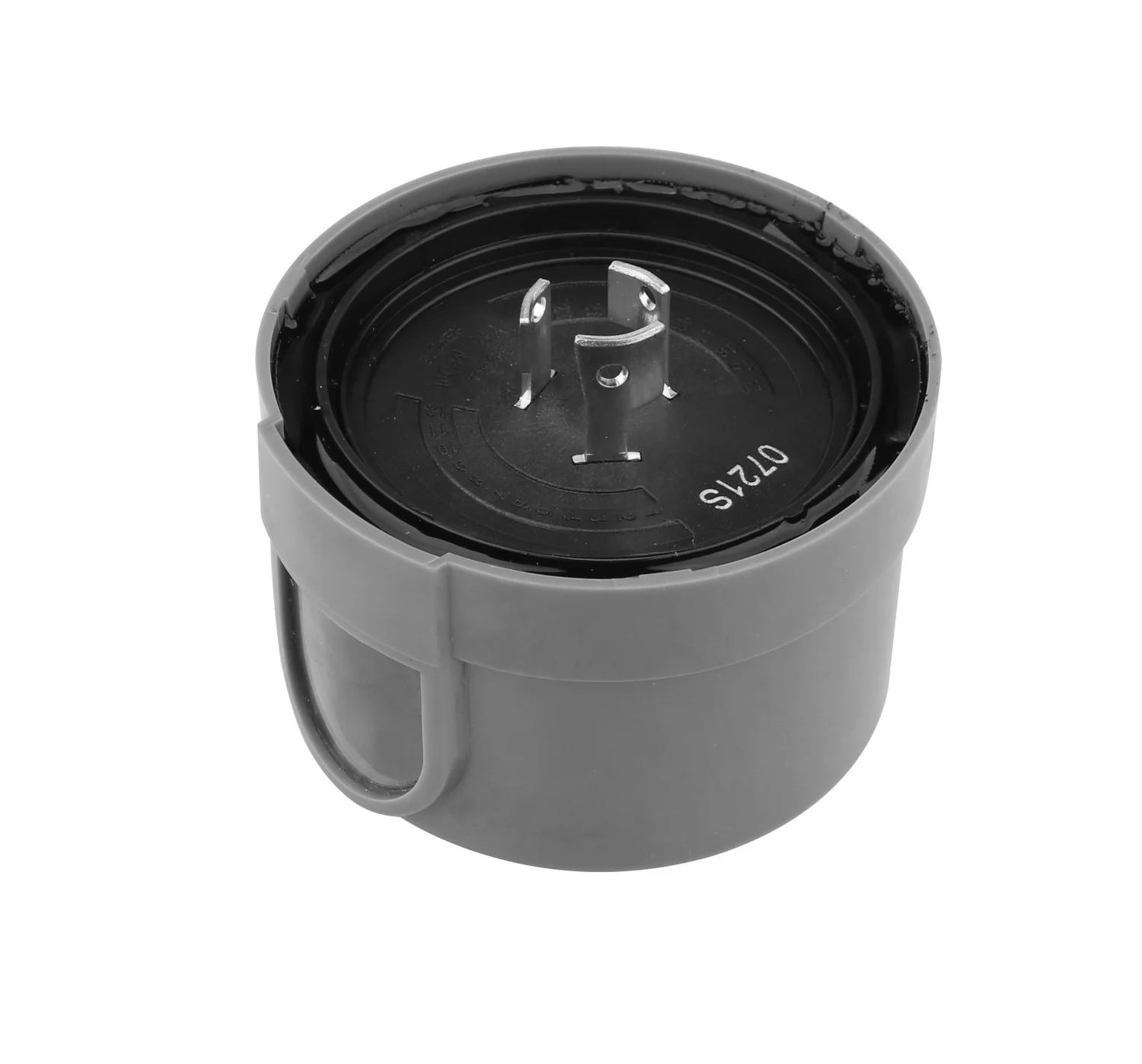

The Eiko JL-205C is a reliable 3-pin NEMA twist-lock on/off photocell, designed to automate outdoor lighting by sensing ambient light levels. This model is part of Eiko’s trusted JL series, known for durability and consistent performance in demanding environments.
Key Features and Benefits
- Automatically turns lights on at 6 Lx and off at 50 Lx for energy savings
- Wide input voltage range of 120-277V for versatile installation
- IP67 rated for superior protection against dust and water
- ANSI C136.10-2010 and UL certified for safety and reliability
- Operates in extreme temperatures from -40°F to 158°F
- 2-year warranty for peace of mind
Specifications
- Input Voltage: 120-277V, 50/60Hz
- Max Current: 5A
- Power Restriction: load must be >120W
- On Level: 6 Lx
- Off Level: 50 Lx
- Ambient Temperature: -40°F to 158°F (-40°C to 70°C)
- IP Rating: IP67
- Certifications: ANSI C136.10-2010, UL Certified (US & Canada)
Common Uses
Perfect for street lights, parking lots, area lighting, and other outdoor lighting applications that require automatic dusk-to-dawn operation.
