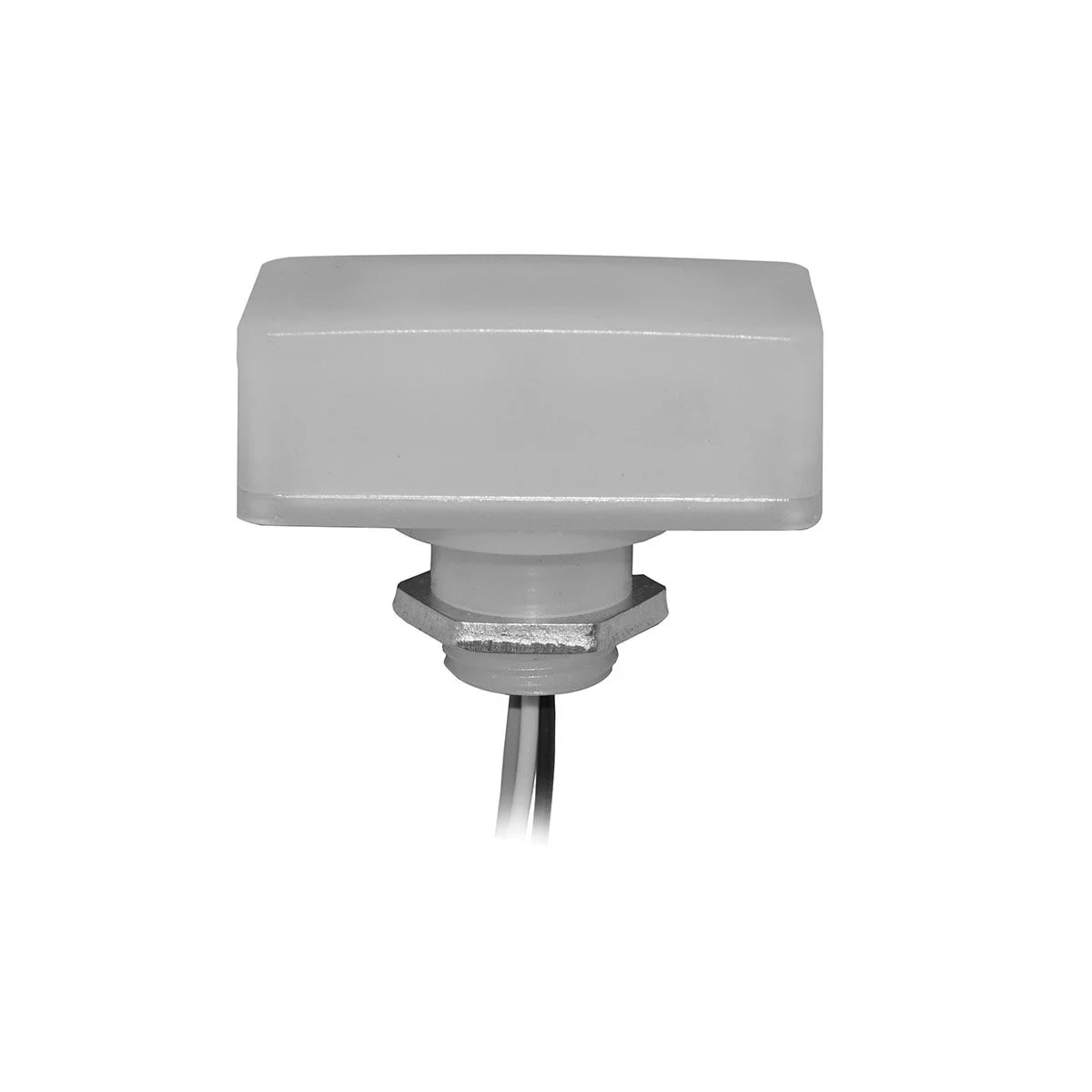

Low Voltage Microwave Bi-level Sensor designed for efficient lighting control with 12V-24V DC power supply and 0-10V dim control output.
Key Features and Benefits
- Low voltage operation with 12V-24V DC power supply.
- 0-10V dim control output for precise lighting adjustments.
- Maximum detection radius of 26ft and 360-degree coverage angle.
- Suitable for high mounting heights up to 40ft.
- IP65 rated for protection against dust and water.
Specifications
- Power Supply: 12V-24V DC
- Dim Control Output: 0-10V, max 25mA sinking current
- Detection Radius/Angle: Max 26ft/360 degrees
- Mounting Height: Max 40ft
- IP Rating: IP65
Common Uses
Ideal for use in commercial and industrial settings where energy-efficient lighting control is needed, such as warehouses, large retail spaces, and outdoor areas.
