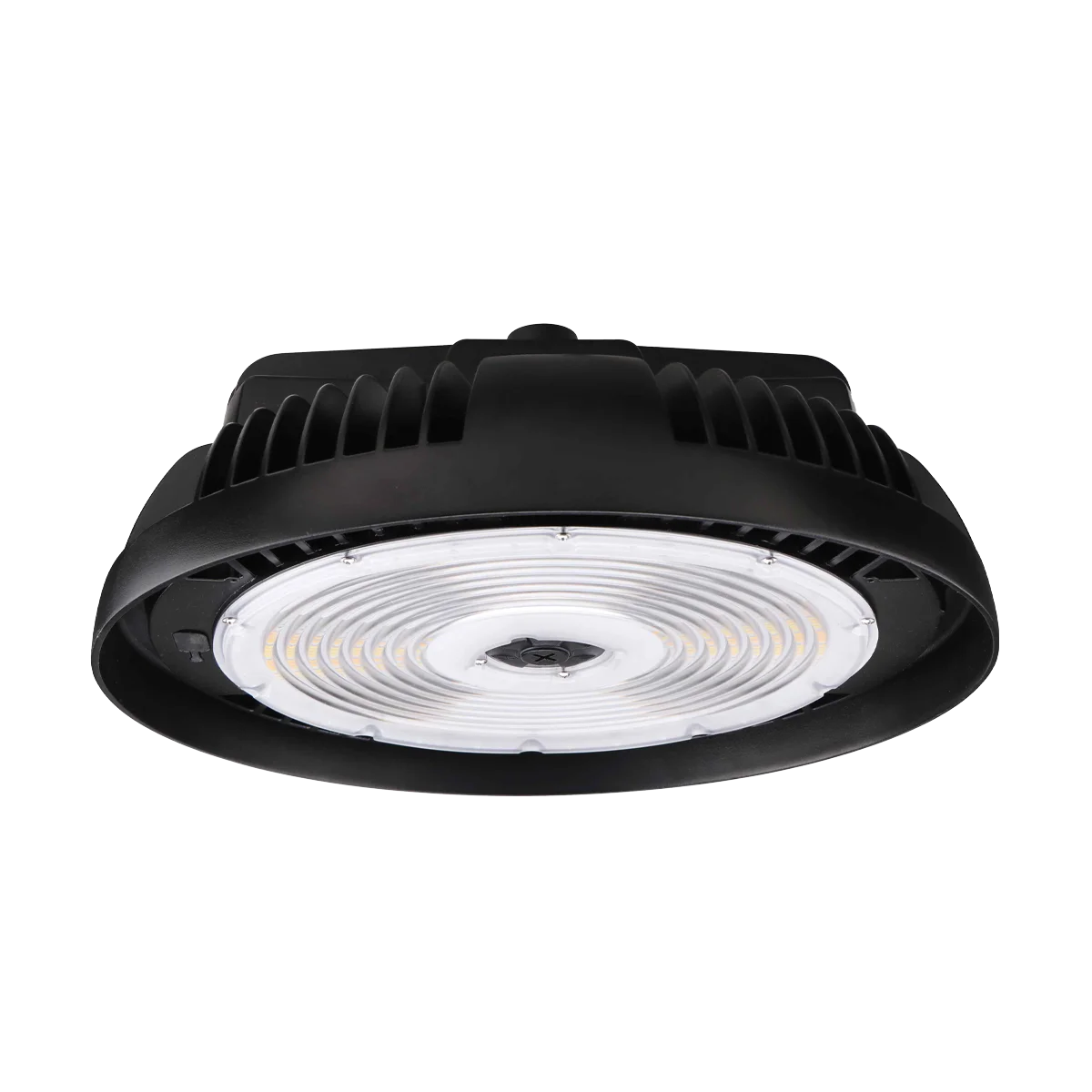

The EiKO HBX3 Premium Round High Bay with PowerSet and FieldCCeT is a versatile LED fixture designed for demanding commercial and industrial environments. This model features selectable wattages (240/220/200/180W) and field-selectable color temperatures (4000K or 5000K), delivering up to 38,400 lumens with high efficacy and robust construction. The high temp driver option ensures reliable performance in elevated ambient temperatures, making it ideal for challenging spaces.
Key Features and Benefits

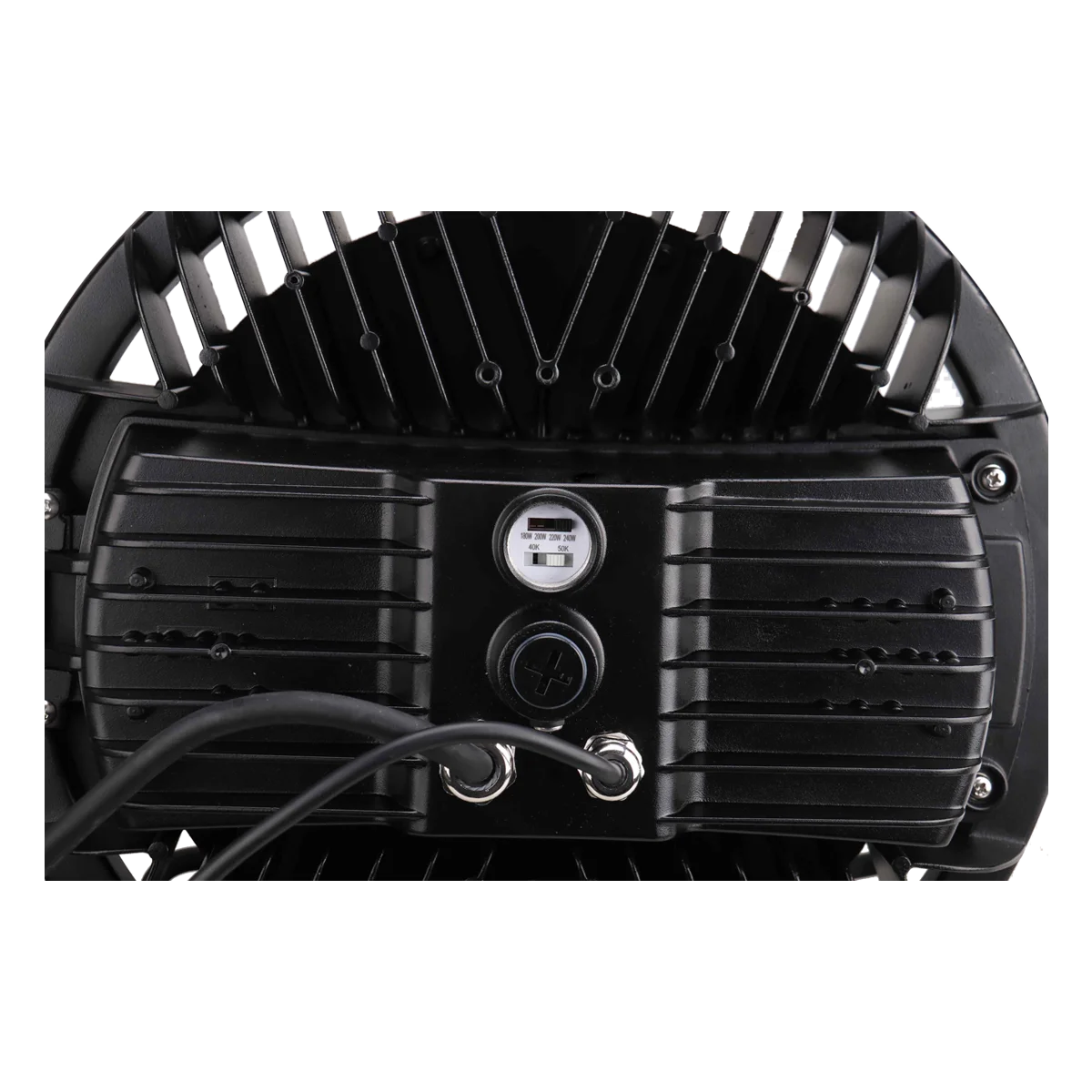

- PowerSet technology allows easy field selection of wattage for tailored light output
- FieldCCeT enables quick switching between 4000K and 5000K color temperatures
- High efficacy up to 160 lm/W for superior energy savings
- Controls ready with screw-in sensor receptacle for easy integration
- IP65 and NEMA 4X rated for wet and harsh environments
- High temp driver modification supports operation up to 149°F (65°C)
- Includes 10ft power/dimming cord and mounting hook for easy installation
- UL, DLC Premium, RoHS, FCC, ICES-005, and NSF certifications
- Long 100,000-hour L70 rated lifespan reduces maintenance
Specifications
- Lumen Output: 38,400|35,200|32,000|28,800 lm
- Wattage: 240W|220W|200W|180W
- Voltage: 120-347V
- Color Temperature: 4000K|5000K
- CRI: >80
- Efficacy: Up to 160 lm/W
- Operating Temp: -40°F to 149°F (-40°C to 65°C) with high temp driver
- Beam Angle: 110°
- Finish: Black
- Dimensions: 15.3″ (390mm) diameter
Common Uses
Perfect for warehouses, manufacturing plants, distribution centers, gymnasiums, grocery stores, indoor recreational facilities, cold storage, big box retail, and service repair centers.
