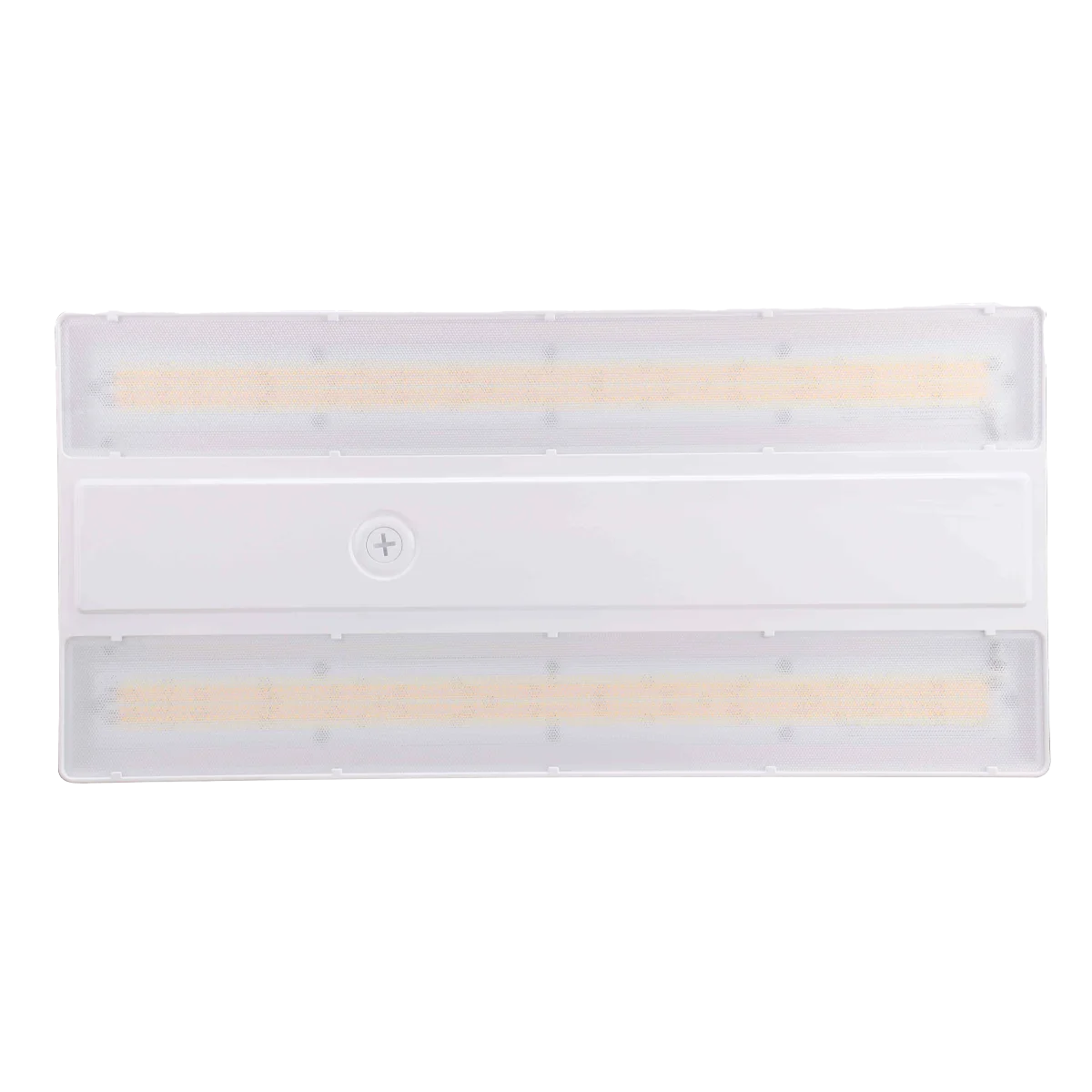

The EiKO LH1 Linear High Bay is a high-performance fixture series designed for demanding commercial and industrial interiors. This PowerSet and FieldCCeT configuration gives installers flexible output and color tuning in one SKU, helping simplify stocking and project changes. As part of EiKO’s controls-ready high bay lineup, it supports efficient upgrades for large facilities.
Key Features and Benefits
- PowerSet output selection (240/220/200/180W) enables on-site light level tuning for different ceiling heights and tasks
- Field-selectable 4000K or 5000K CCT supports both neutral and daylight-style environments
- Controls-ready screw-in receptacle allows fast sensor or networked control integration without extra wiring
- Frosted polycarbonate lens helps reduce glare while maintaining strong illumination
- Durable die-cast aluminum housing with molded heatsink fins improves thermal performance and longevity
- DLC Premium qualified with a 5-year limited warranty for energy rebate potential and long-term confidence
Specifications
- Lumen package: 36,000/33,000/30,000/27,000 lm (based on selected wattage)
- Efficacy: 150 lm/W
- Input voltage: 120-277V
- CCT options: 4000K/5000K (field selectable)
- CRI: >80
- Beam angle: 90°
- Dimming: 0-10V dim-to-off
- Estimated life: L70 100,000 hours
- Power factor: >0.9; THD: <20%
- Surge protection: up to 6kV
- Ambient operating temperature: -40°F to 122°F (-40°C to 50°C)
- Fixture includes V-hook and aircraft cables; suggested mounting heights up to 35′
- Dimensions (90-240W housing): 23″ L x 11″ W x 2-3/16″ H; weight: 6.6 lbs
Common Uses
Ideal for warehouses, manufacturing plants, distribution centers, gymnasiums, grocery stores, big box retail, service repair centers, indoor recreational facilities, and cold storage applications.
